X, Y, Z Working Area: 1200*1200*650mm Optional Working Area: 1300*1300*650mm Optional Working Area: 2400*1200*650mm Optional Working Area: 2500*1300*650mm Optional Working Area: 3000*1500*650mm The max feeding height can be 2000 mm; it can be customized according to your needs Operation System: Italy Osai Open Smart 5-axis controller, with RTCP, with monitor, keyboard, mouse, and handwheel –…
Read More

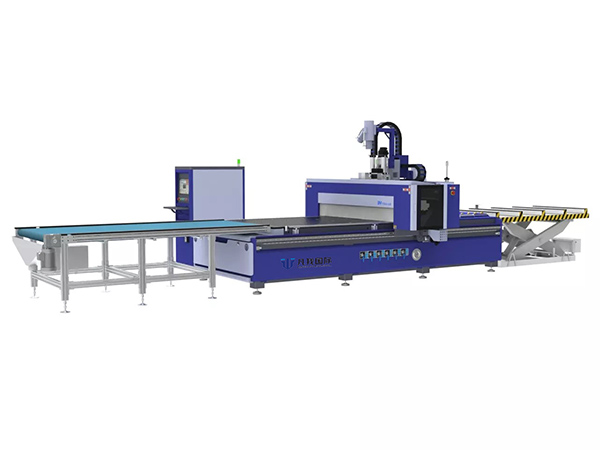

FW working stroke/processing size 1200x2800mm, option:1600*3100mm; 2100*3100mm; 2100*4000mm, etc Table Structure Full-page vacuum working table Bed frame Machining center processing bed (heavy-duty bed) Spindle power 9KW ATC air cooling spindle, ISO30, ER32 Drive mode Leadshine 1.5KW servo motor and driver option: Japan Yaskawa 850W servo motors and drivers Spindle speed 1-24000 r/m Transmission mode XY…
Read More
NO. Description Parameter 1 XYZ working area 2000*3000*200mm, 6*10ft 2 Optional working area 1300*2500*200mm, 4*8 ft 1500*3000*200mm, 5*10ft 2000*4000*200mm, 6*13ft 3 Guide Original TAIWAN HIWIN 4 Z Structure Original TAIWAN TBI Ball Screw transmission 5 Traveling Positioning Accuracy ±0.02/300 mm 6 Repositioning Positioning Accuracy ±0.02 7 Table Aluminum profile table/vacuum table plus T-slot 8 Vacuum…
Read More
Specification Parameters Size Working area 1300*2500*200mm, 4*8ft 1500*3000*200mm, 5*10ft 2000*3000*200mm, 6*10ft 2000*4000*200mm, 6*13ft 2000*6000*200mm, 6*20ft Table Vacuum table plus 5.5 kW air vacuum pump Weight 950 kg Accuracy Positional accuracy ±0.03/300 mm Repeatability ±0.03 Spindle motor Power 5.5 KW water-cooling spindle NO. of revolution 24000 rpm Motor and drivers Servo motors and drivers Traverse system…
Read More
Description Parameter Model FW-K9 X, Y, Z Working Area 1220*2440*200mm Repositioning resolution 0.02 mm System Resolution 0.0025 mm Guide Taiwan linear 25mm square rail Table Surface T-slot and vacuum working table Structure 10-12mm industrial-class square tube strong structure XYZ Structure Germany Helical rack gear for X and Y axis, Taiwan TBI ball screw for Z…
Read More

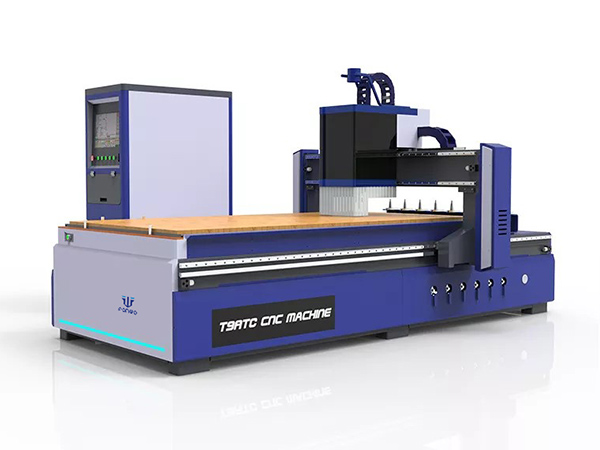

Model T9ATC-1325 T9 ATC-1530 T9ATC-2030 T9ATC-2040 T9ATC-2050 Customization SIZE 350*205*196cm 400*225*196cm 400*226*196cm 400*226*196cm 400*226*196 400*226*196cm Table Structure Full-page vacuum working table/vacuum table + T-slot Working Area 1300×2500 mm, option: 1600*3100mm; 2100*3100mm; 2100*4000mm, etc. Controller Taiwan SYNTEC/LNC controller Spindle 9KW ATC air cooling spindle, ISO30, ER32 Motor or drive Leadshine 750W servo motor and driver option:…
Read More
Advantage 1) This machine is an economic one; it is suitable for small businesses and small shops, but it also can meet your engraving and cutting requirements. The precision and speed are nice. 2) The machine bed is constructed by an aluminum gantry and a thick welded square tube. It can ensure the machine a…
Read More
Description Parameter Model T3 X, Y, Z Working Area 1600*3100*300mm Repositioning resolution 0.02 mm System LNCMW2600 Guide Taiwan linear 25mm square rail Table Surface T-slot and vacuum working table Structure heavy-duty structure XYZ Structure Germany Helical rack gear for X and Y axis, Taiwan TBI ball screw for Z travel; Max. Working Speed 30000 m/min…
Read More
Model FW T11-1325 ATC CNC Working area 1300*2500*200mm (can be customized) Control System LNC control system Spindle 9KW ATC air cooling spindle (HSD is optional) Spindle speed 1-24000 RPM Motor and Driver 750w Leadshine servo motor and driver Inverter fueling an 11 kW inverter Table surface Vacuum table with T-slot Transmission X,Y Axis: Helical rack…
