| Model | T9ATC-1325 | T9 ATC-1530 | T9ATC-2030 | T9ATC-2040 | T9ATC-2050 | Customization |
| SIZE | 350*205*196cm | 400*225*196cm | 400*226*196cm | 400*226*196cm | 400*226*196 | 400*226*196cm |
| Table Structure | Full-page vacuum working table/vacuum table + T-slot | |||||
| Working Area | 1300×2500 mm, option: 16 00*3100mm; 2100*3100mm; 2100*4000mm, etc. | |||||
| Controller | Taiwan SYNTEC/LNC controller | |||||
| Spindle | 9KW ATC air cooling spindle, ISO30, ER32 | |||||
| Motor or drive | Leadshine 750W servo motor and driver option: Japan Yaskawa 850W servo motors and drivers | |||||
| Guide rail | Taiwan linear guide 30/25/25mm on XYZ axis | |||||
| Working voltage | 220V 1PH/3PH 50HZ/60HZ; 380V 3PH 50HZ/ 60HZ | |||||
| Traveling speed | 65/65/20 m/min | |||||
| Working speed | 0-25 m/min | |||||

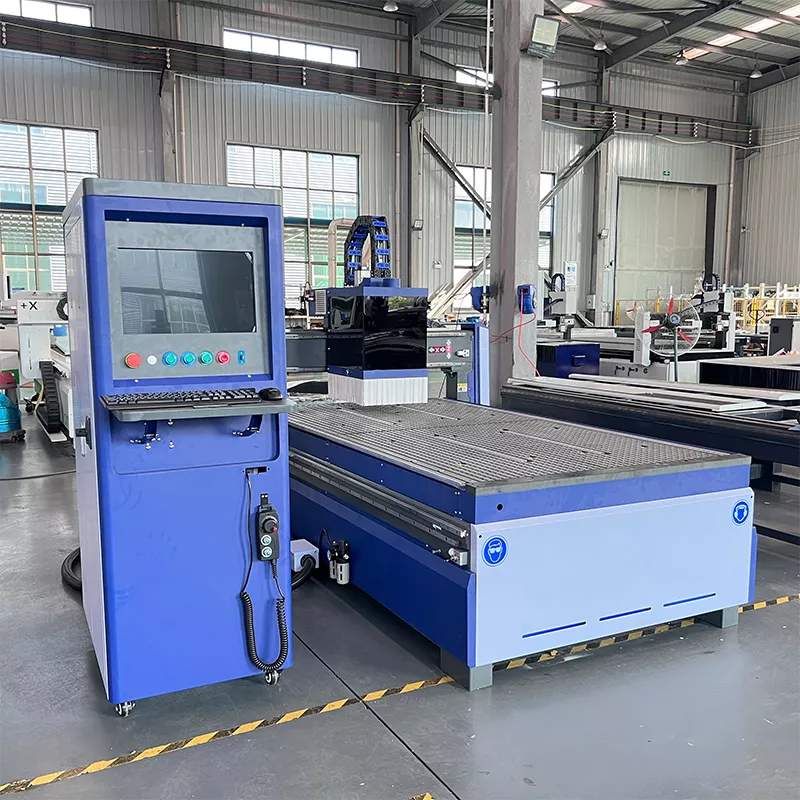

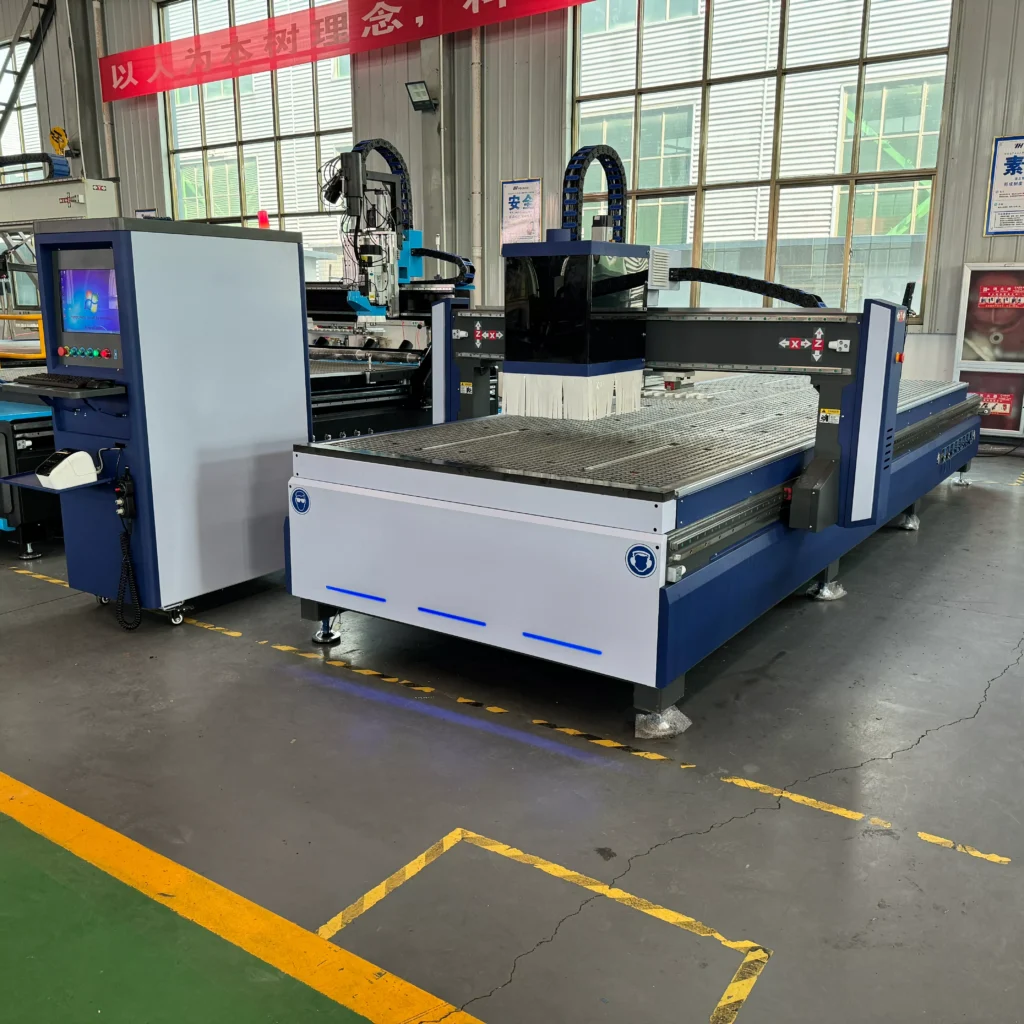

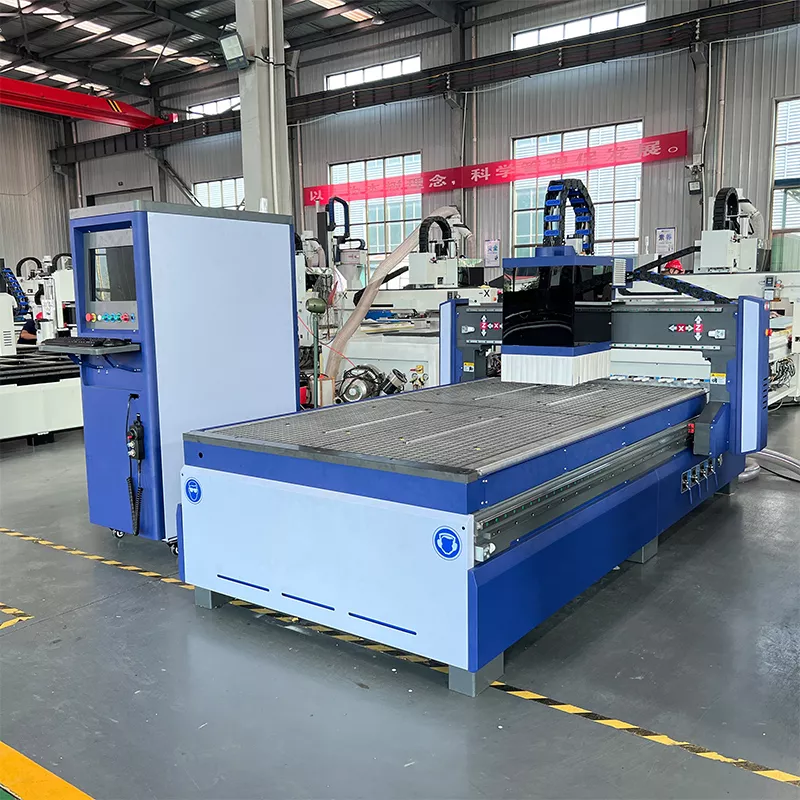

This is our T9 ATC CNC router; the size can be customized.
You can choose your own color; all configurations can be customized. The table can be an aluminum T-slot table or a vacuum T-slot table. If you don’t know how to choose, only tell us your needs, and our sales team will recommend you a suitable machine according to your needs.
Air-Cooled Spindle
The electric spindle of the CNC router machine is a new transmission structure that integrates the machine tool spindle and the motor. The electric spindle is divided into air-cooled and water-cooled spindles according to the cooling method. The noise of the water-cooled spindle is much smaller than that of the air-cooled spindle, and the precision of the water-cooled spindle is higher. We first recommend choosing an HQD water-cooled or air-cooled spindle.
Working Table
The CNC wood router table can be made of aluminum profile or vacuum adsorption table. The vacuum adsorption table can be divided into a whole plate vacuum adsorption table and a suction clamp (i.e., vacuum adsorption with a built-in T-slot). The aluminum profile with T-slot is used to directly fix the workpiece to be processed on the table.
HIWIN Rails
Youhaocnc CNC routers use HWIN rails. Our company has rail brands from low-end to high-end, and you can choose the rail brand according to customer needs.
Toolsensor
Wood routers can add automatic tool setting blocks. It depends on the customer’s needs. The main function is to adjust the tool adjustment time after a tool change.
Linear-type tool change
The automatic tool-changing technology of the CNC router machine needs to realize the automatic replacement of different tools through the tool library. The advantages of automatic tool changing of engraving machines are to effectively improve production efficiency, be more accurate and precise, and save labor.
