High-Precision Four-axis CNC Wood Router Machine with 180° Swing Head
High-Precision Four-axis CNC Wood Router Machine with 180° Swing Head
High-Precision Four-axis CNC Wood Router Machine with 180° Swing Head
ModelT94A-1325T94A-1530T94A-2030T94A-2130T94A-2040T94A-2050
Table StructureAluminum + T-Slot Working Table
Working Area1300*2500*200mm1500*3000*200mm2000*3000*200mm2100*3000*200mm2000*4000*200mm2000*5000*200mm
ControllerTAIWAN LNC MW2600 controller system
SpindleHQD 9 kW Air-cooling Spindle
Motor and driverLeadshine 1500W servo motor and driver, A-axis leadshine 750W servo motor
Guide railHIWIN 25/25/25mm
Working voltage220V/1PH/50HZ or 380V/3PH/50HZ
Traveling speed60/60/20 m/min
Working speed0-25 m/min Model
T94A-1325
T94A-1530
T94A-2030
T94A-2130
T94A-2040
T94A-2050
Table Structure
Aluminum + T-Slot Working Table
Working Area
1300*2500*200mm
1500*3000*200mm
2000*3000*200mm
2100*3000*200mm
2000*4000*200mm
2000*5000*200mm
Controller
TAIWAN LNC MW2600 controller system
Spindle
HQD 9 kW Air-cooling Spindle
Motor and driver
Leadshine 1500W servo motor and driver, A-axis leadshine 750W servo motor
Guide rail
HIWIN 25/25/25mm
Working voltage
220V/1PH/50HZ or 380V/3PH/50HZ
Traveling speed
60/60/20 m/min
Working speed
0-25 m/min
High-Precision Four-axis CNC Wood Router Machine with 180° Swing Head

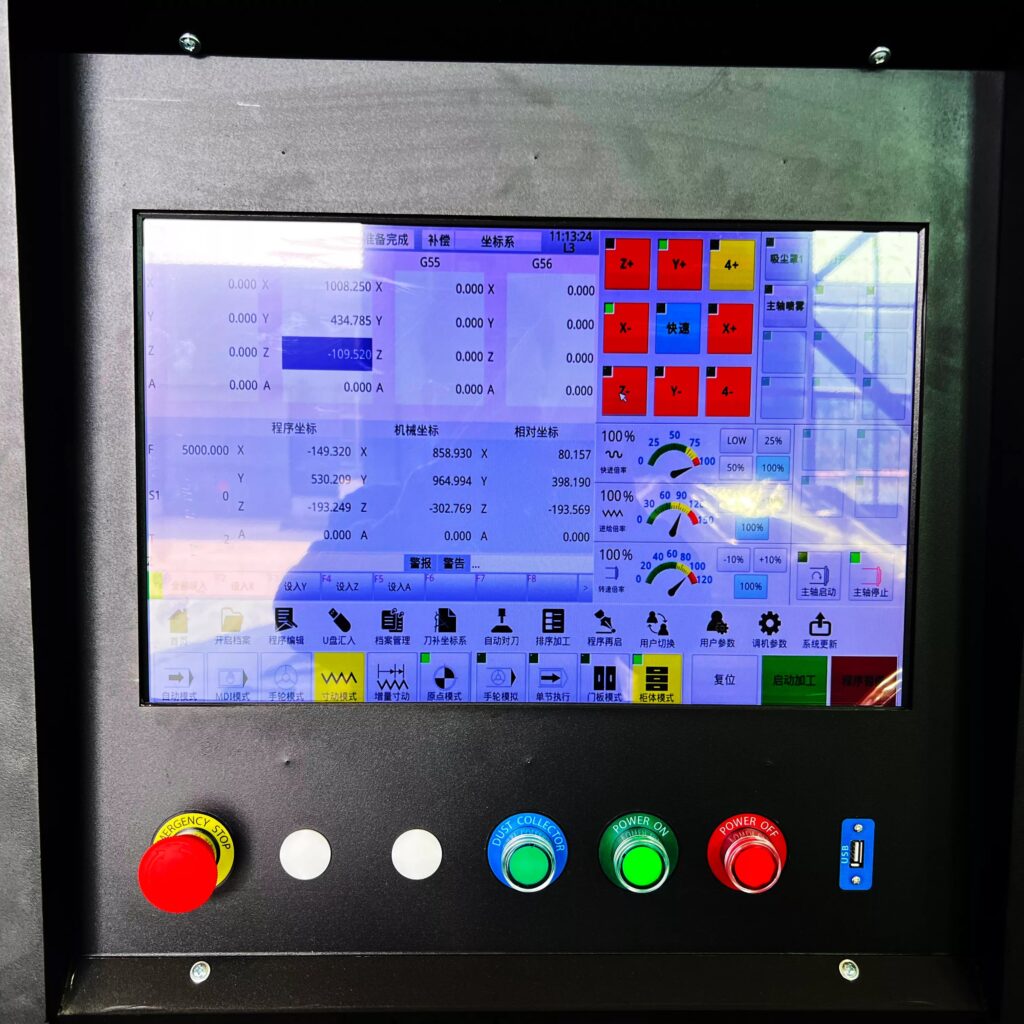

Suitable for four-axis engraving machines, meeting the needs of complex surface processing, with a friendly interface, easy to use, suitable for factory operators to quickly master, with powerful multi-axis control capabilities, good scalability, and easy operation, and very suitable for scenes requiring high-precision and high-efficiency processing.

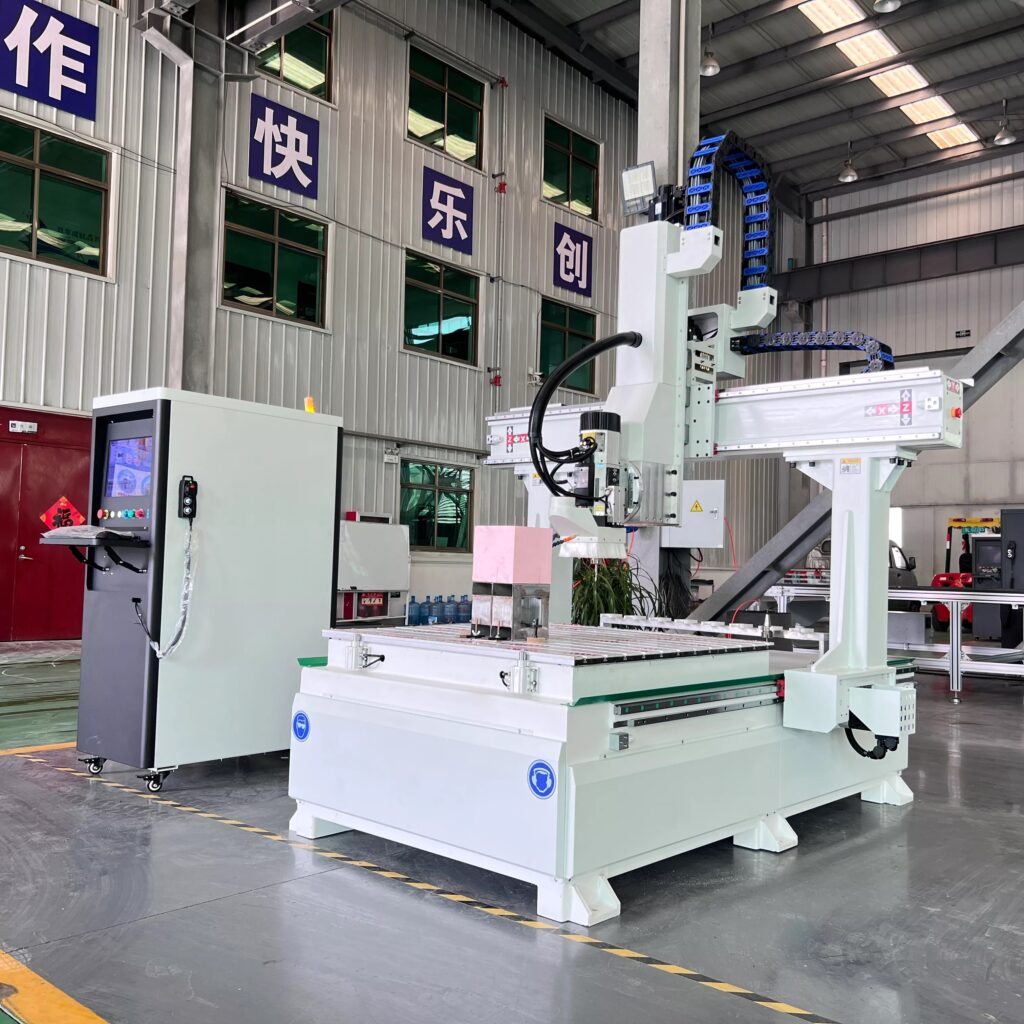

The 1212 size (1200×1200 mm) is suitable for processing small and medium-sized workpieces. It occupies a small area and can realize the processing of complex three-dimensional workpieces such as cylinders, solids, and reliefs to meet diverse processing needs. It can be equipped with an automatic tool-changing spindle, vacuum adsorption table, cooling system, dust prevention device, etc. to improve processing efficiency and safety.

High-Precision Four-axis CNC Wood Router Machine with 180° Swing Head

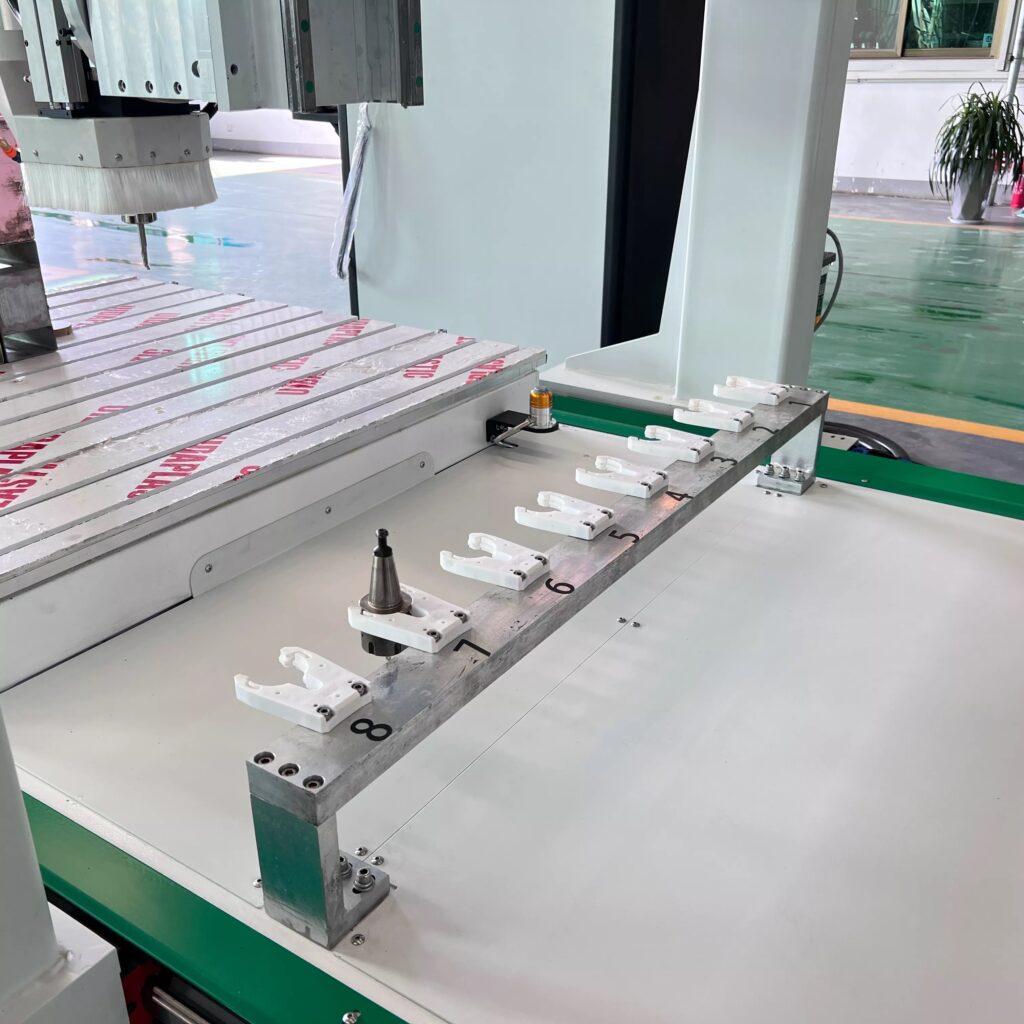

The tool magazine is installed on the back of the 4-axis CNC router machine, which does not occupy the processing area space, which is conducive to the optimization of the overall layout of the equipment. It is suitable for processing workshops with limited space. 8 tool positions can meet the needs of most small and medium-sized processing tasks. It is suitable for woodworking, advertising, molds, and other industries. The number can be modified according to customer needs

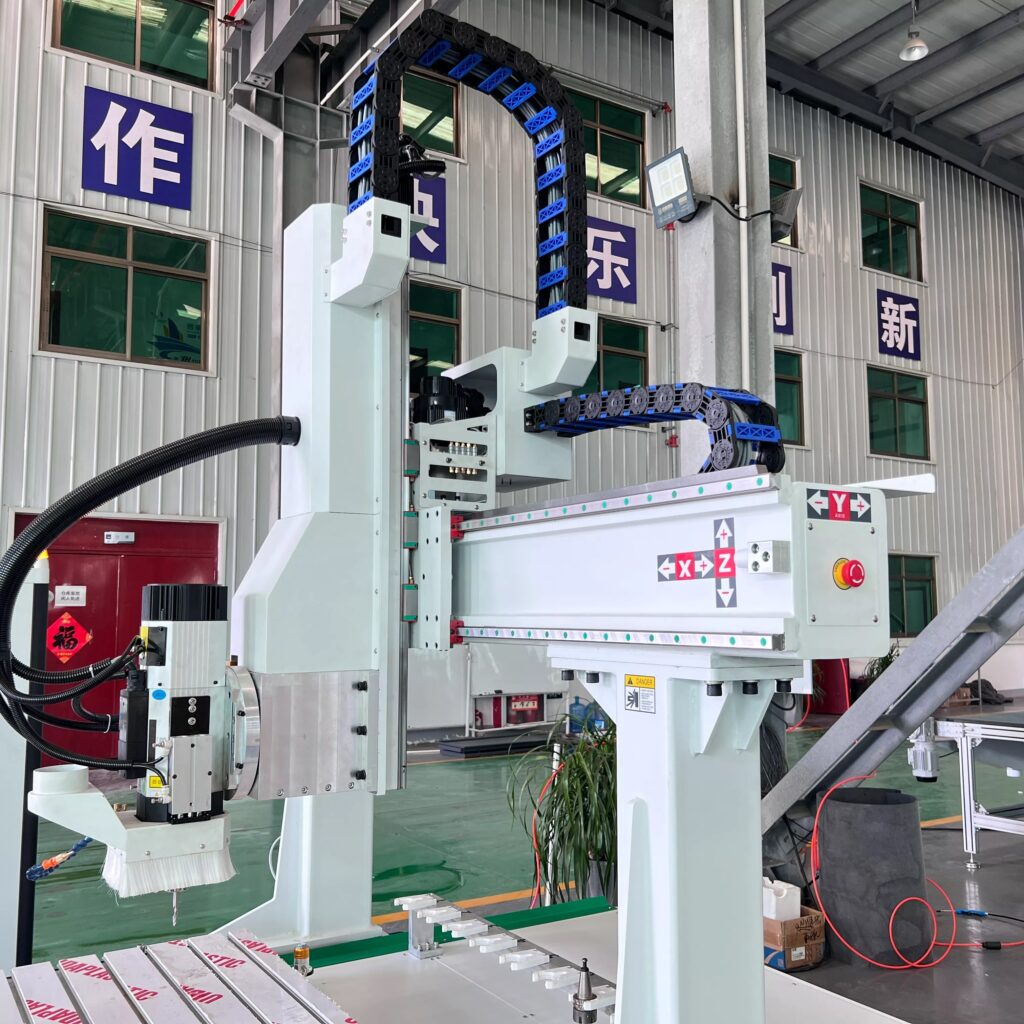

The spindle can be tilted at multiple angles, which is suitable for processing complex structures such as sides, bevels, chamfers, curved surfaces, etc. The four-axis engraving machine with a swing head range of ±90° has extremely high processing flexibility and precision and is suitable for the processing needs of complex three-dimensional workpieces. It is particularly suitable for scenes that require multi-angle and multi-faceted processing, such as handicrafts, molds, furniture, and other industries, and is one of the important configurations of high-end engraving equipment.

High-Precision Four-axis CNC Wood Router Machine with 180° Swing Head
High-Precision Four-axis CNC Wood Router Machine with 180° Swing Head

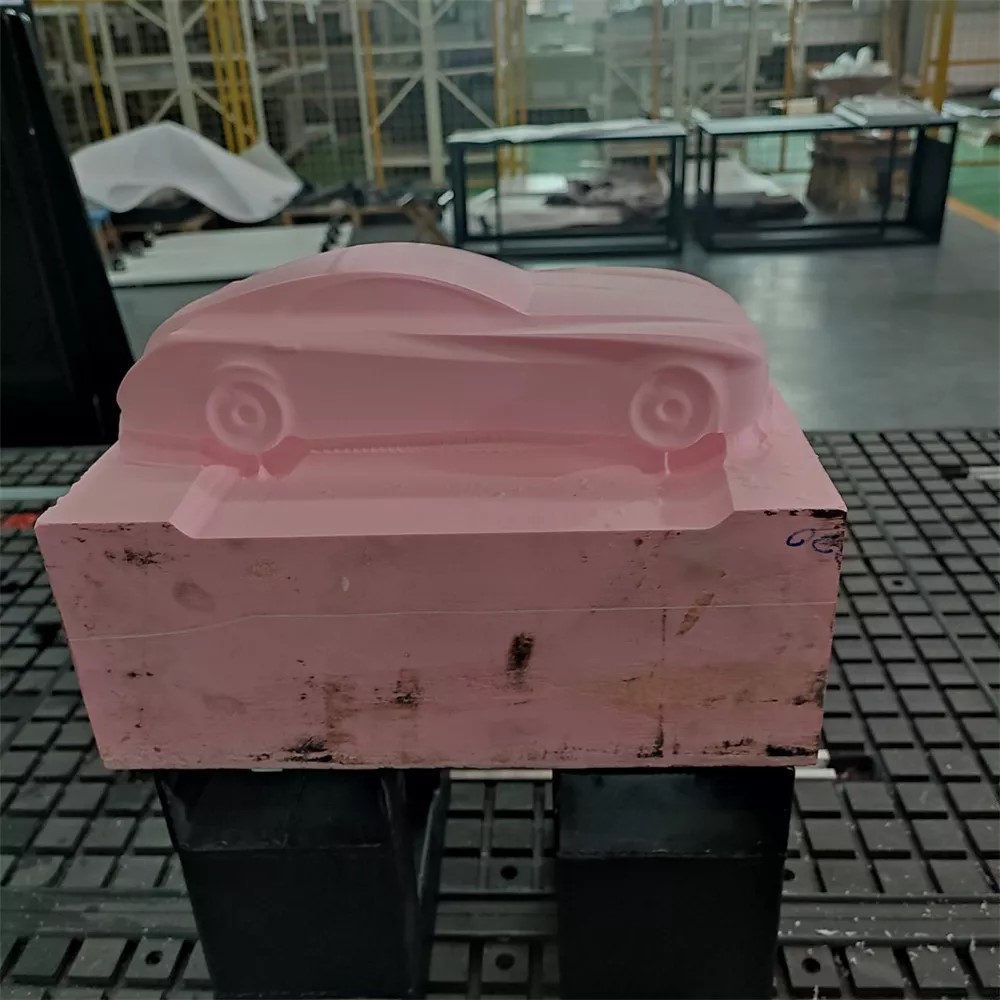

Applicable processing materials (in conjunction with a four-axis engraving machine):

Wood: solid wood, density board, plywood, bamboo, etc.

Plastic: acrylic, PVC, ABS, foam board, etc.

Metal: aluminum, copper, stainless steel (soft metal processing)

Stone: marble, artificial stone, ceramics

Composite materials: aluminum-plastic board
