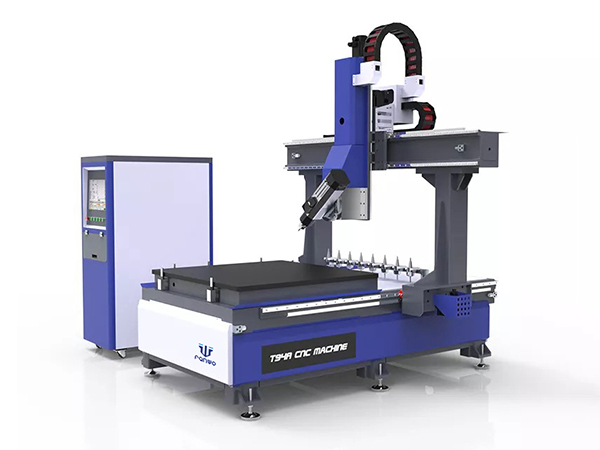

Model T94A-1325 T94A-1530 T94A-2030 T94A-2130 T94A-2040 T94A-2050 Table Structure Aluminum + T-Slot Working Table Working Area 1300*2500*200mm 1500*3000*200mm 2000*3000*200mm 2100*3000*200mm 2000*4000*200mm 2000*5000*200mm Controller TAIWAN LNC MW2600 controller system Spindle HQD 9 kW Air-cooling Spindle Motor and driver Leadshine 1500W servo motor and driver, A-axis leadshine 750W servo motor Guide rail HIWIN 25/25/25mm Working voltage 220V/1PH/50HZ…
Read More
NO. Description Parameter 1 XYZ working area 2000*3000*200mm, 6*10ft 2 Optional working area 1300*2500*200mm, 4*8 ft 1500*3000*200mm, 5*10ft 2000*4000*200mm, 6*13ft 3 Guide Original TAIWAN HIWIN 4 Z Structure Original TAIWAN TBI Ball Screw transmission 5 Traveling Positioning Accuracy ±0.02/300 mm 6 Repositioning Positioning Accuracy ±0.02 7 Table Aluminum profile table/vacuum table plus T-slot 8 Vacuum…
Read More
Product name metal milling mini cnc router machine 4040 for aluminum mold making X, Y, and Z Working Area 400x500x180 mm X, Y, and Z Structure Hiwin Rail Linear Guide and Ball Screw Z Structure Hiwin Rail Linear Guide and Ball Screw Table Surface T-slot Table Max. Power Consumption (Without Spindle) 1.0 kW Max. Rapid…
Read More

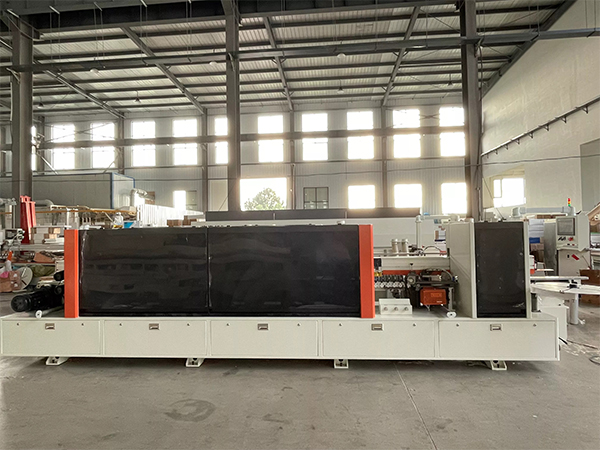

Number Model FW-506 1 Function Gluing and pressing →Endcutting→Fine Trimming→Scraping→Buffing 2 Panel width (min) 50 mm 3 Feeding speed 16 M/min 4 Workpiece thickness 10-60mm 5 Bandwidth 12-65mm 6 Band thickness 0.4-3mm 7 Pneumatic pressure 0.6 MPa 8 Machine size 4200*850*1500mm 9 power 10 KW 10 Machine weight 1000 KG 11 Touch Screen DELTA 12…
Read More

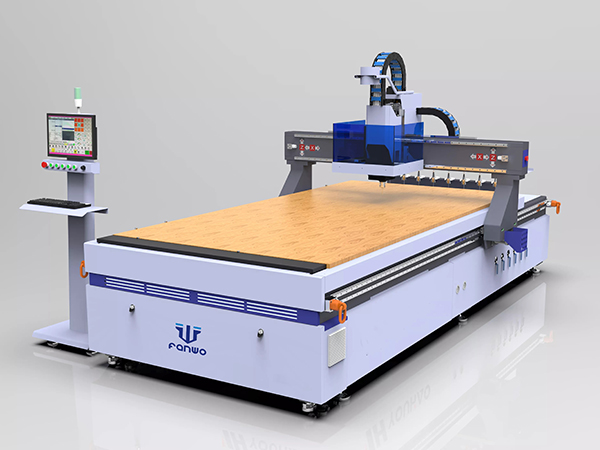

Specifications -Aluminum profile table with T slots (vacuum table) -1300*2500*200mm -Taiwan LNC MW2200 control system – HQD 9.0 kW ATC air cooling spindle -Fuling 11 KW Inverter -Leadshine 750W servo motor and driver -China Oubang Reducer – 8 pcs linear auto tool change -Golden bridge vacuum pump -Pop-up pins * 5 – Auto tool sensor…
Read More
Number Model YH-506 1 Function Gluing and pressing cutting → Fine trimming → Scraping → Buffing 2 Panel width (min) 50 mm 3 Feeding speed 16 M/min 4 Workpiece thickness 10-60mm 5 Bandwidth 12-65mm 6 Band thickness 0.4-3mm 7 Pneumatic pressure 0.6 MPa 8 Machine size 4200*850*1500mm 9 power 10 KW 10 Machine weight 1000…
Read More
item value Condition New Range of Spindle Speed (r.p.m.) 0 rpm – 18000 rpm Positioning Accuracy (mm) 0.02 mm No. of Spindles Single Working Table Size (mm) 600×900 Machine Type CNC Router Travel (X Axis) (mm) 600 mm Travel (Y Axis) (mm) 900 mm Repeatability (X/Y/Z) (mm) 0.01 mm Spindle Motor Power (kW) 3.2 kW…
Read More
SPECIFICATIONS FOR 5-AXIS CNC ROUTER Size (1325/1530) Traveling size (mm) 2150x3450x1000/1200 2350x3950x1000/1200 Working size (mm) 1300x2500x600/800 1500x3000x600/800 Speed Idling speed (m/min) X: 45 m/min Y: 45 m/min Z: 10 m/min Working speed (m/min) X: 15 m/min Y: 15 m/min Z: 8 m/min Structure Heavy-duty steel structure with thermal aged and tempering treatment Guide Rail Taiwan Hiwin square guide rail…
Read More
Model T94A-1325 T94A-1530 T94A-2030 T94A-2130 T94A-2040 T94A-2050 Table Structure Aluminum + T-Slot Working Table Working Area 1300*2500*200mm 1500*3000*200mm 2000*3000*200mm 2100*3000*200mm 2000*4000*200mm 2000*5000*200mm Controller TAIWAN LNC MW2600 controller system Spindle HQD 9 kW Air-cooling Spindle Motor and driver Leadshine 1500W servo motor and driver, A-axis leadshine 750W servo motor Guide rail HIWIN 25/25/25mm Working voltage 220V/1PH/50HZ…
