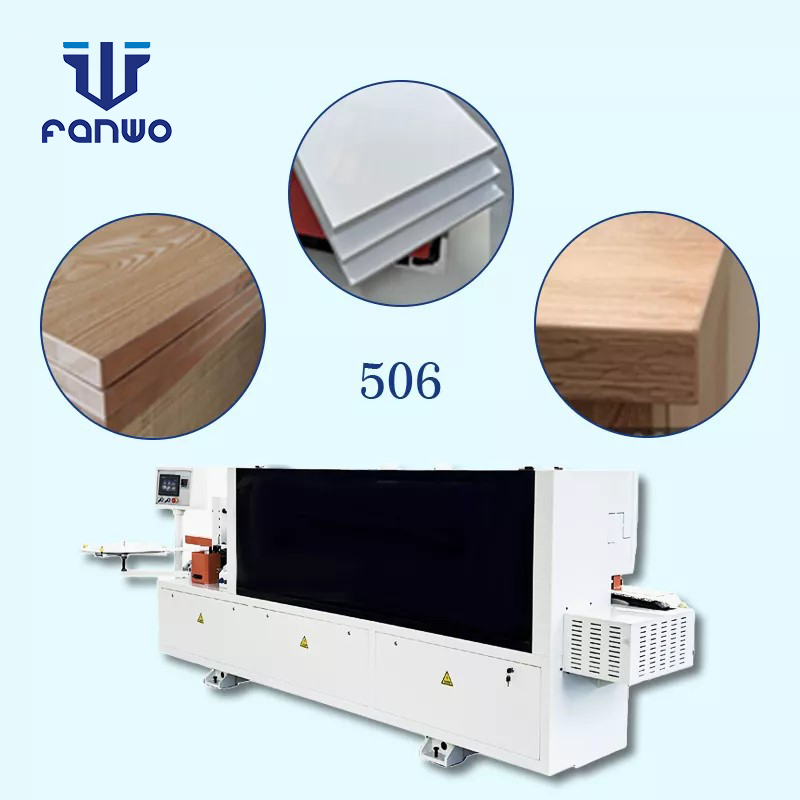

| Number | Model | FW-506 |
| 1 | Function | Gluing and pressing →Endcutting→Fine Trimming→Scraping→Buffing |
| 2 | Panel width (min) | 50 mm |
| 3 | Feeding speed | 16 M/min |
| 4 | Workpiece thickness | 10-60mm |
| 5 | Bandwidth | 12-65mm |
| 6 | Band thickness | 0.4-3mm |
| 7 | Pneumatic pressure | 0.6 MPa |
| 8 | Machine size | 4200*850*1500mm |
| 9 | power | 10 KW |
| 10 | Machine weight | 1000 KG |
| 11 | Touch Screen | DELTA |
| 12 | PLC | DELTA |
| 13 | Cylinder | EASUN & AiATC |
| 14 | Electromagnetic valve | EASUN & AiATC |
| 15 | End Cutting Guide | HINHIWIN |
| 16 | Pressure-regulating valve | ENSUN |
| 17 | Motor | CC |
The primary functions of an edge banding machine are designed to enhance the quality and appearance of panel edges in woodworking and furniture manufacturing.
It applies edge banding tape to the edges of panels. This tape can be made of materials like PVC, ABS, or wood veneer, and it provides a durable, moisture-resistant finish.
The machine applies adhesive to the edge of the panel before attaching the edge banding tape. This ensures a strong bond between the tape and the panel. After the tape is applied, the machine presses it firmly onto the panel to ensure a tight and seamless fit.
Trimming and Smoothing
Once the tape is applied and pressed, the machine trims any excess tape and smooths the edges to achieve a clean, professional finish. Pre-Milling (Optional)
Pre-Milling (Optional)
Some advanced edge banding machines come with a pre-milling function that prepares the edge of the panel by creating a smooth surface for better adhesion of the edge banding tape.

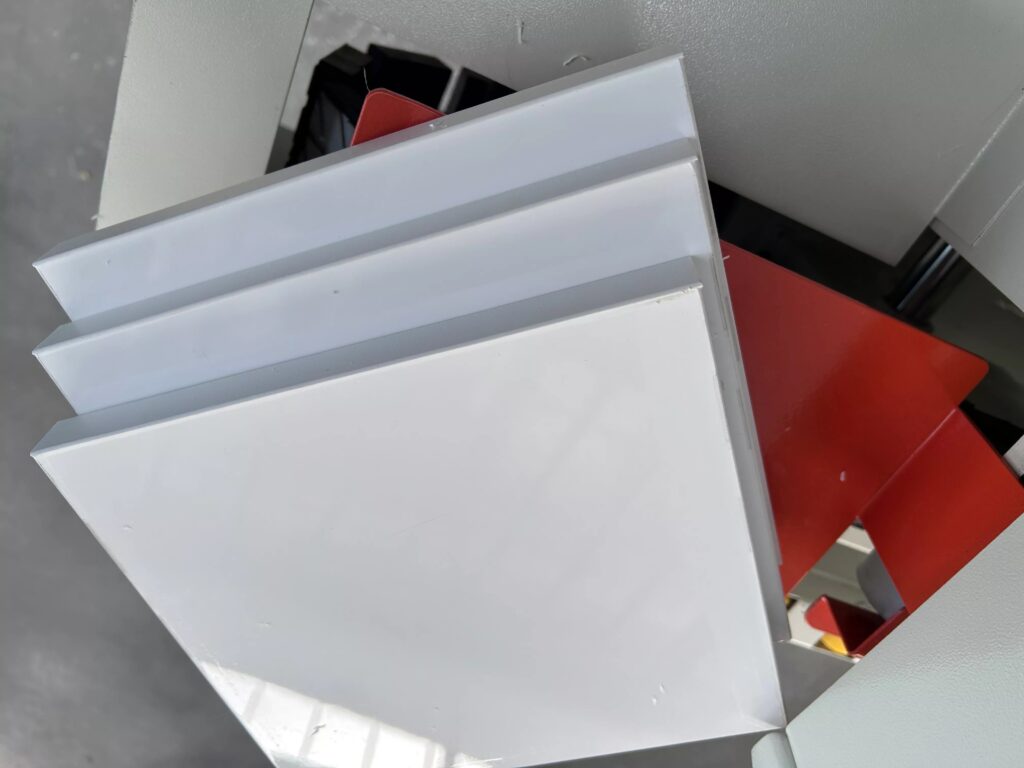

These functions collectively ensure that the edges of panels are finished to a high standard, enhancing both the durability and aesthetic appeal of the final product.

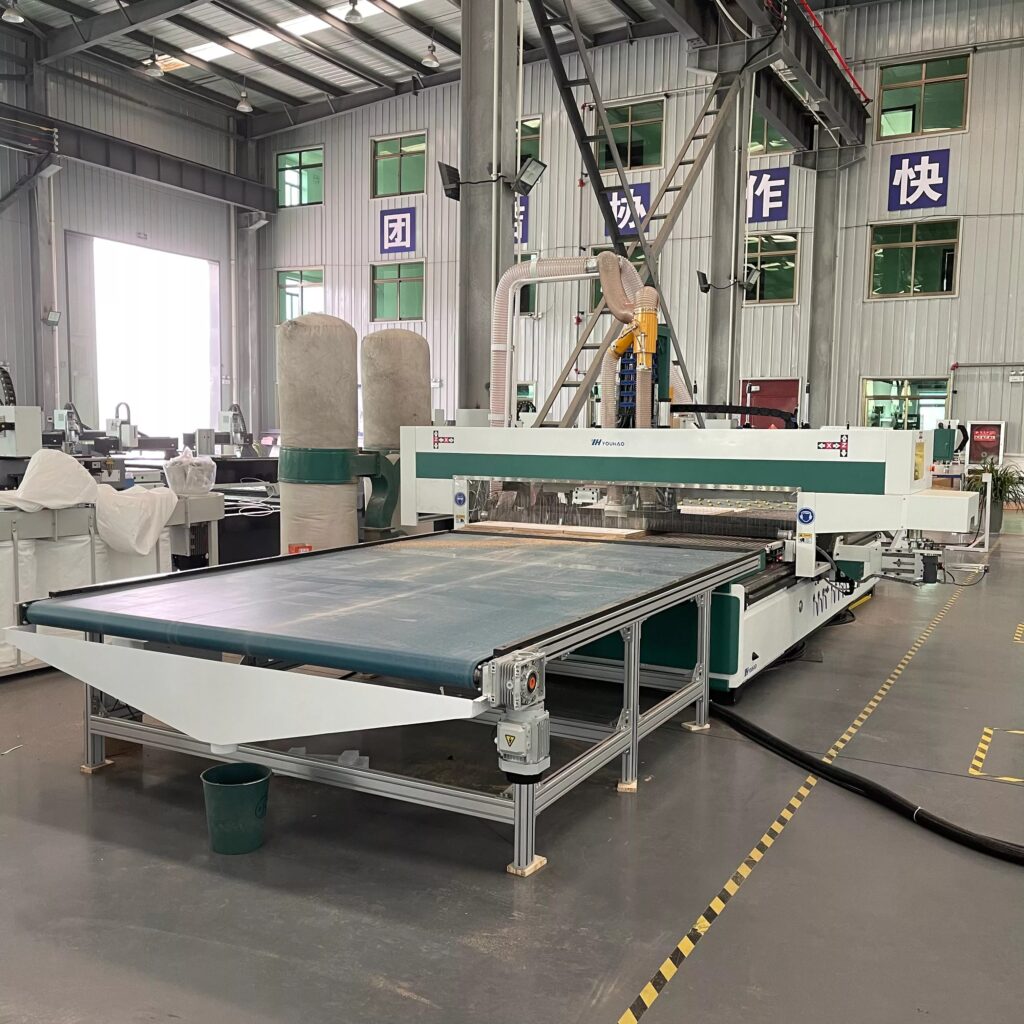

Matching the panel production line, after the panel is processed by the nesting machine, then using the edge banding machine to seal the edge.
