Specifications
-Aluminum profile table with T slots (vacuum table)
-1300*2500*200mm
-Taiwan LNC MW2200 control system
– HQD 9.0 kW ATC air cooling spindle
-Fuling 11 KW Inverter
-Leadshine 750W servo motor and driver
-China Oubang Reducer
– 8 pcs linear auto tool change
-Golden bridge vacuum pump
-Pop-up pins * 5
– Auto tool sensor
-Taiwan HIWIN 25/25/25 mm square rails
-1.5M helical rack, Taiwan TBI ball screw on Z
– Auto lubrication
| Model | T9ATC-1325 | T9 ATC-1530 | T9ATC-2030 | T9ATC-2040 | T9ATC-2050 | Customization |
| SIZE | 350*205*196cm | 400*225*196cm | 400*226*196cm | 400*226*196cm | 400*226*196 | 400*226*196cm |
| Table Structure | Full-page vacuum working table/vacuum table + T-slot | |||||
| Working Area | 1300×2500 mm, option: 16 00*3100mm; 2100*3100mm; 2100*4000mm, etc. | |||||
| Controller | Taiwan SYNTEC/LNC controller | |||||
| Spindle | 9KW ATC air cooling spindle, ISO30, ER32 | |||||
| Motor or drive | Leadshine 750W servo motor and driver option: Japan Yaskawa 850W servo motors and drivers | |||||
| Guide rail | Taiwan linear guide 30/25/25mm on XYZ axis | |||||
| Working voltage | 220V 1PH/3PH 50HZ/60HZ; 380V 3PH 50HZ/60HZ | |||||
| Traveling speed | 65/65/20 m/min | |||||
| Working speed | 0-25 m/min | |||||

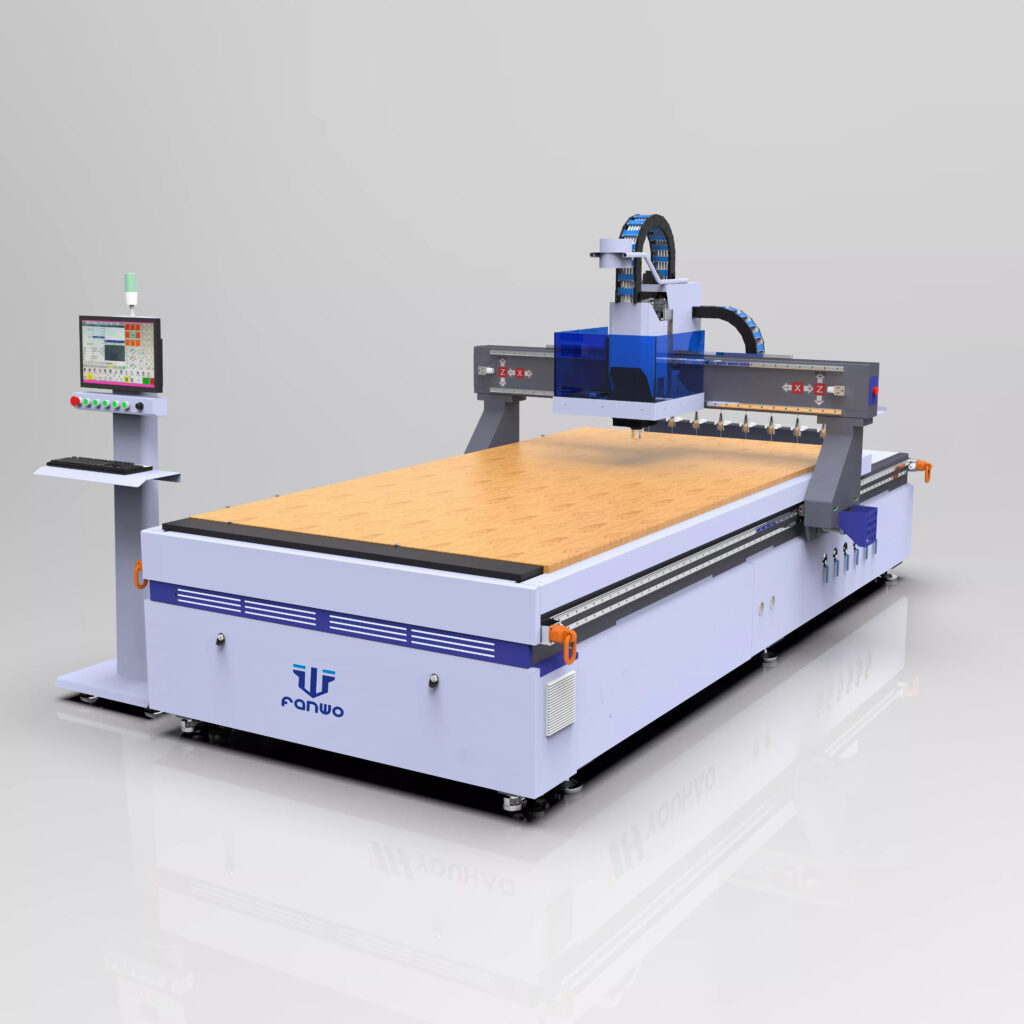

This is our T12 ATC CNC router; the size can be customized.
You can choose your own color; all configurations can be customized. This is our new model; most of our customers want to choose this model.
Air-Cooled Spindle
The electric spindle of the CNC router machine is a new transmission structure that integrates the machine tool spindle and the motor. The electric spindle is divided into air-cooled and water-cooled spindles according to the cooling method. The noise of the water-cooled spindle is much smaller than that of the air-cooled spindle, and the precision of the water-cooled spindle is higher. We first recommend choosing an HQD water-cooled or air-cooled spindle.

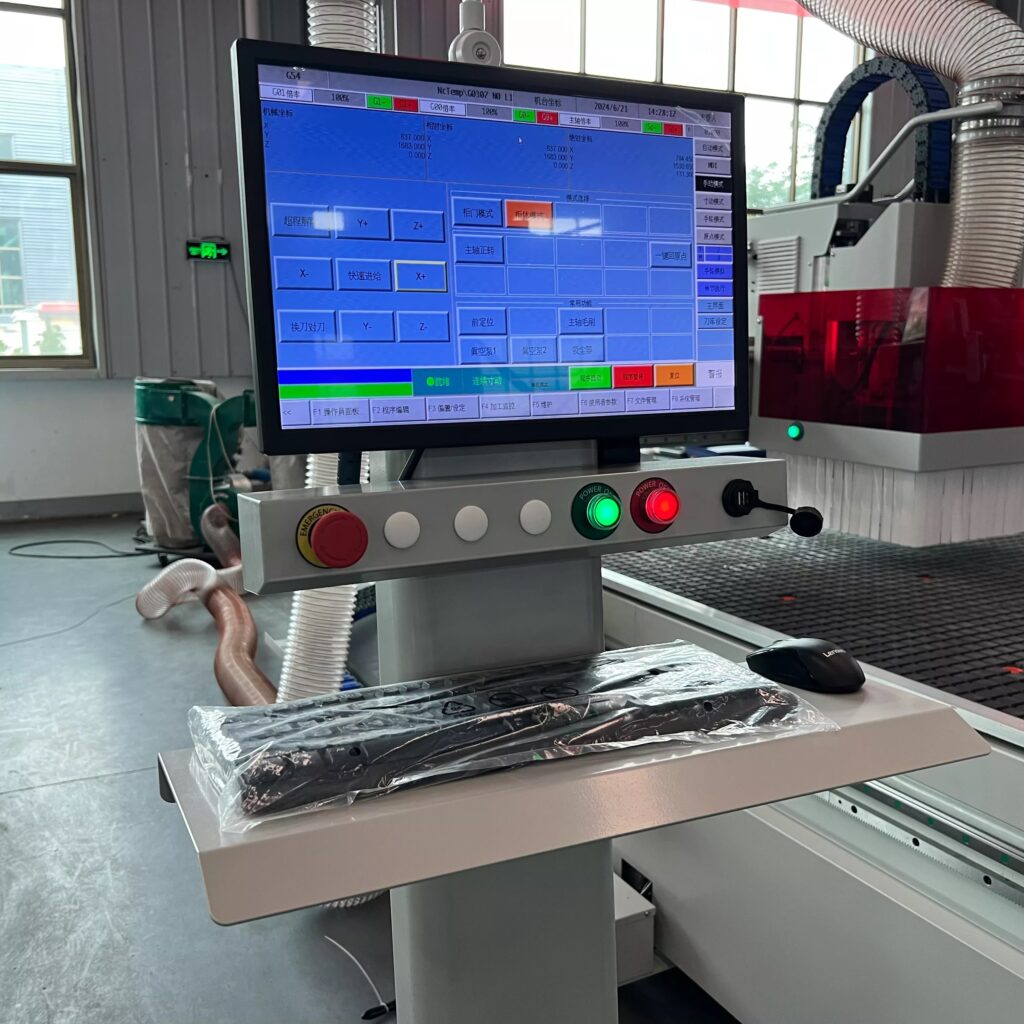

It uses the Syntec 60CA controller system; it is very easy to operate. If you need this machine, please contact me.

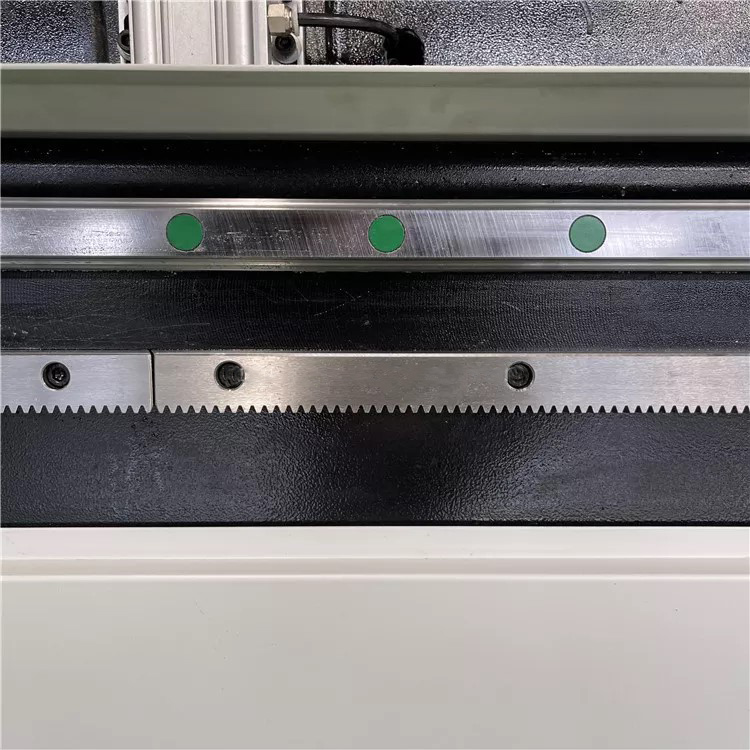

HIWIN Rails
Youhaocnc CNC routers use HWIN rails. Our company has rail brands from low-end to high-end, and you can choose the rail brand according to customer needs.

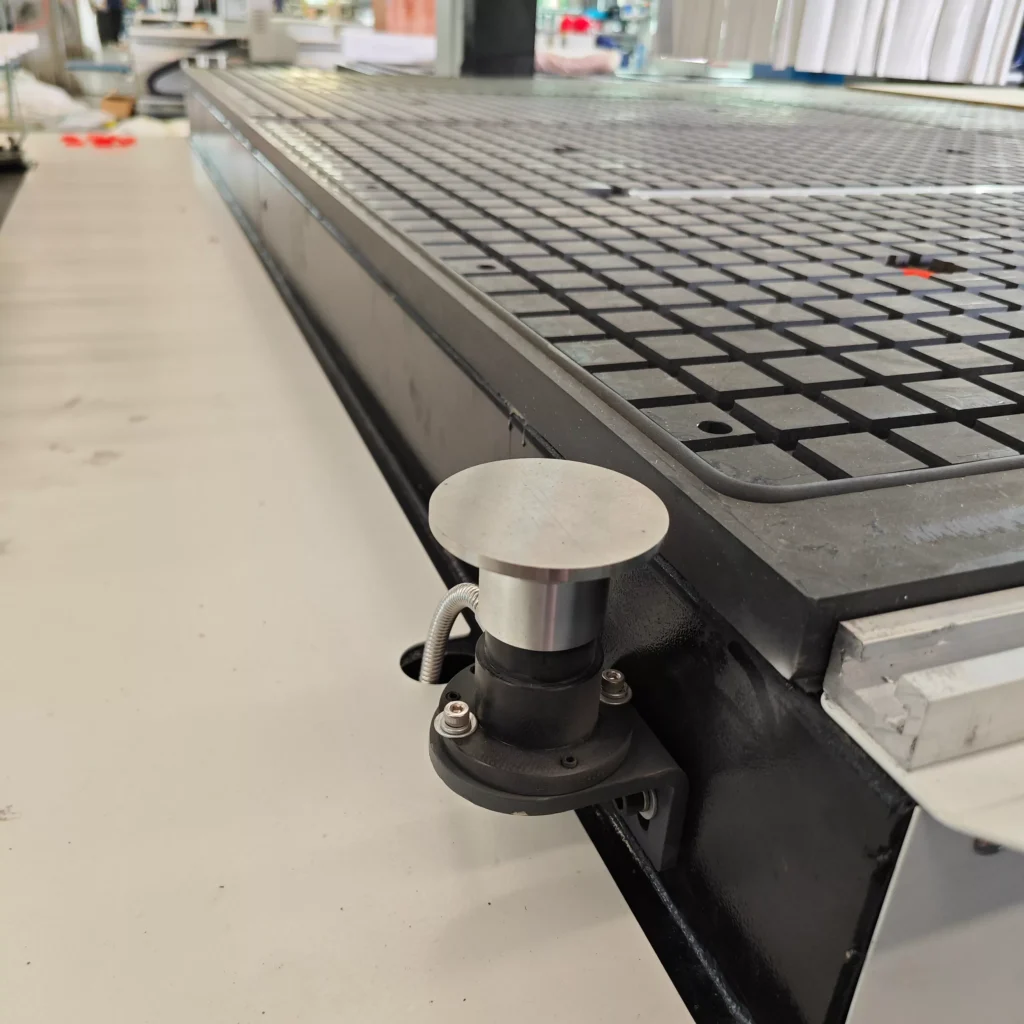

Toolsensor
Wood routers can add automatic tool setting blocks. It depends on the customer’s needs. The main function is to adjust the tool adjustment time after a tool change.
Linear-type tool change
The automatic tool-changing technology of the CNC router machine. It is very stable. You can change the tools very quickly.
This machine can be used for cutting panels. drilling the holes.
