| Model | FW T11-1325 ATC CNC |
| Working area | 1300*2500*200mm (can be customized) |
| Control System | LNC control system |
| Spindle | 9KW ATC air cooling spindle (HSD is optional) |
| Spindle speed | 1-24000 RPM |
| Motor and Driver | 750w Leadshine servo motor and driver |
| Inverter | fueling an 11 kW inverter |
| Table surface | Vacuum table with T-slot |
| Transmission | X,Y Axis: Helical rack pinion, Z Axis: Taiwan TBI Ball Screw, |
| Command language | G-code |
| Tool magazine | 8-12 Linear tool magazine |
| Software | ArtCam, Ucancam, Type3 |
| Optional | Rotary device/Dust Collector/vacuum pump loading and unloading system |
| Repositioning accuracy | ±0.03 mm |
| Working accuracy | ±0.03 mm |
| Working voltage | 220V 3PH 50HZ/60HZ 380V 3PH 50HZ/60HZ |
Our T11 ATC CNC router is a very beautiful one; it’s a high-end model of our ATC. You can choose a suitable level machine according to your need.

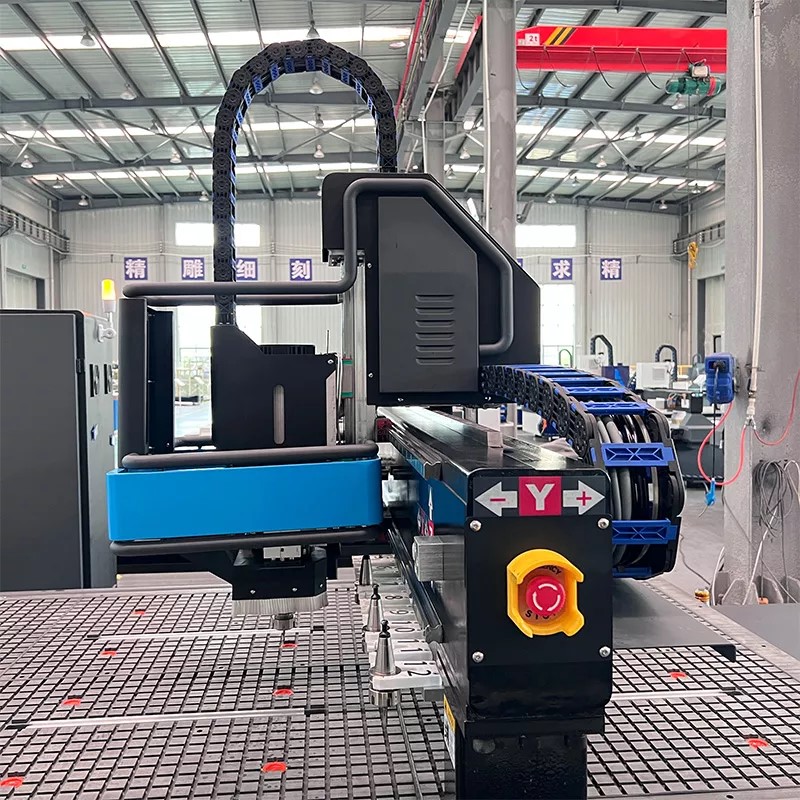

The linear tool magazine is under the gantry. When the T11 ATC CNC Router is working, the tool change system will move along with it, which saves the tool change time and is suitable for more processing.
600°C annealing treatment continued 24 hours 10 years of Machine bed Not deformed, 100% drilled hole by the highest accuracy 5-axis milling machine.
poisoning pop-up pions It can realize the precise positioning of the plate
Chinese famous brand high-frequency automatic tool changer spindle ISO 30 Rotating Speed: 1500-24,000 RPM Collet: ER-3210
