Specifications
| Model | T8-YH1325 |
| Table | T-slot Vacuum adsorption table |
| Table size | 1300*2500*200mm |
| Transmitting way | X,Y axis transmitting by gear and rack,Z axis transmitting by rolling ball screw |
| Spindle motor | leadshine stepper motor |
| Spindle motor speed | 0~24000rpm/min |
| Driver system | Servo Motor or stepper |
| Control system | The Original Ncsutido Control System |
| Limit stop | Hard limit stop and omron etromic |
| Inverter | follin inverter |
| Working table | T-slot +PVC table |
| Working votage | AC380V/50Hz |
| Optional | Dust collector, Servo system, Vacuum system, Oil spray system, Oil lubrication system |
Our economic modle. it adopt s the front cabinet with our independent one .less space occupation ,great save shipping cost.
The gantry structure is very strong and will not deform, it won’t shake,when the machine works

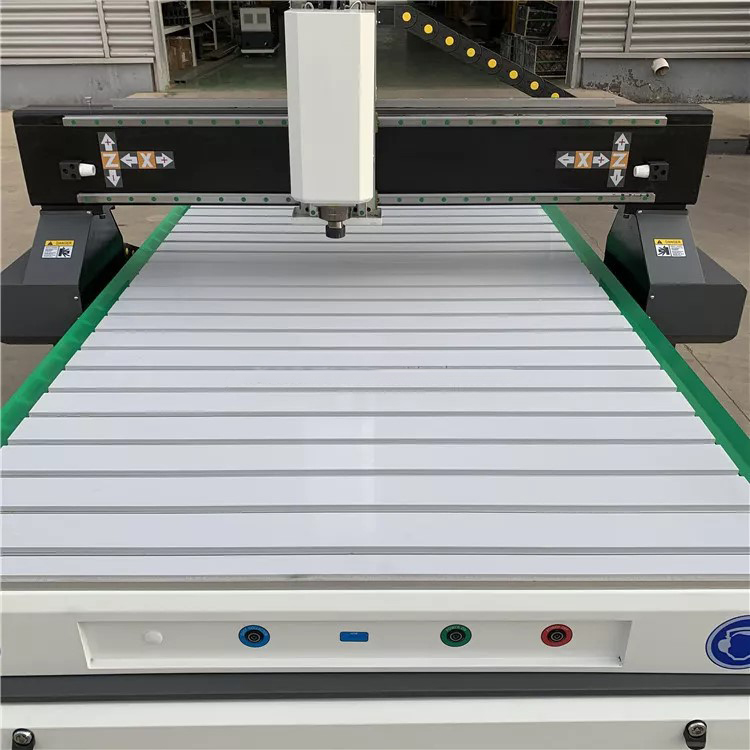

Aluminium pfrofile with PVC T-SLOT ,You can clamp the material very tightly.we will provide you four sets of clamps for free .you don’t need buy it additionally.

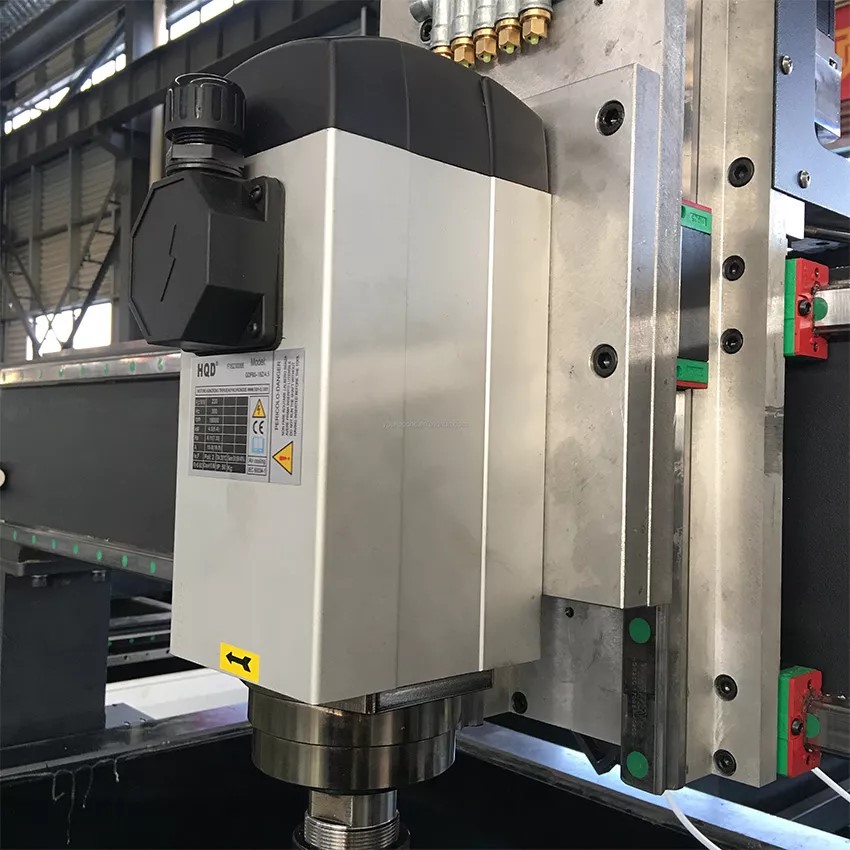

China HQD air or water cooling spindle, more powerful, low noise, not easy to break cutters, suitable for engraving and cutting work. HSD spindle is optional.youhao cnc router machine can customize according to your needs
lmported grinding grade rack Strong wear resistance, highprecision,low noiseimported guide rail + flangeslider Strong steel, strongbearing capacity
