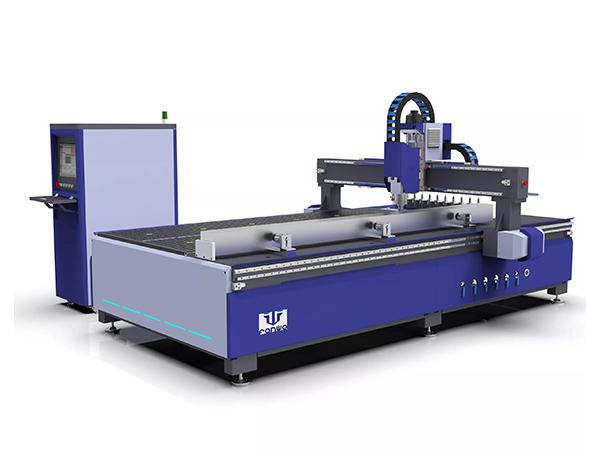

Model T8-1325 T8-1530 T8-2030 T8-2130 T8-2040 T8-2050 Table Structure Aluminum T-slot table Working Area 1300*2500*200mm 1500*3000*200mm 2000*3000*200mm 2100*3000*200mm 2000*4000*200mm 2000*5000*200mm Controller DSPA11 controller Spindle 3.5 kW air-cooling spindle Motor or drive Leadshine stepper motor and driver Guide rail XYZ HIWIN 25/25/25 Working voltage 220V/380V OPTIONS Customer needing 1. Dust collector 2. Vacuum pump 3. ROTARY…
Read More

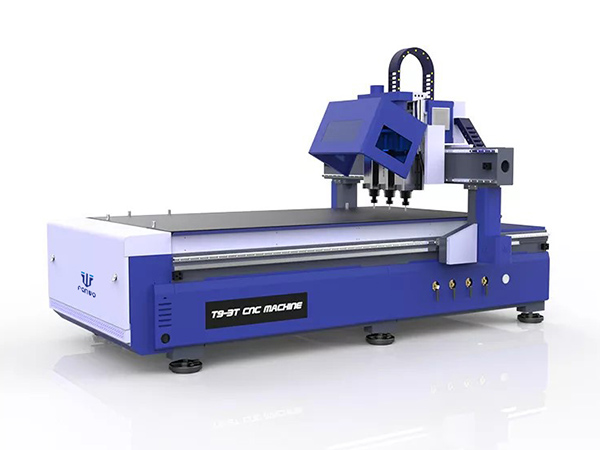

Specifications Model T9-1325-3T X, Y, and Z Working size 1300*2500*200mm Transmitting way The X and Y axes are transmitting by gear and rack, and the Z axis is transmitting by rolling ball screw motor leadshine hybrid motor and driver Spindle motor speed 0~24000 rpm/min Control system Richauto DSP A11 control system Inverter Fuling 7.5kw inverter…
Read More
Specifications NO. Description Parameter 1 XYZ working area 1500*3000*200mm, 6*10ft 2 Optional working area 1300*2500*200mm, 4*8 ft 2000*4000*200mm, 6*13ft 3 The side drilling working size 50*3000mm 4 Z Structure Original TAIWAN TBI Ball Screw transmission 5 Pneumatic fixture 3 pcs 6 device Oil spray device with nozzle 7 Table Steel plate with T-slot and water…
Read More
Specifications K9-1524 ATC CNC Router -1500×2400×300 mm -PTP table with 3 sets, 3 sets of PTP with fixture -Pop-up pins: 9 sets on PTP (every PTP has 3 sets) – SYNTEC 60wa control system – HQD 4.5 KW air-cooled 4-direction spindle -HQD 9kw ATC air cooling spindle, 24000 rpm -Delta 11kw inverter -Leadshine 1500W servo…
Read More
Description Parameter Model YH-K9 X, Y, Z Working Area 1220*2440*200 mm (can be customized) Repositioning resolution 0.02 mm System Resolution 0.0025 mm Guide Taiwan linear 25mm square rail Table Surface T-slot and vacuum working table Structure heavy-duty structure XYZ Structure Germany Helical rack gear for X and Y axis, Taiwan TBI ball screw for Z…
Read More
NO. Description Parameter 1 XYZ working area 1200*1200*200mm 2 Optional working area 1325/2030/2040 (can be customized) 3 Guide Original TAIWAN HIWIN 4 Z Structure Original TAIWAN TBI Ball Screw transmission 5 Traveling Positioning Accuracy ±0.02/300 mm 6 Repositioning Positioning Accuracy ±0.02 7 Table Aluminum profile table/vacuum table 8 Vacuum pump 7.5KW Taiwan EUROVAC vacuum pump…
Read More
MACHINE model Y6-6090 CNC router Effective working area 600*900*200mm Table style Aluminum T-slot table with PVC (vacuum table is optional) Guide rail Hiwin square linear guide rail Driving method Taiwan Original TBI Ball screw for X, Y, and Z Axes Spindle 3KW water cooling spindle Invert FULLING inverter Collet size ER20 Spindle speed 0-24000 rpm…
Read More
Bed Heavy duty Working range 3500*200*200mm .6500*200*200mm.1200*200*200mm Electric spindle HQD 6kw air cooling automatic tool change spindle, 24000 rpm Control system Taiwan LNC MA 2700 control system Drive motor Leadshine 1500W servo motor with Japanese shimpo reducer, the fourth axis 2000W Leadshine servo motor Rail Taiwan HWIN30/25/25 Rack and screw 1.5M crescent and TBI screw…
Read More
A9 4＋1 Axis Aluminum Profile Processing Machine -Pneumatic clamps to fix the materials 6 sets -Rotate automatically +90 degrees and -90 degrees on the working table; can work on 3 side surfaces through one-time clamping. It is divided into two independent workbenches of 3.5M, which can work independently or together -Max 7000*200*200mm effective working area…
