| Model | SIGN A4-1325 |
| X, Y Working size | 1300*2500mm |
| Z-feed Height | 300 mm |
| Table Surface | Vacuum working table with 7.5 kW vacuum pump |
| X, Y Structure | 25 mm Square Guide Rail and Helical Rack |
| Z Structure | 25 mm Linear Square Guide Rail and Ball Screw |
| Spindle Power | 9.0kw HQD spindle |
| Inverter | 11 kW Delta |
| Linear tools magazine | 8 PCS |
| Max. Rapid Travel Rate | 33000 mm/min |
| Max. Working Speed | 25000 mm/min |
| Tool sensor | With |
| Dust collector | 3 kW |
| Spindle Speed | 0-24000 RPM |
| Drive Motors | SYNTEC 1000W servo motor and driver |
| Working Voltage: | AC 380V 50Hz/60Hz |
| Command Language | G-code |
| Control System | SYNTEC 60WE |
| X, Y, and Z Repositioning Accuracy | ±0.01 mm |
| X,Y Resolution | <0.01mm |
| Software | ARTCAM |
| Running Temperature | 0 degree – 45 degree |

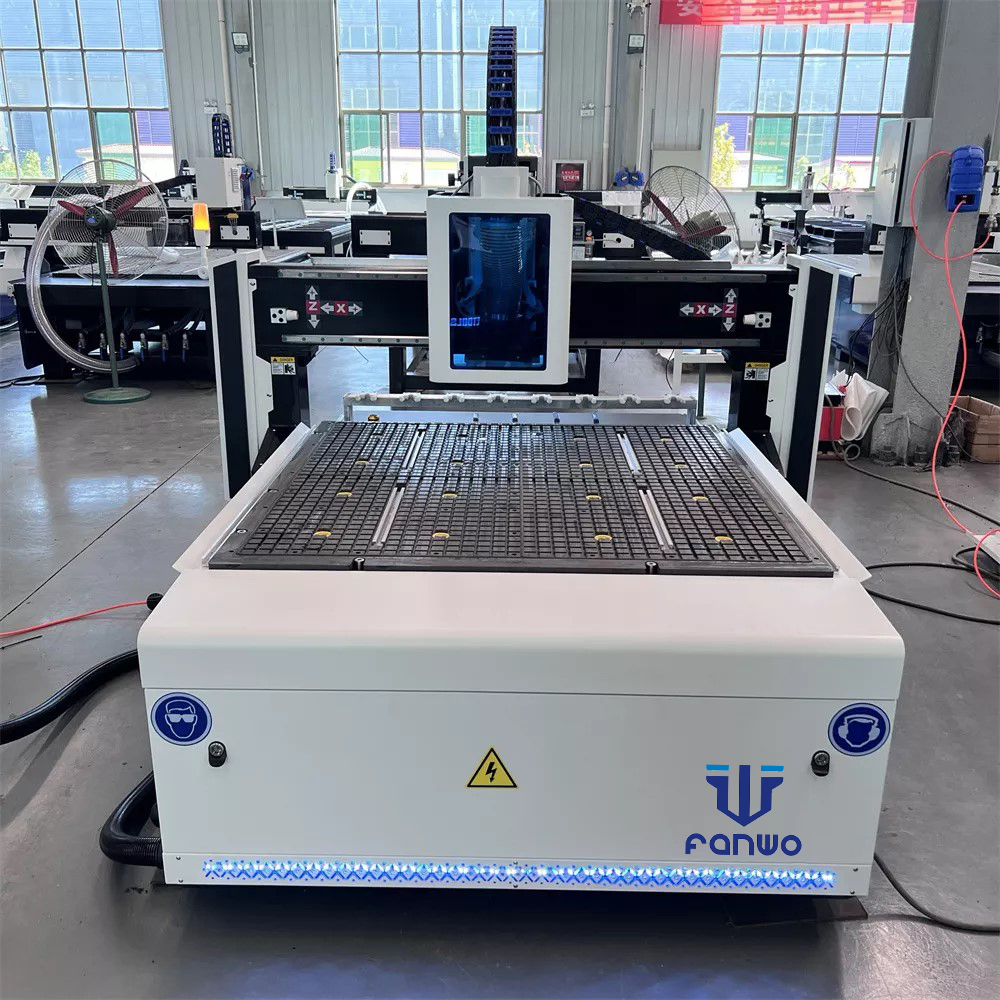

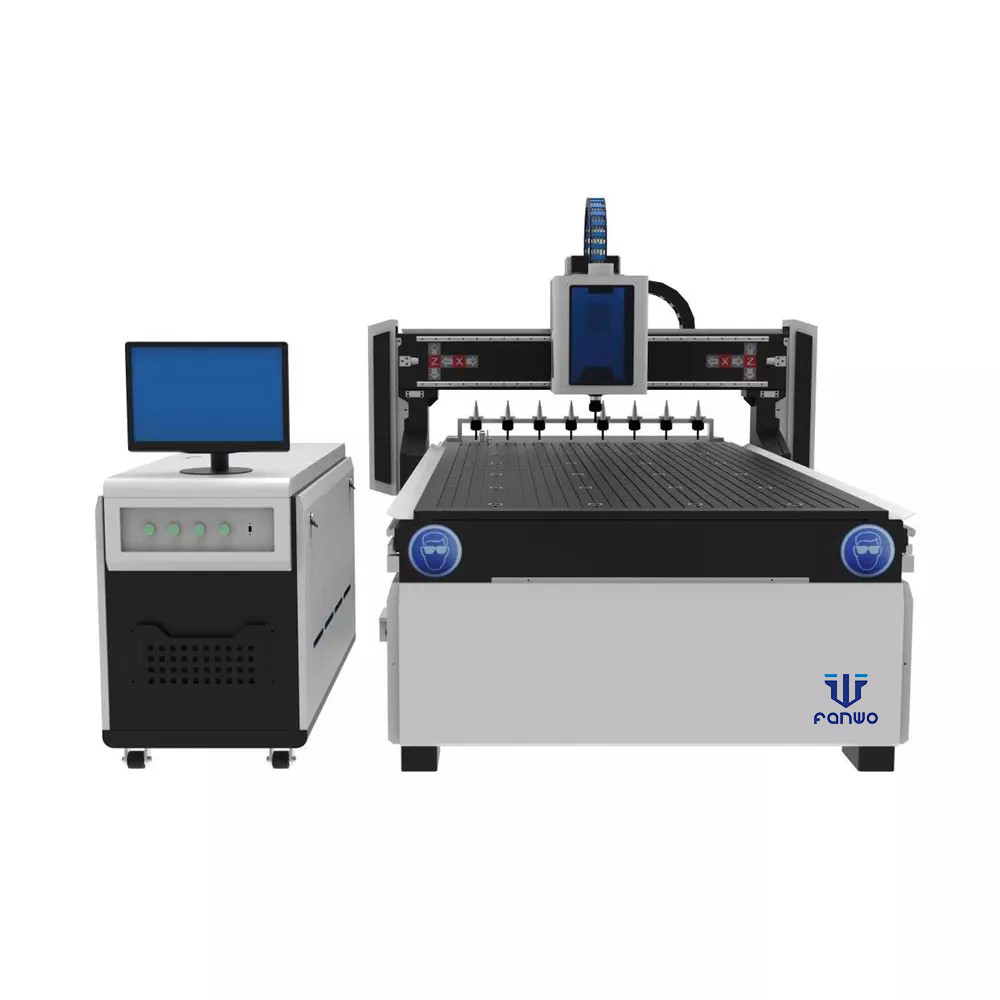

This ATC CNC router is a small-sized one; we can customize all sizes according to your needs.

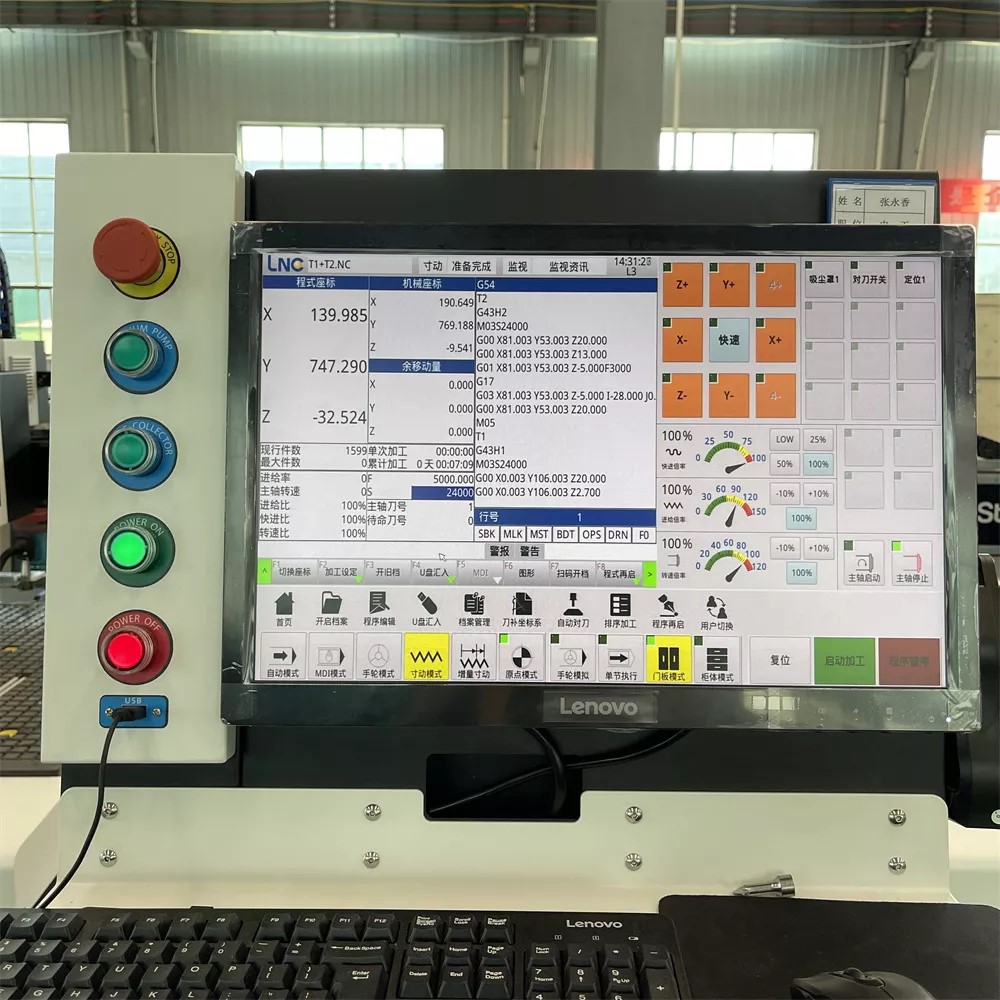

It adopts Taiwan’s famous brand controller system, can read files quickly, and can set files easily.
With a Chinese 9KW ATC air-cooling spindle with a 12-linear-tool magazine, it can change tools quickly at 3 seconds.
Toolsensor
Adjust the accuracy of the machine’s tool change thickness to improve efficiency.
Linear-type tool change
Automatic tool changing can improve accuracy and reliability, reduce the operator’s labor intensity, improve production efficiency, and be more convenient.
