X, Y, Z Working Area: 1200*1200*650mm
Optional Working Area: 1300*1300*650mm
Optional Working Area: 2400*1200*650mm
Optional Working Area: 2500*1300*650mm
Optional Working Area: 3000*1500*650mm
The max feeding height can be 2000 mm; it can be customized according to your needs
Operation System: Italy Osai Open Smart 5-axis controller, with RTCP, with monitor, keyboard, mouse, and handwheel
– Italy Hiteco 8.5-10KW air-cooling spindle (Italy HSD is optional)
– Yaskawa 1300W servo motor and driver, Z axis with brake
-Taiwan Delta 15KW Inverter
– X axis with Taiwan Liming Reducer
– Japan Pantoscopic 30/30/30 square rails
– Germany WMH-2M-1000 rack on X, Taiwan TBI ball screw on Y, Z
-12 pcs carousel auto tool changing magazine
– Independent control cabinet with industrial air conditioner
– Teyu CW5200 water chiller

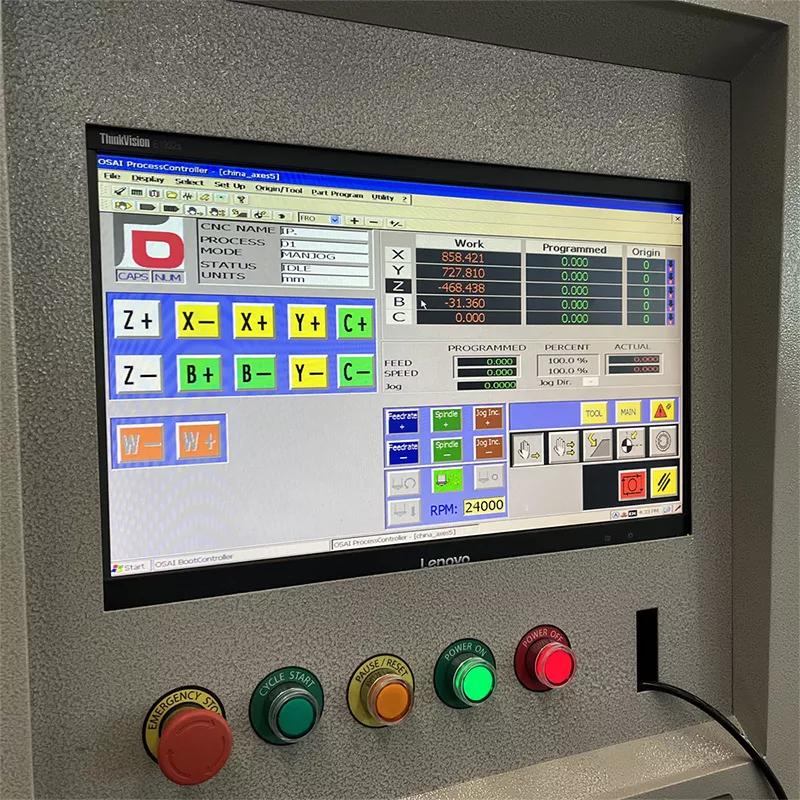

Controller system
The machine adopts the Italy OSAI control system with RTCP function and good operating experience; it can finish the complex five-axis linkage machining works.

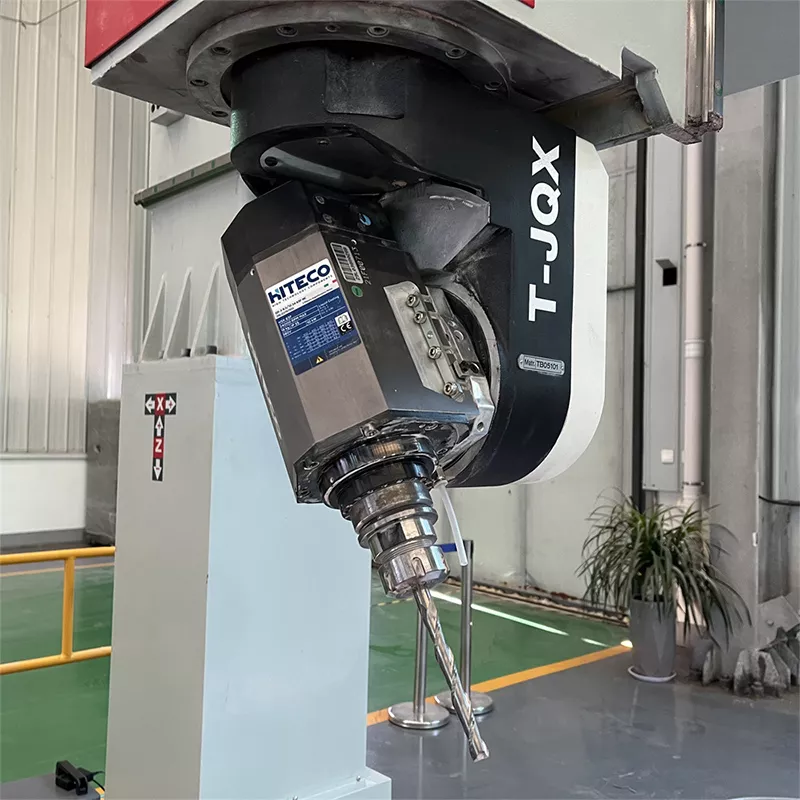

Spindle
The machine adopts Italian high-precision five-axis head, HSK63 interface. It is a combination of various functions—setting milling, engraving, cutting, drilling, and slotting—with high working efficiency.

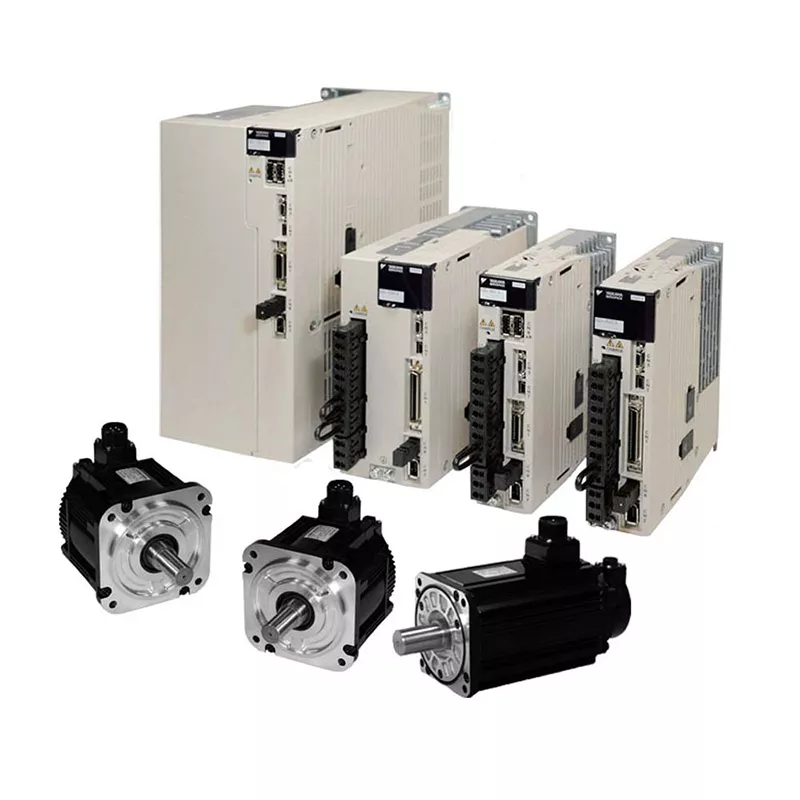

Yaskawa servo motor
FanWo 5-axis CNC router adopts the Japan Yaskawa servo motor and high-precision planetary reducer to ensure machine accuracy.

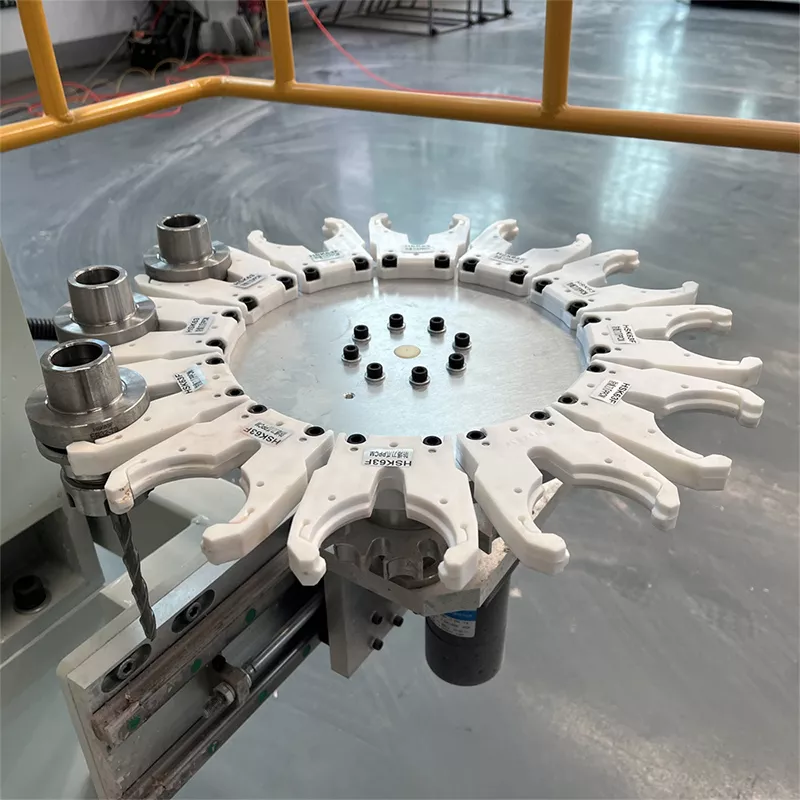

Tool changer

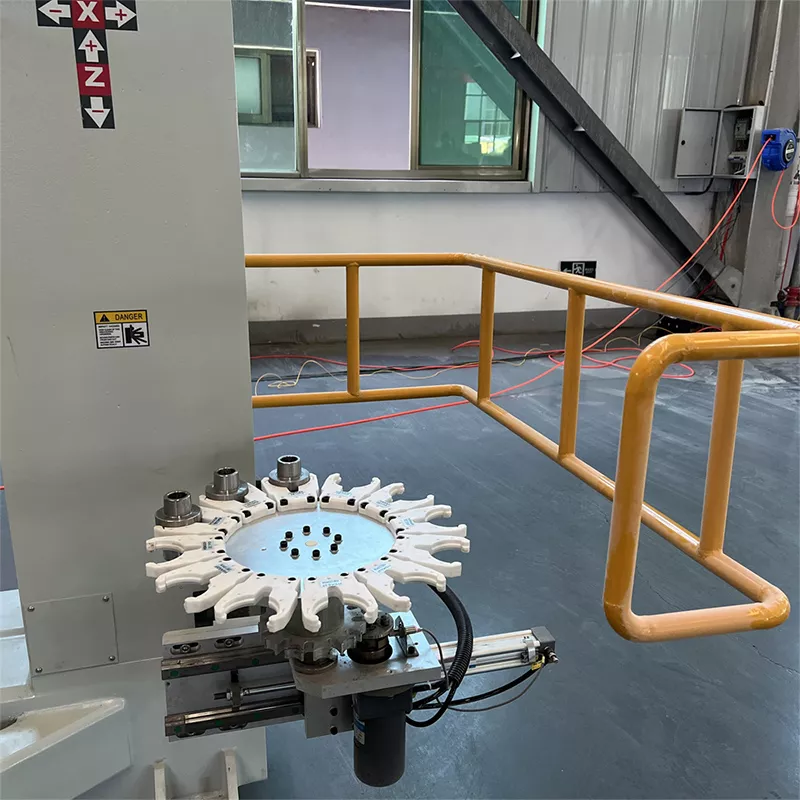

Carousel automatic tool changer, It can greatly improve the production efficiency.

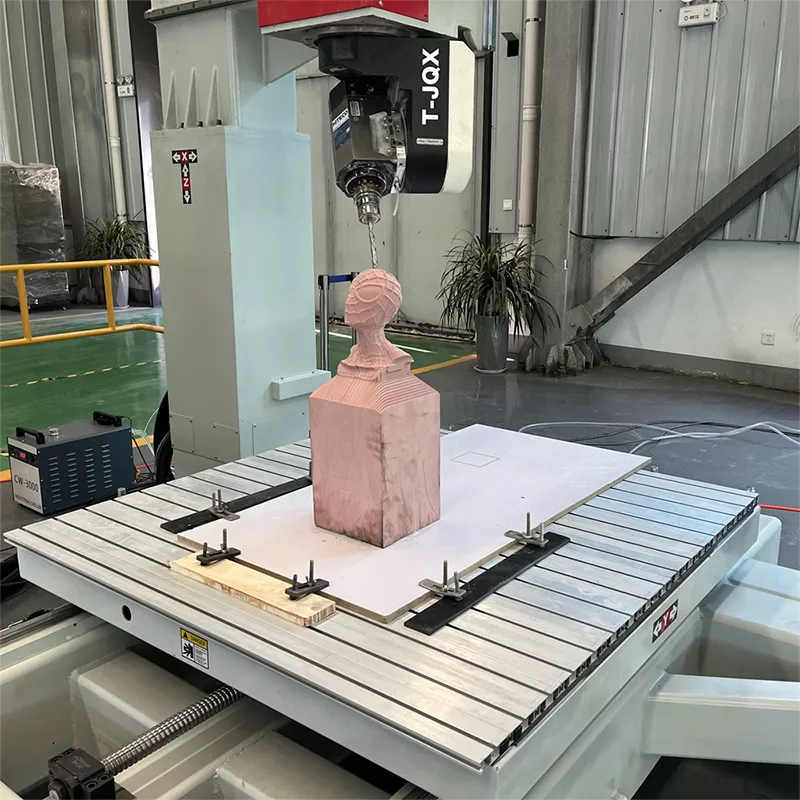

Table
Table moving can ensure the machine accuracy.
Safety protection

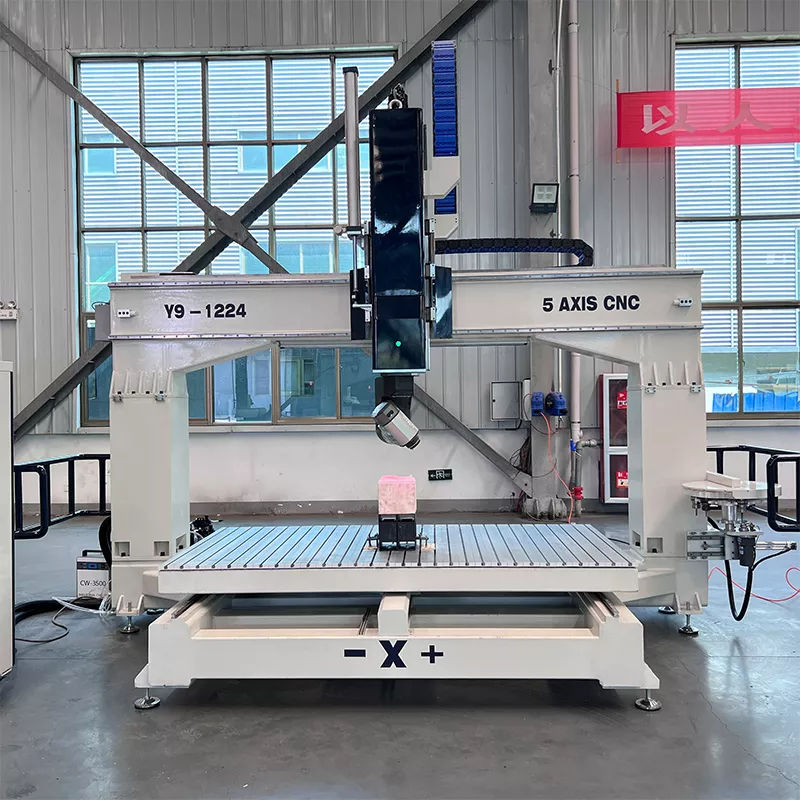

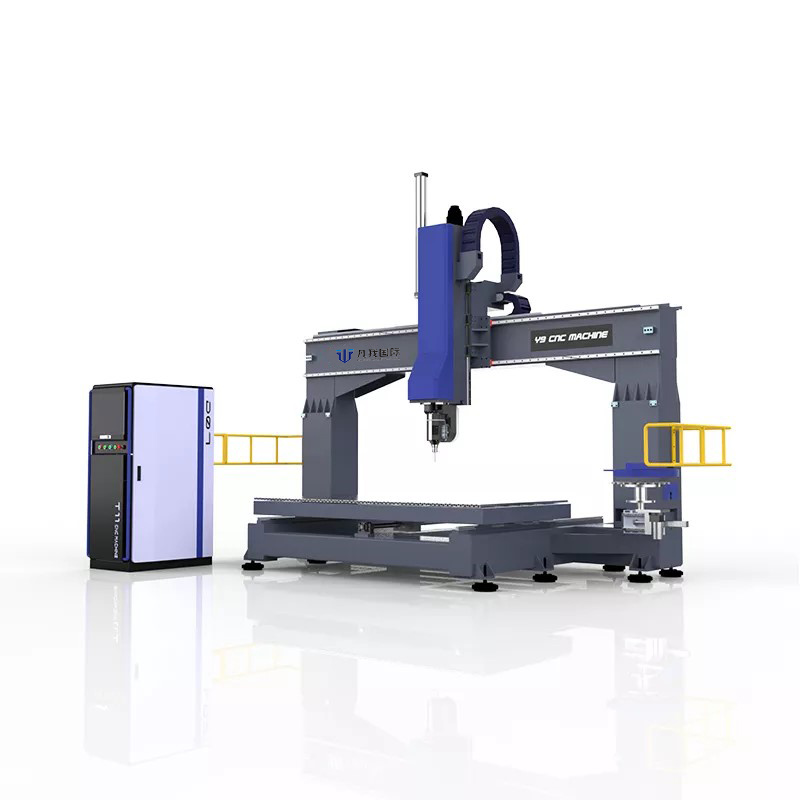

The machine is equipped with safety protection device to ensure the operator’s personal safety The Y9-5A-1313 5-axis machining center is suitable for five-axis linkage processing of wood mold.
