| Bed | Heavy duty |
| Working range | 3500*200*200mm .6500*200*200mm.1200*200*200mm |
| Electric spindle | HQD 6kw air cooling automatic tool change spindle, 24000 rpm |
| Control system | Taiwan LNC MA 2700 control system |
| Drive motor | Leadshine 1500W servo motor with Japanese shimpo reducer, the fourth axis 2000W Leadshine servo motor |
| Rail | Taiwan HWIN30/25/25 |
| Rack and screw | 1.5M crescent and TBI screw |
| Inverter | Fuling 7.5KW |
| Table | fixed table (rotated table is optional) |
| Lubrication | automatic lubrication and automatic oil separation |
| Power supply voltage | 380V/3Ph/50Hz |
| Tool changer magazines | 8 automatic tool changer magazines |
| Autonics proximity switches, Sch neider electrical components, AirTAC cylinders, high-flex shielded wires | |

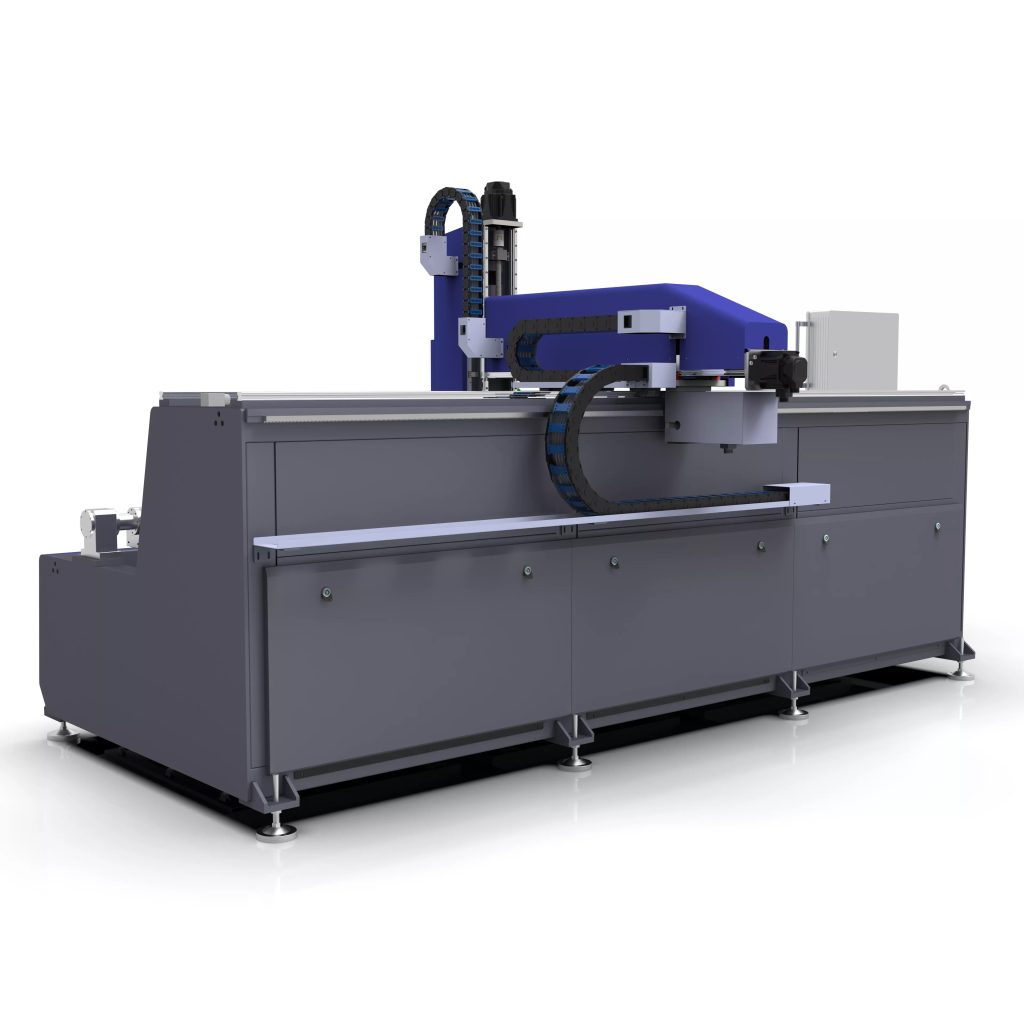

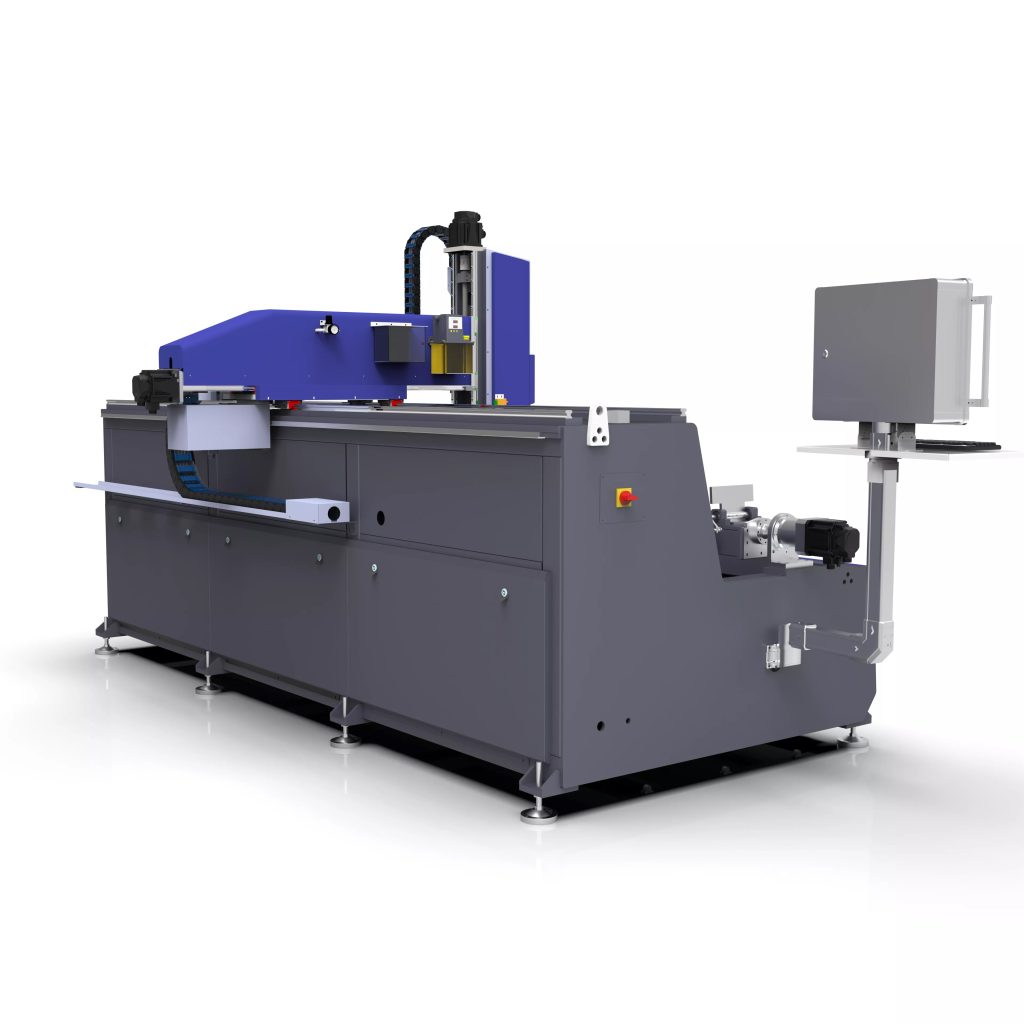

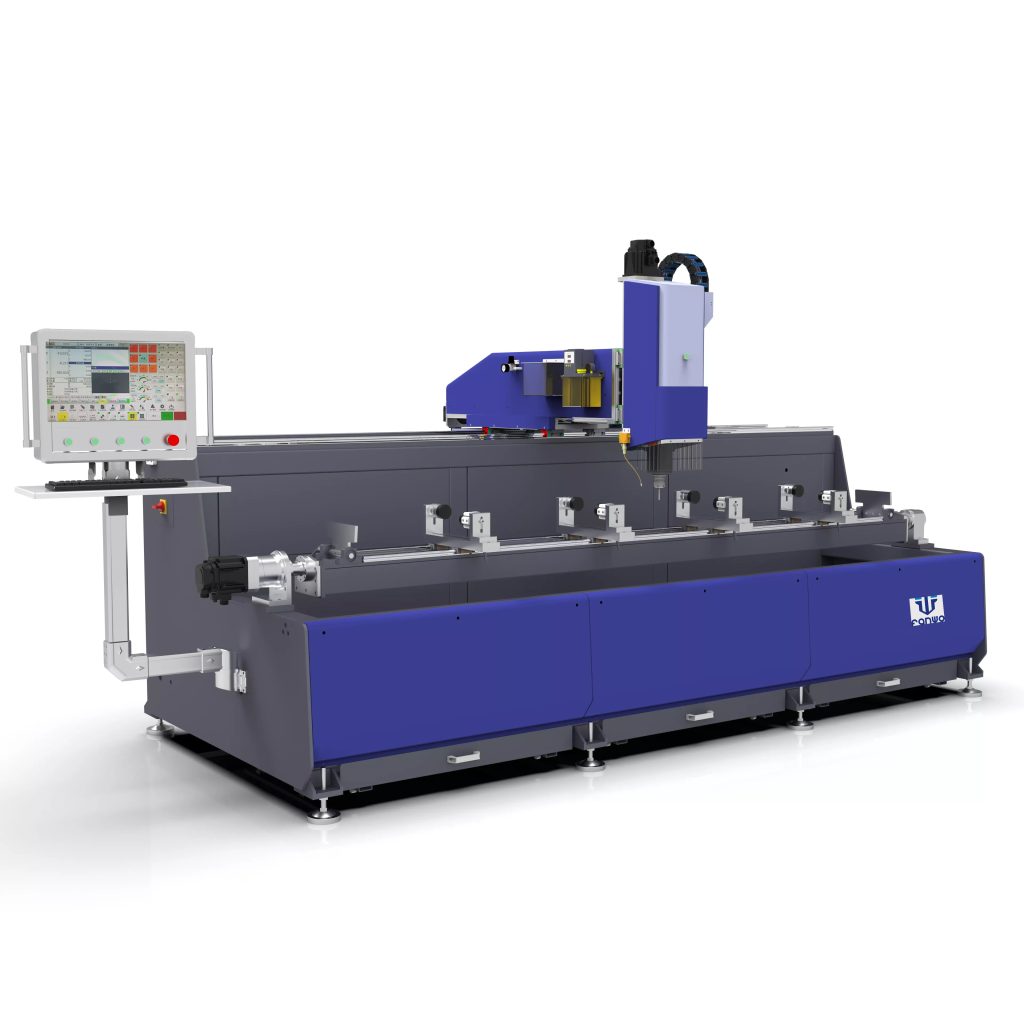

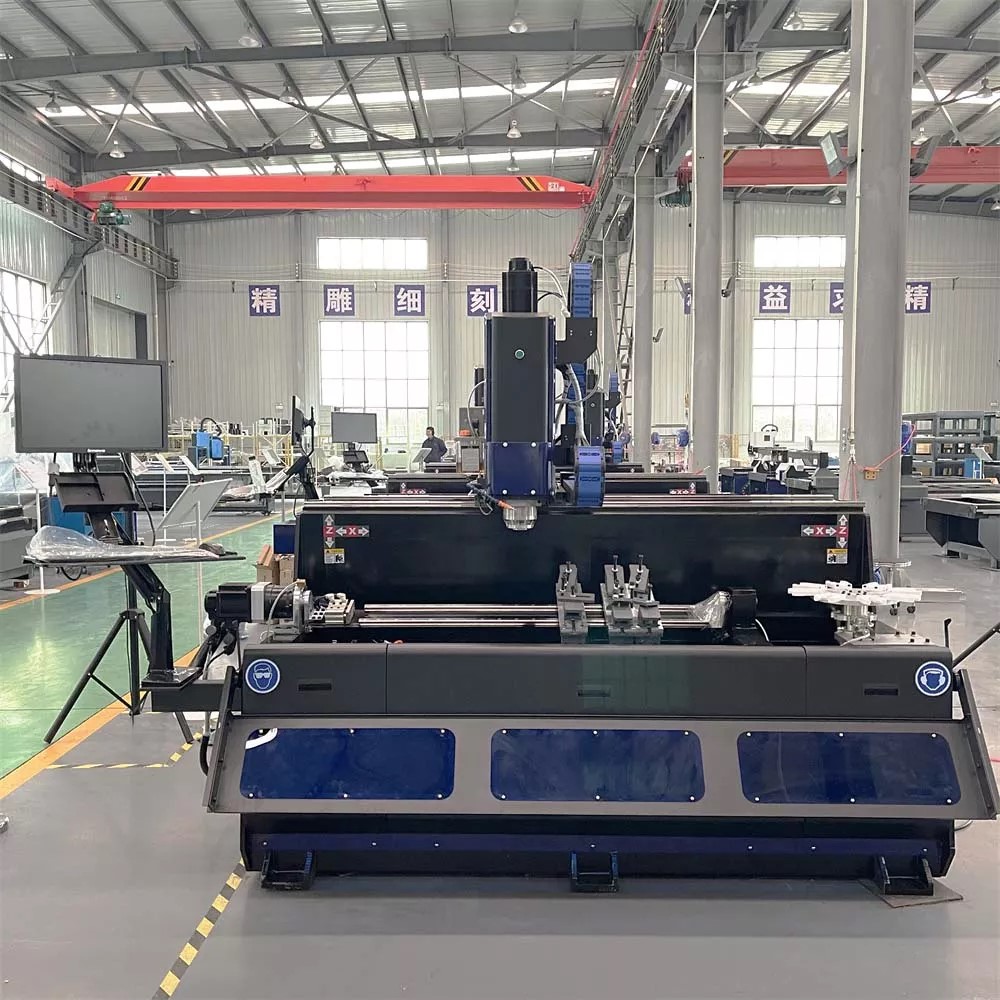

Used for aluminum doors and windows and curtain wall profile installation holes, flume, keyholes, shaped holes, end milling and tapping, and other processing processes, it is high quality and high precision.

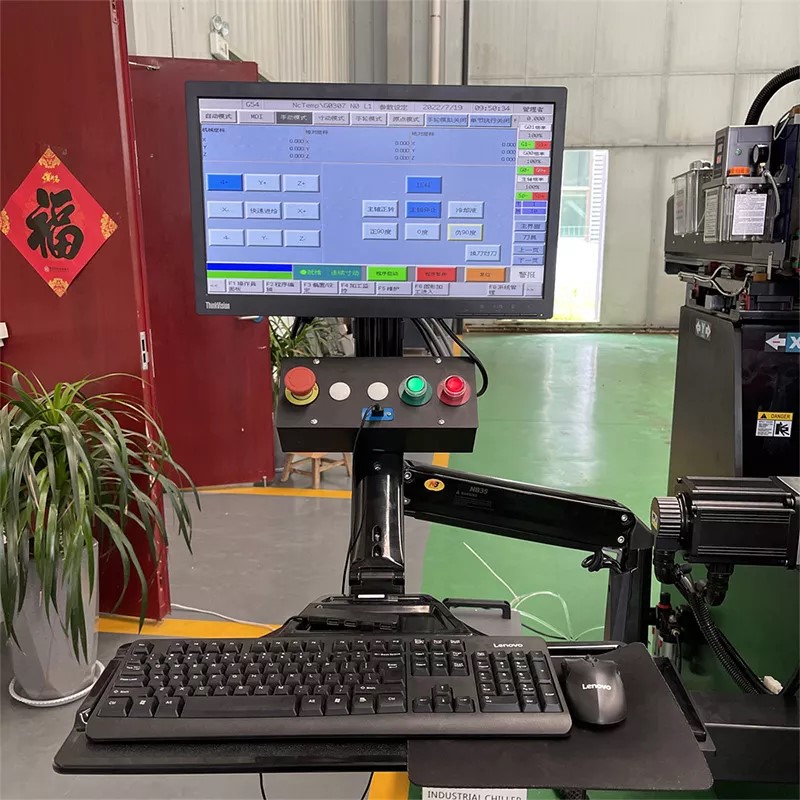

Using Taiwan LNC’s high-quality industrial special computer control system, with a good user interface, graphic programming and processing tracking interface Equipped with professional CAD-CAM programming software. Automatic conversion processing of G code, simple operation, high efficiency, and low labor intensity.

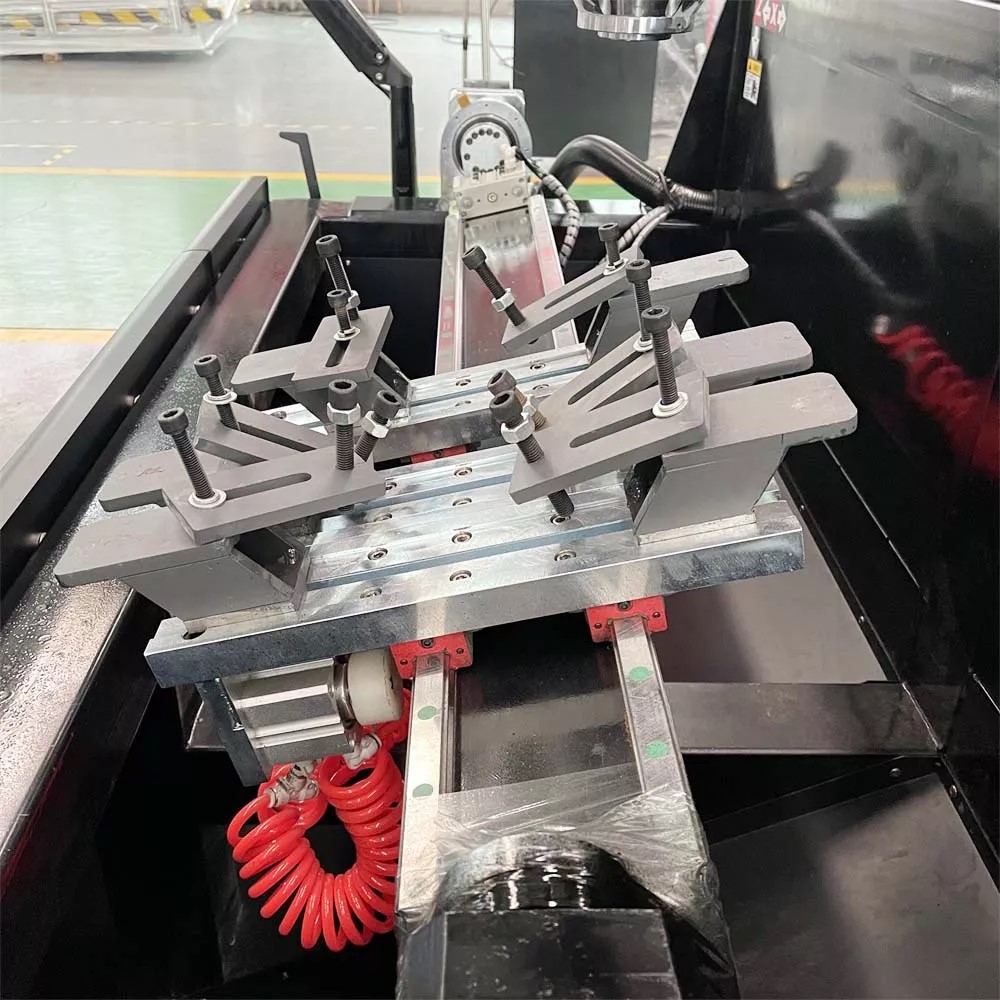

Different clamps are available according to customer profiles.
The worktable can fixed or rotate ±90°.

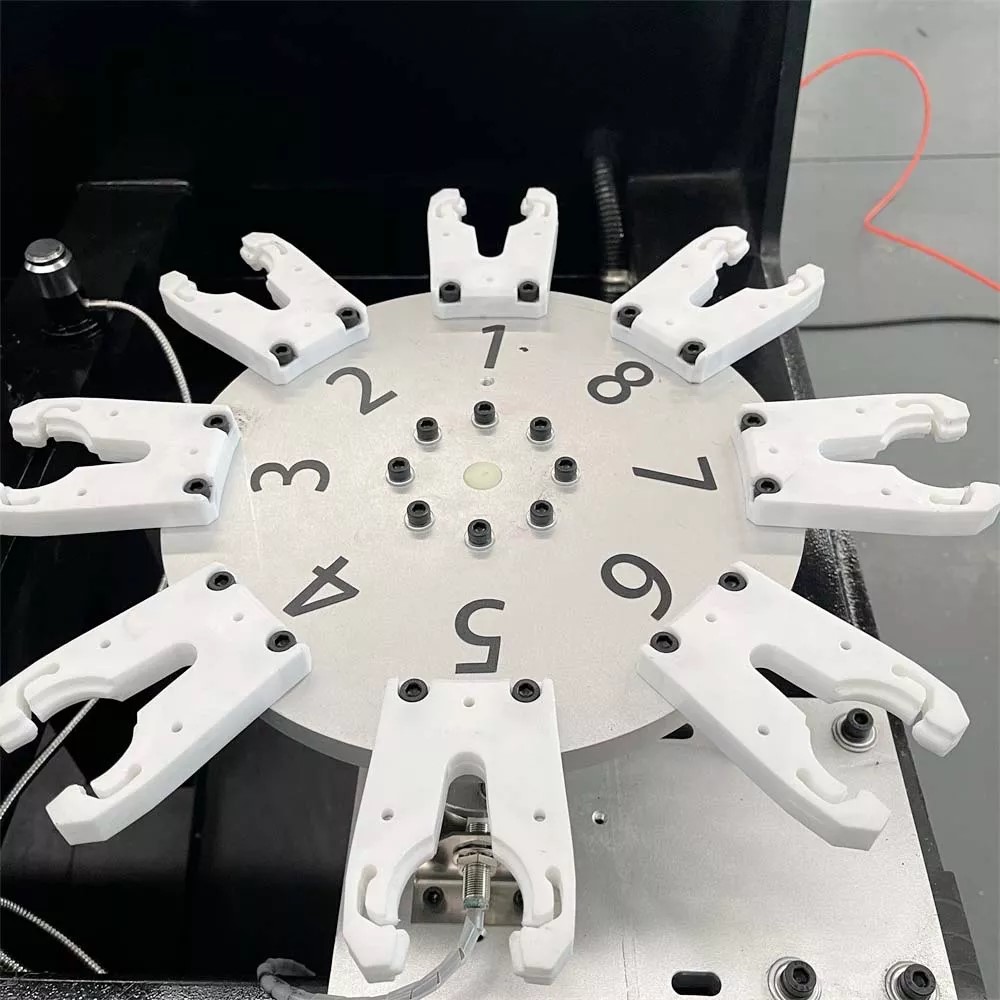

8 tools Carousel tool magazine, It’s a servo tool magazine, and the tool change speed is very accurate and very fast. Rack and square rails are also used differently. More suitable for diversified composite product processing, with a wide range of functions: router, drilling, cutting, and so on. High speed and high precision.

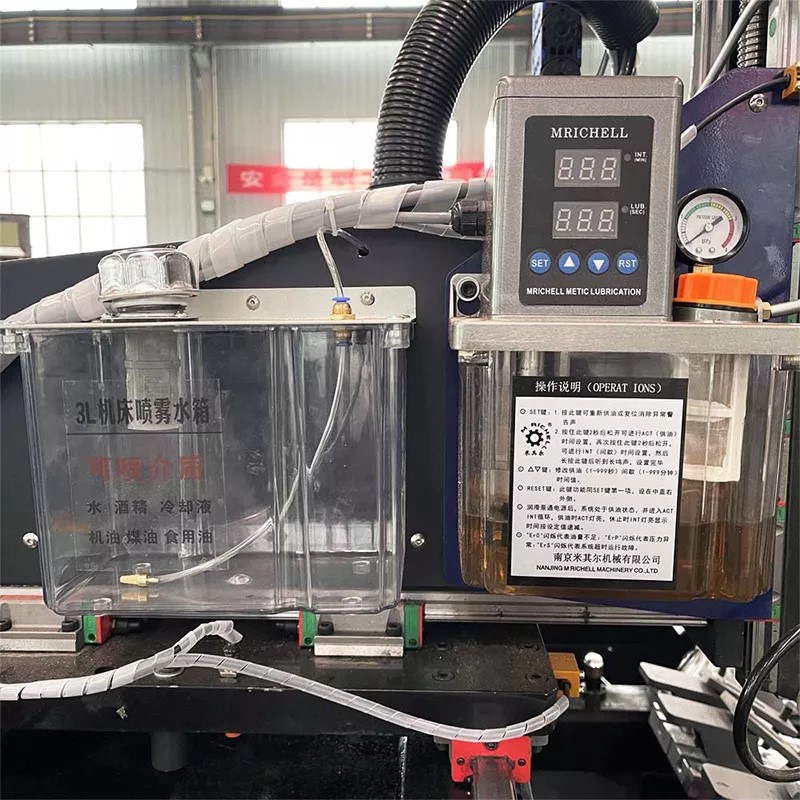

Lubrication System
Automatic lubrication and automatic oil separation.

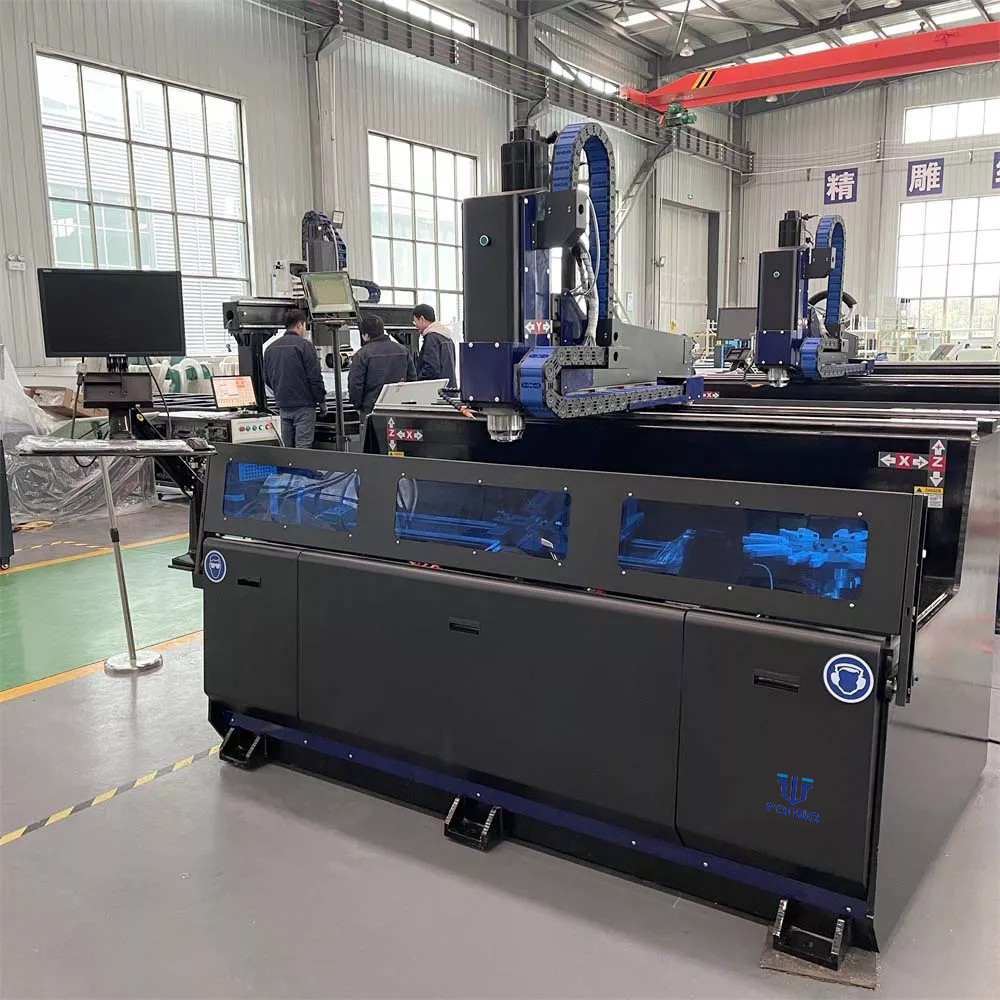

Protective guardrail to avoid personal injury during processing
