Specifications
| item | value |
| Condition | New |
| Range of Spindle Speed(r.p.m) | 0rpm – 18000rpm |
| Positioning Accuracy (mm) | 0.02mm |
| No. of Spindles | Single |
| Working Table Size(mm) | 600×900 |
| Machine Type | CNC Router |
| Travel (X Axis)(mm) | 600mm |
| Travel (Y Axis)(mm) | 900mm |
| Repeatability (X/Y/Z) (mm) | 0.01mm |
| Spindle Motor Power(kW) | 3.2kw |
| Key Selling Points | Easy to Operate |
| Local Service Location | United States, France |
| After Warranty Service | Video technical support, Online support, Spare parts |
| Showroom Location | France |
| Applicable Industries | Building Material Shops, Construction works , Other, Advertising Company |
| Marketing Type | New Product 2022 |
| Machinery Test Report | Provided |
| Video outgoing-inspection | Provided |
| Warranty of core components | 1 Year |
| Core Components | Motor, Pump |
| Product name | 6090 cnc router machine |
| Application | wood aluminum cutting and engraving |
| Inverter | folinn inverter |
| Spindle | Air Cooling Spindle |
| 6Control system | DSP A11 Control System |
| Working area | 600x900mm |
| Table Surface | Vacuum Combined T-slot Table |
| Motor | Stepper Motor |
| Color | can be customized |
| Tool magazine | customized |

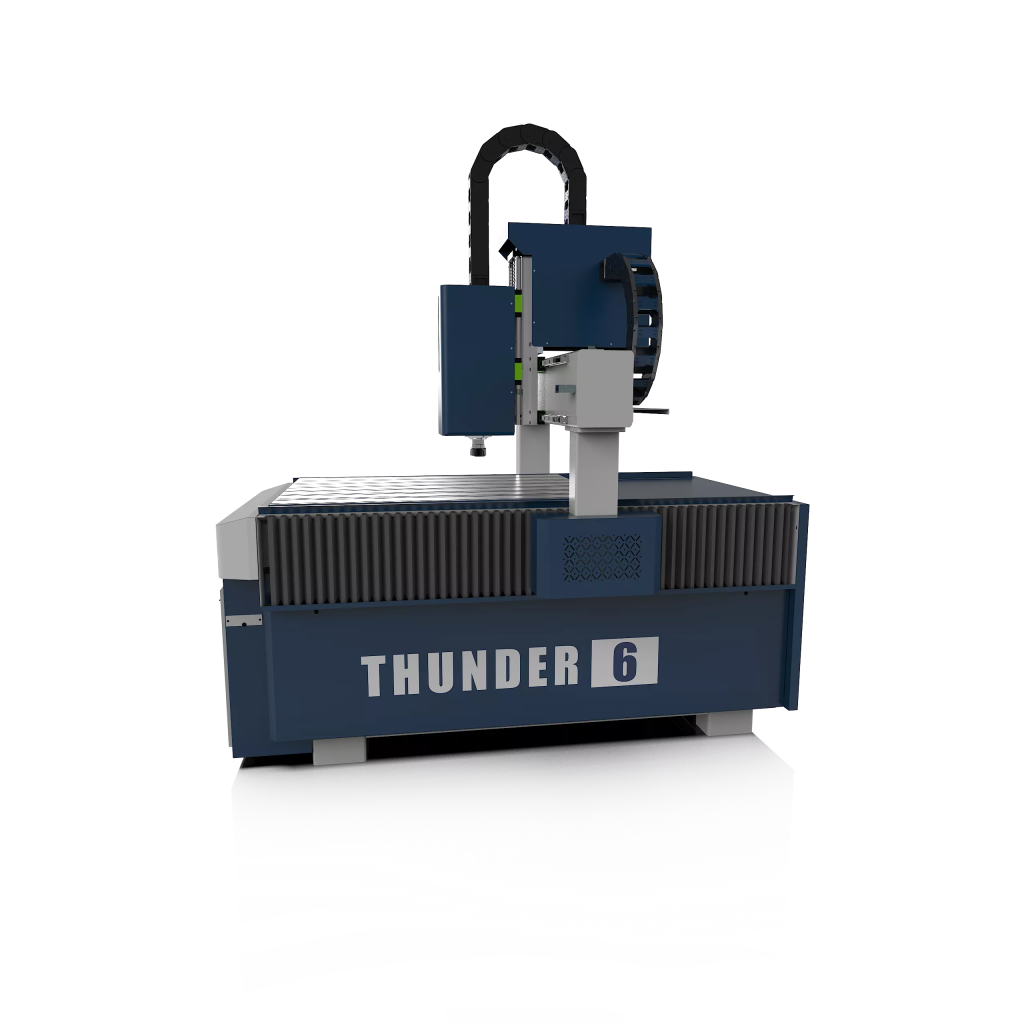

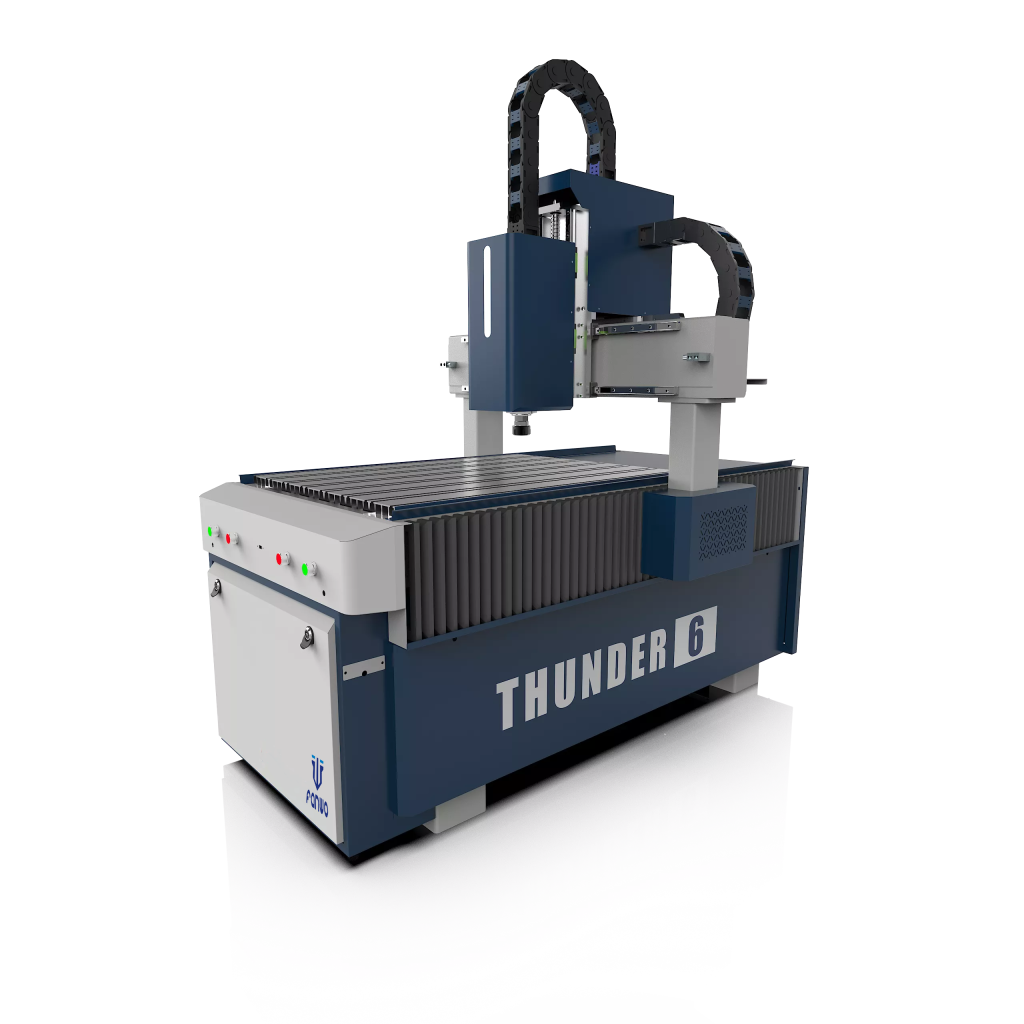

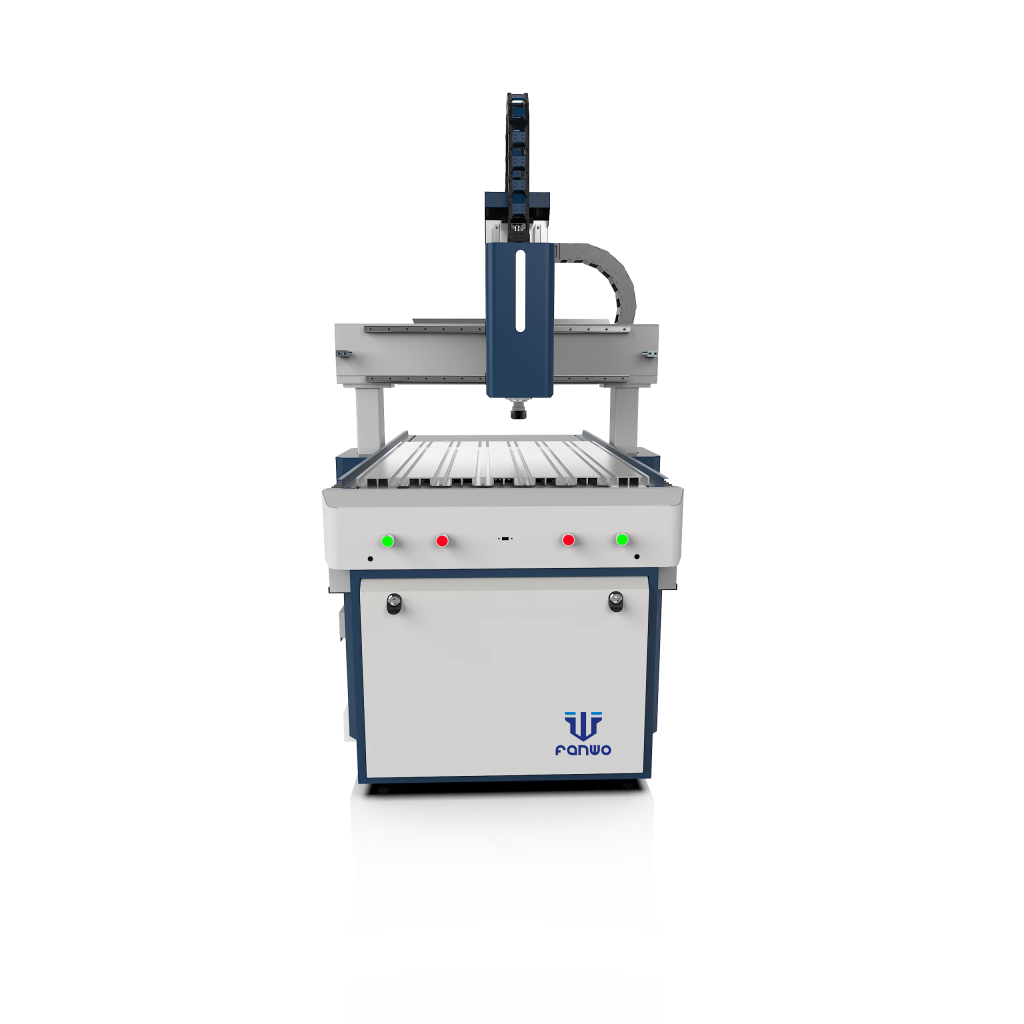

Wood Small 6090 6012 6015 Mini Cnc Router Machine

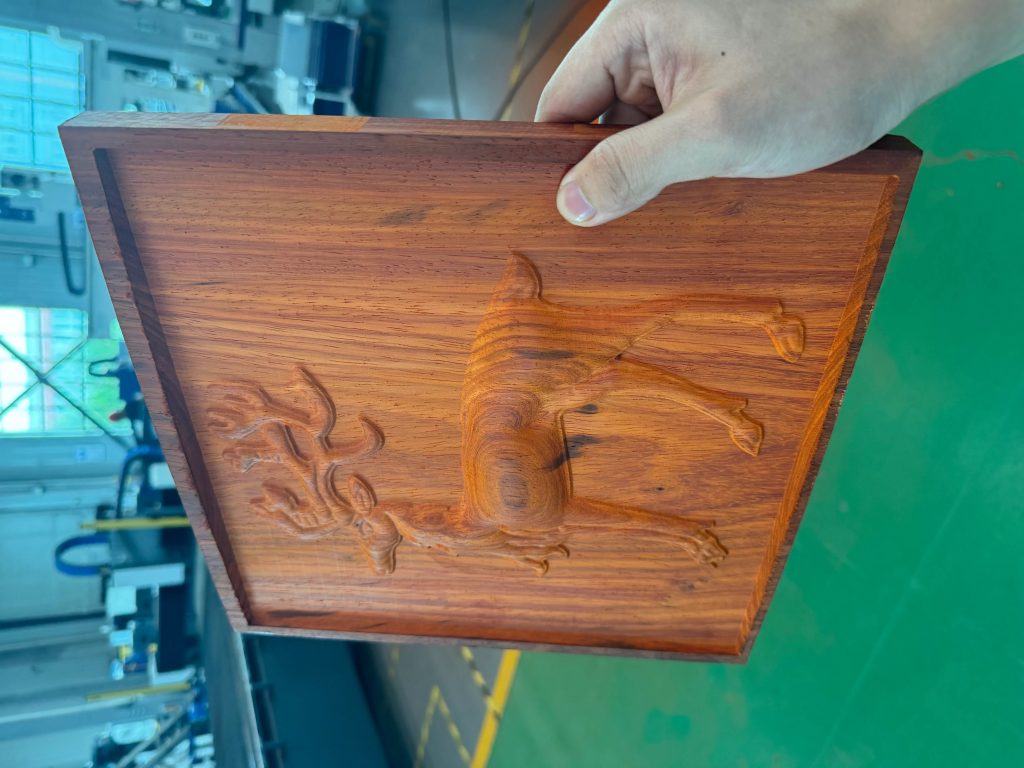

CNC Router Sample
The 6090 Mini CNC Router can achieve complex 3D relief effects and can accurately carve out various layers and details. It can be used to carve portraits, landscape patterns, animal shapes, etc., and the relief effects are lifelike.

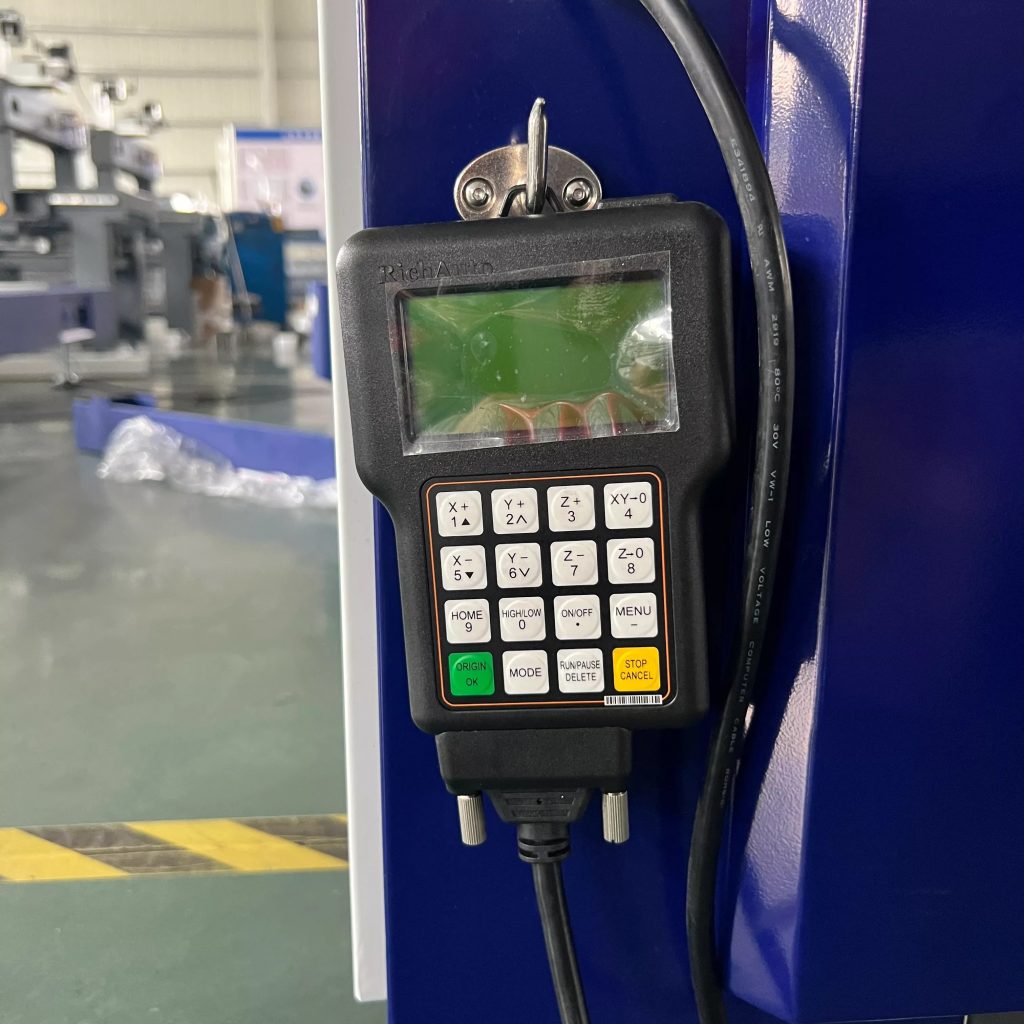

DSP System
Support offline operation. After importing the processing file, the engraving machine can be operated completely without the computer. The operation of the engraving machine can be directly controlled by the handle or the power box.

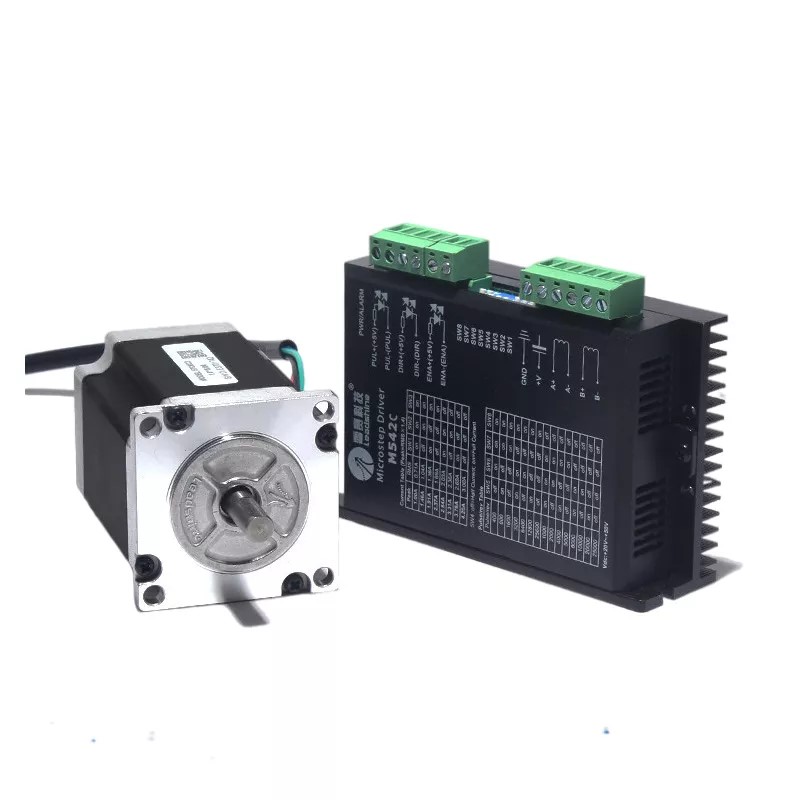

Motor and Drier
China local Step motors and lead-shinedrivers, which is very stable formachinelong time working.

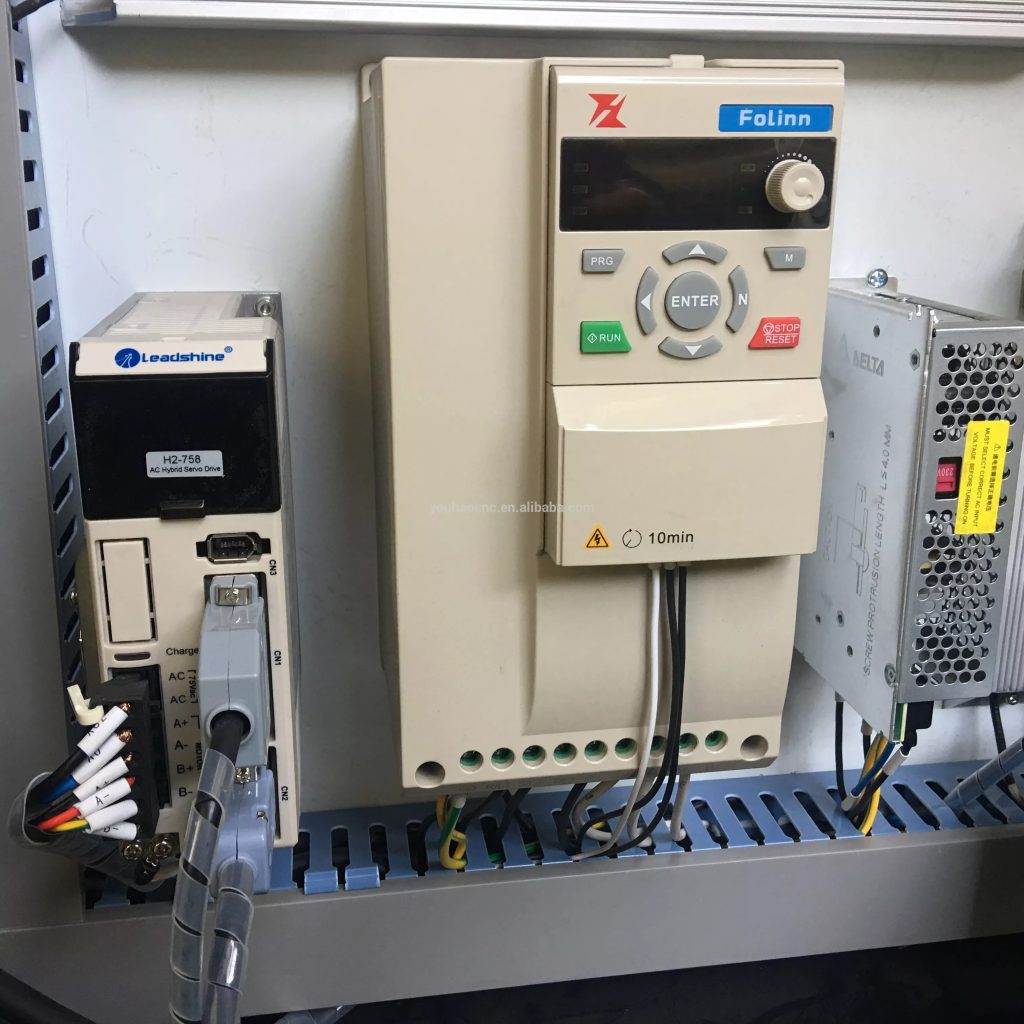

Inverter
Folinn inverter can adjust the speed of the motor according toactual needs, avoid excessive energy consumption, extend theservice life of the motor, and reduce the noise and vibration inthe operation of the motor.
Advantage
- Compactness: The 6090 small CNC router machine is small in size and suitable for placement on a workbench or table, taking up little space, making it ideal for a home studio or small commercial space.
- Portability: Its portability makes the device easy to move and install, making it convenient to use in different locations.
- High precision: It uses high-quality guide rails and transmission systems, such as Taiwan HIWIN linear guides and TBI ball screws, to ensure high precision and efficiency.
- Stability: Cast iron or steel frame structure, providing a stable processing platform and reducing vibration
