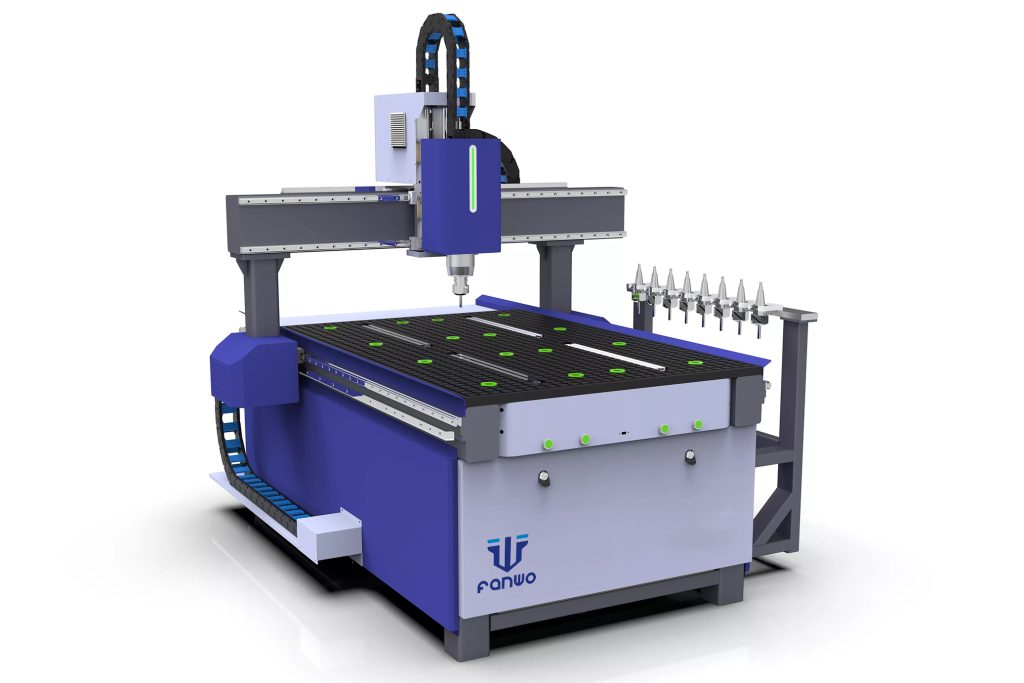

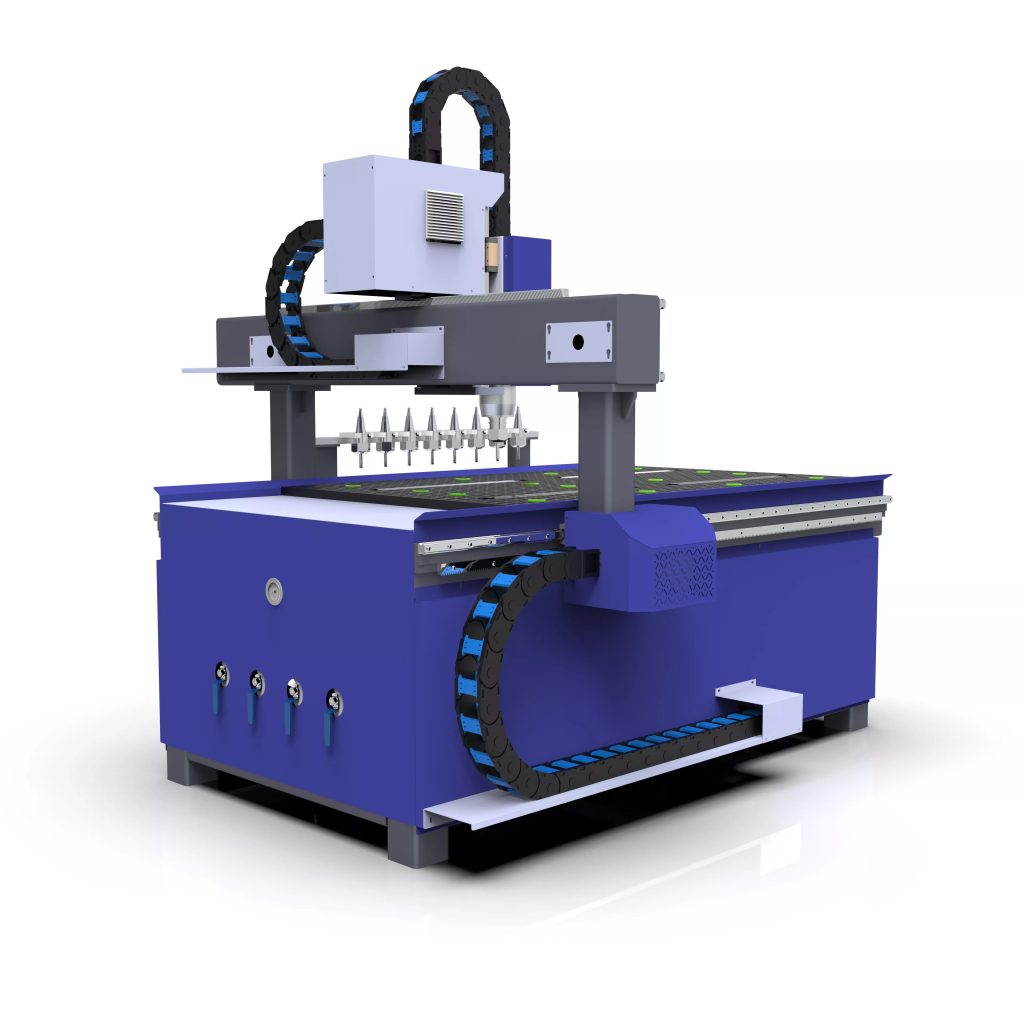

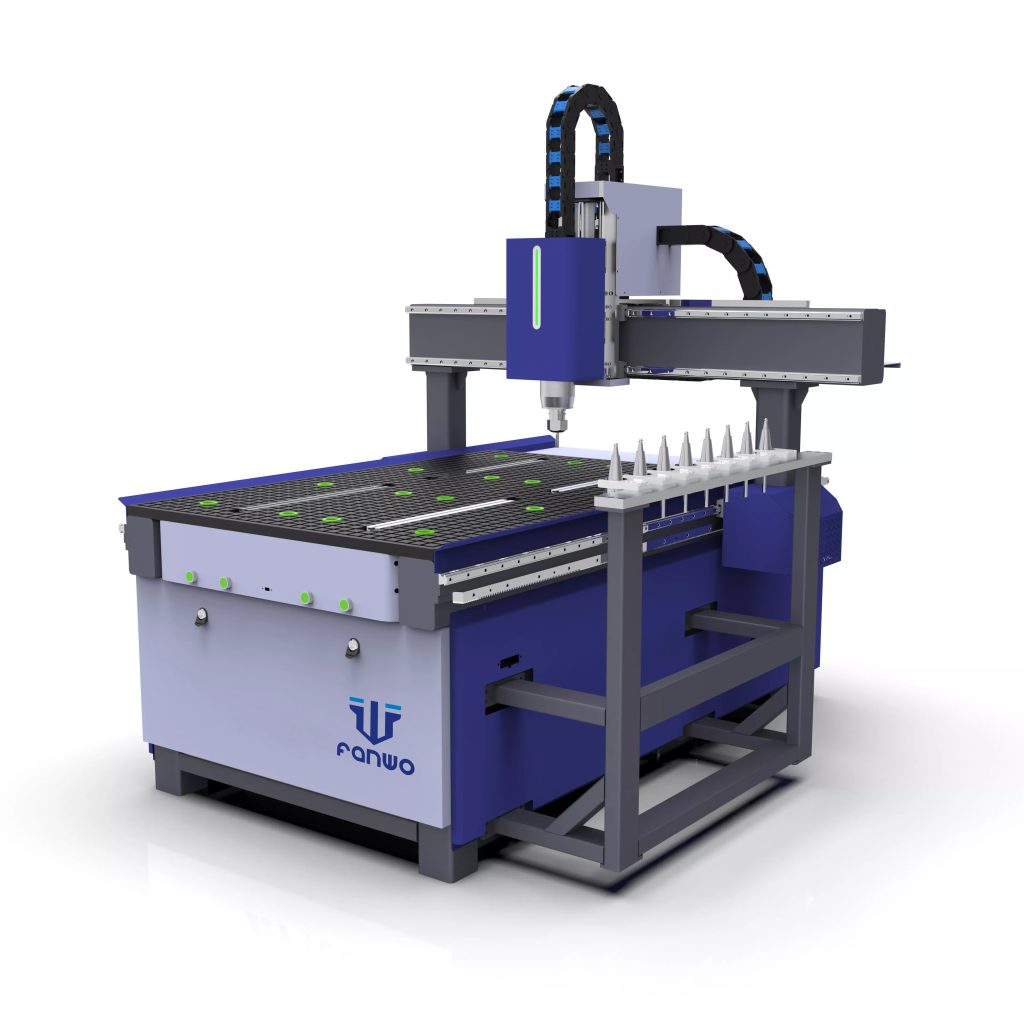

Models: 6090 Small ATC CNC Router
Application: Wood, seal, acrylic, copper and aluminum metal, and mold processing.
Lead time: 18 days
Certificate: CE, ISO
Voltage: 380V/3P/50HZ, 220V/3P/50HZ. 110V/3P/50HZ
Size: 6090, 6012, 6015 (Size Can be customized)
Warranty: 1 years
Supply Ability: 30 Sets/Month
Youhaocnc also has 3-axis, 4-axis, and 5-axis standard models and can also provide customized solutions according to user needs.
Model: T6ATC
| item | value |
| Condition | New |
| Range of Spindle Speed (r.p.m.) | 0 rpm – 18000 rpm |
| Positioning Accuracy (mm) | 0.02 mm |
| No. of Spindles | Single |
| Working Table Size (mm) | 600×900/600×1200/600×1500 |
| Machine Type | ATC CNC Router |
| Travel (X Axis) (mm) | 600 mm |
| Travel (Y Axis) (mm) | 900 mm |
| Repeatability (X/Y/Z) (mm) | 0.01 mm |
| Spindle Motor Power (kW) | 3.2 kW |
| Key Selling Points | Easy to Operate |
| Local Service Location | United States, France |
| After Warranty Service | Video technical support, Online support, Spare parts |
| Showroom Location | France |
| Applicable Industries | Building Material Shops, Construction works , Other, Advertising Company |
| Marketing Type | New Product 2024 |
| Machinery Test Report | Provided |
| Video outgoing-inspection | Provided |
| Warranty of core components | 1 Year |
| Core Components | Motor, Pump |
| Product name | 6090 MINI Small ATC cnc router machine |
| Application | wood and aluminum cutting and engraving |
| Inverter | Folin inverter |
| Spindle | Air-Cooled Spindle |
| 6 Control system | DSP A11 Control System |
| Working area | 600×900 mm (can be customized) |
| Table Surface | Vacuum Combined T-slot Table |
| Motor | Stepper Motor |
| Color | can be customized |
| Tool magazine | customized |

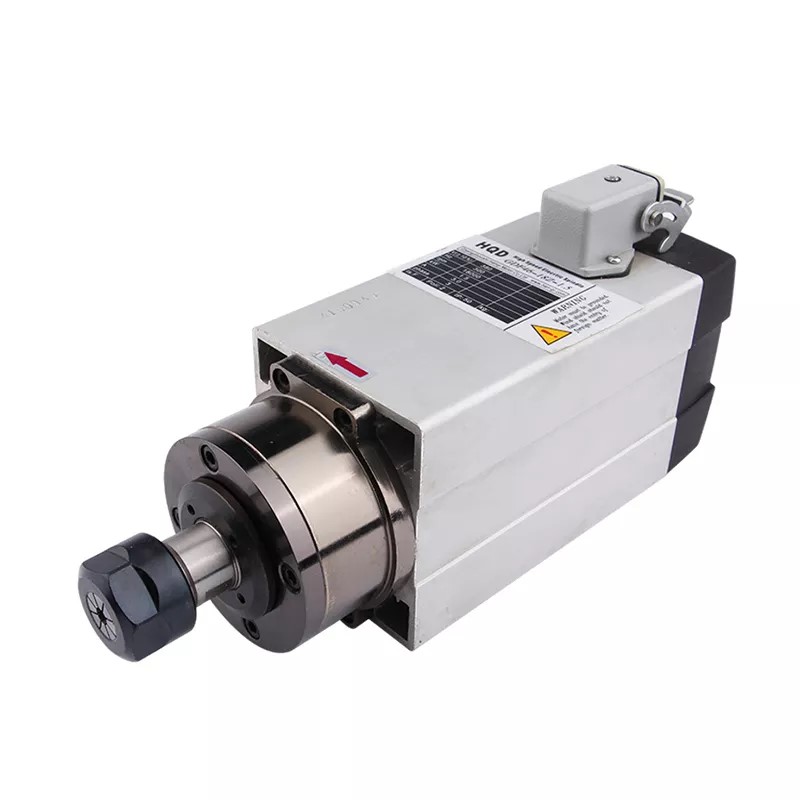

Air-Cooled Spindle
The air-cooled spindle does not require a complex water circulation system and cooling water tank, and the structure is relatively simple. It does not need to connect external equipment such as water pumps and water tanks, making it easier to install and use, and it starts quickly, so it can be put into operation quickly.

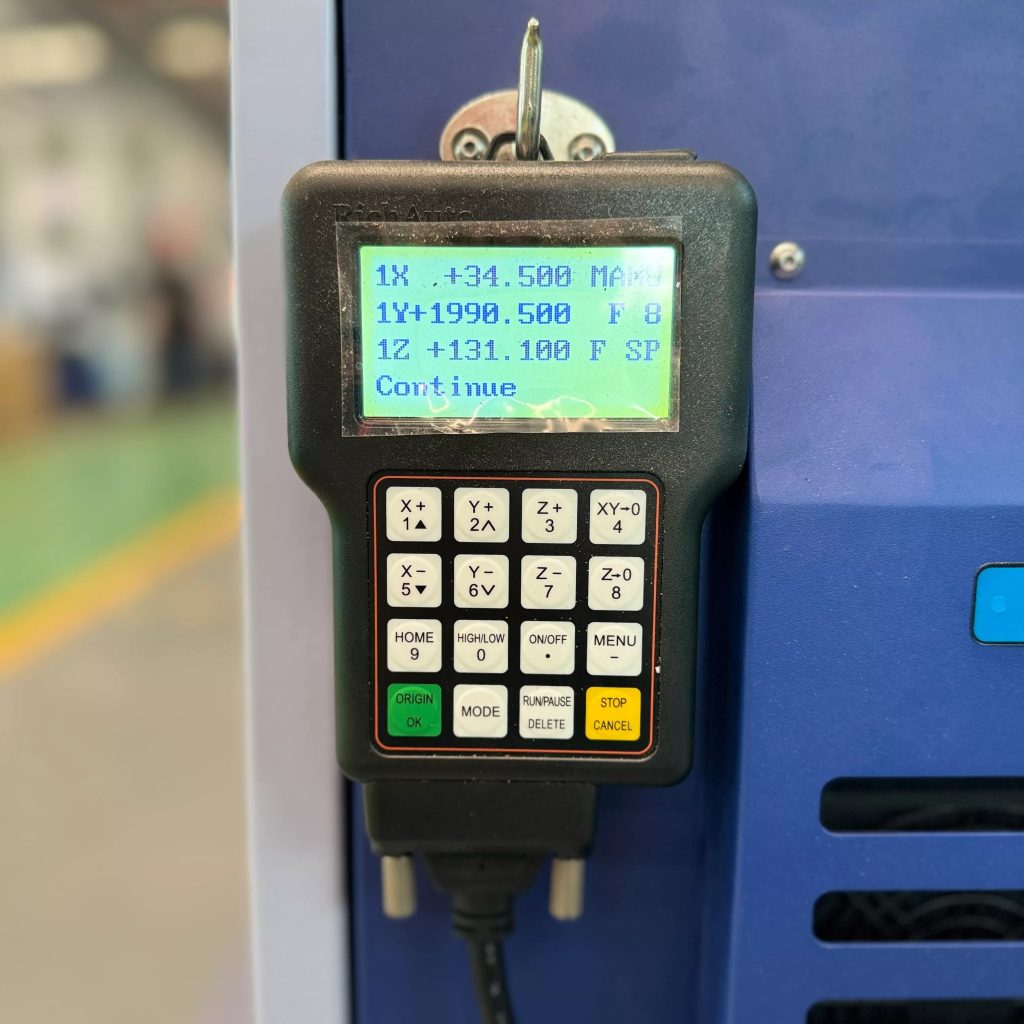

System
The March3 system adopted by Youhao is simple to operate and maintain, and it is open, stable in performance, and easy to maintain. Users who have high requirements for ease of operation and cost control can choose this.

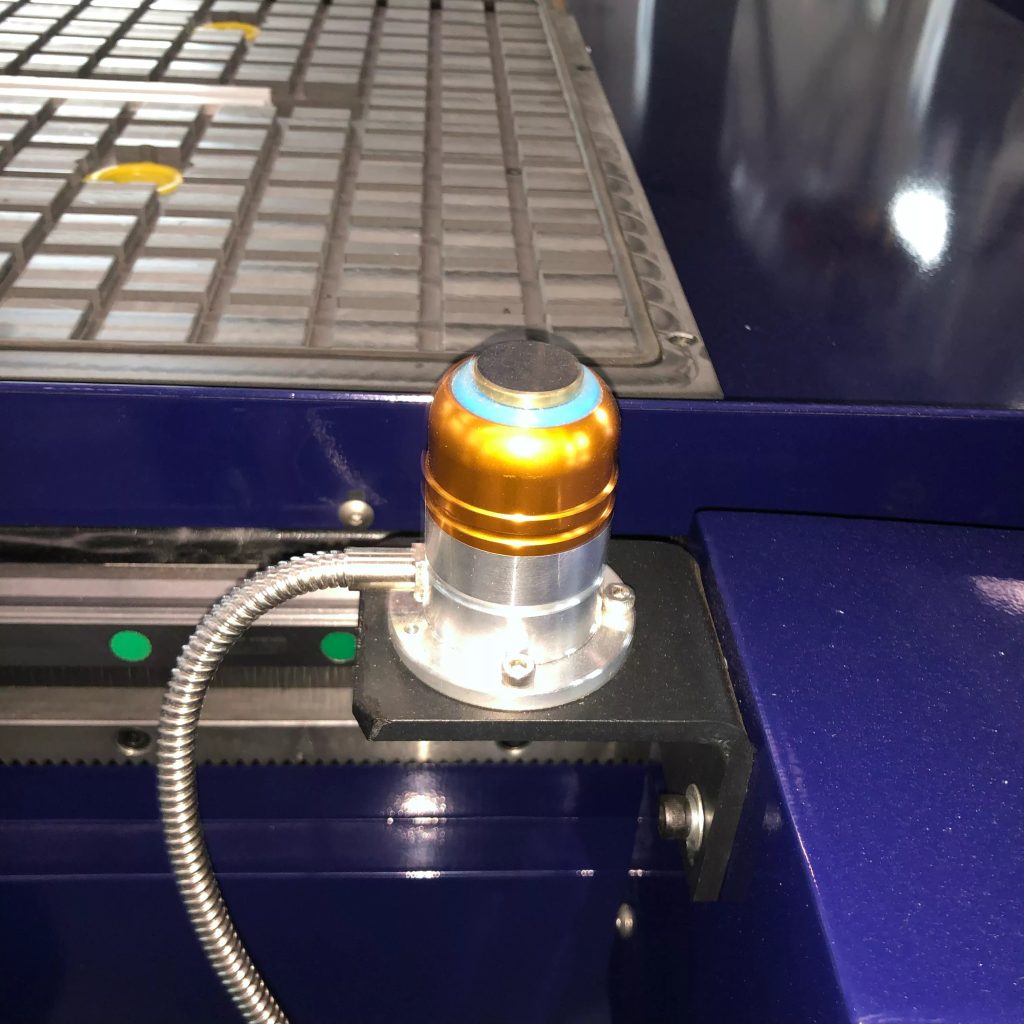

Tool sensor
The engraving machine tool setting instrument is important auxiliary equipment in CNC engraving machines. It is mainly used to accurately measure and adjust the position and size of the tool to ensure the accuracy and quality of engraving processing and achieve fast and accurate processing.

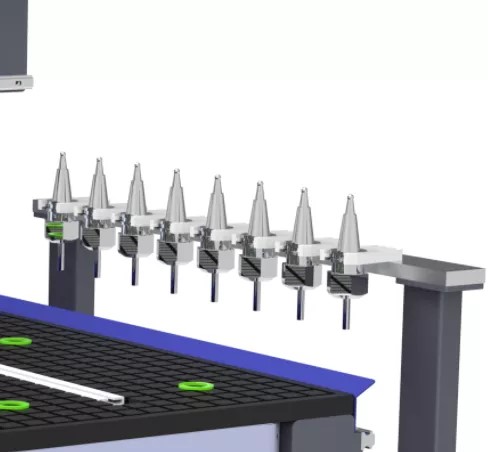

Automatic tool change
Equipped with various types of tool magazines, such as the linear tool magazine, carousel tool magazine, linear tool magazine under the gantry, etc. The tool magazine capacity ranges from a few tools to dozens of tools, which can meet the multi-process processing needs of complex parts.

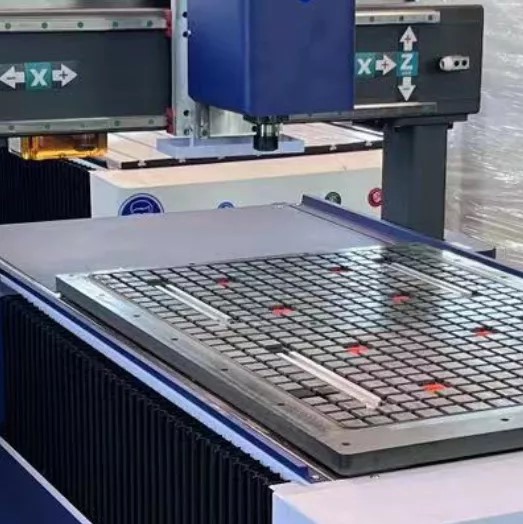

Working Table
There are multiple adsorption holes on the vacuum adsorption table. After the material is placed on the table, the vacuum pump is started and the material is firmly adsorbed. Use clamps or screws to fix the material on the table. The table is made of aluminum profiles and usually has T-slots for installing clamps.

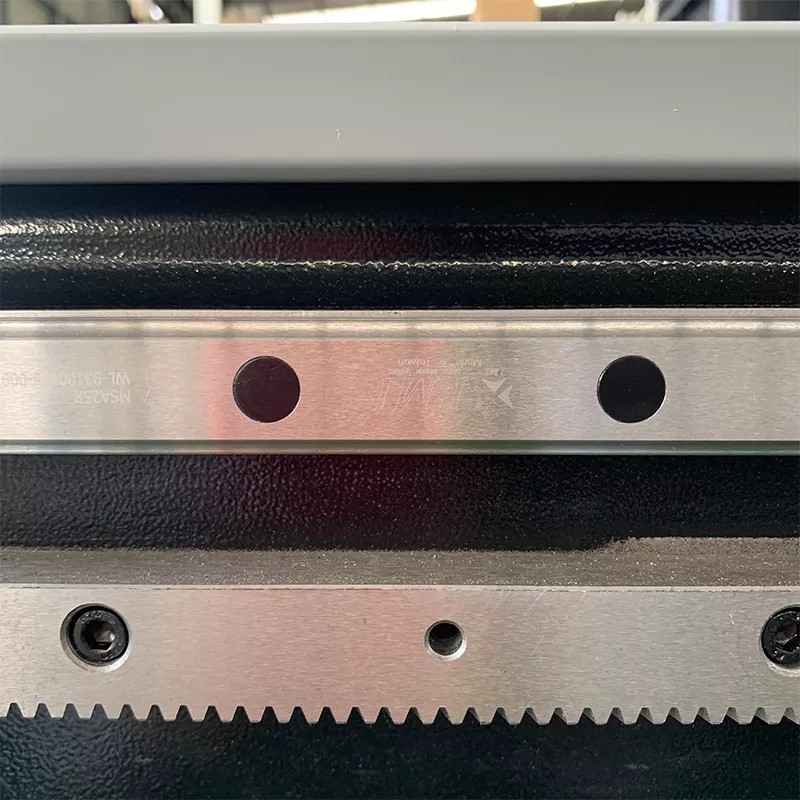

HIWIN Rails
It uses imported Taiwan HIWN linear guide rails with high precision, large load-bearing redundancy, and long service life.
