| Bed | Heavy duty steel frame |
| Working range | 6000*650*350 mm,B axis± 90° |
| Electric spindle | HQD 9kw air cooling automatic tool change spindle, 24000 rpm |
| Control system | TAIWAN LNC MW2600 controller |
| Drive motor | Leadshine 1500W servo motor with Japanese shimpo reducer, the fourth axis 2000W Leadshine servo motor |
| Rail | Taiwan HWIN30/25/25 |
| Rack and screw | 1.5M crescent and TBI screw |
| Inverter | Fuling 11KW inverter |
| Table | aluminium panel table with sink tank |
| Lubrication | automatic lubrication and automatic oil separation |
| Power supply voltage | 380V/3Ph/50Hz |
| Tool changer magazines | 8 automatic tool changer magazines |
| Autonics proximity switches, Sch neider electrical components, AirTAC cylinders, high-flex shielded wires | |

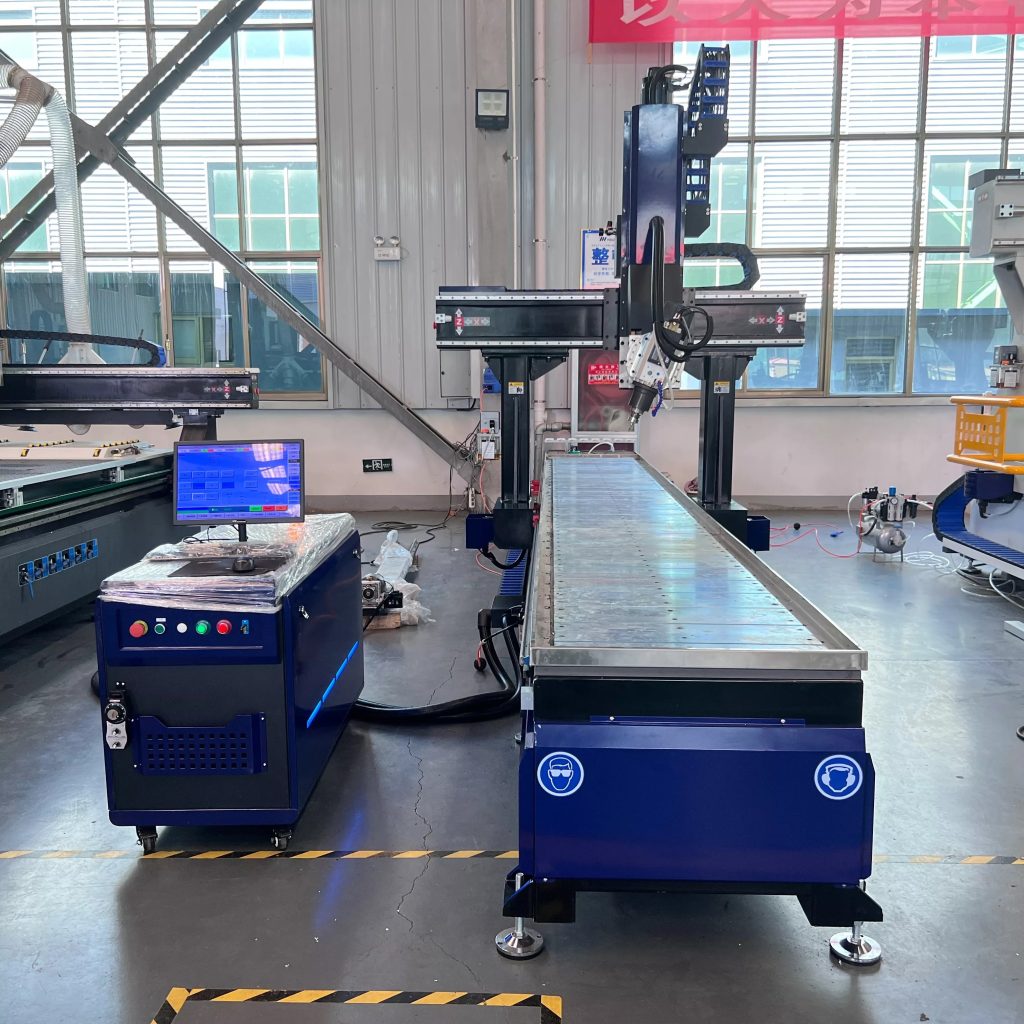

Our customer use this kind machine work on metal sheet and aluminium profile. The spindle can swing ±90°. It can drill many kinds of holes. If you have other mould making work. It also can process.

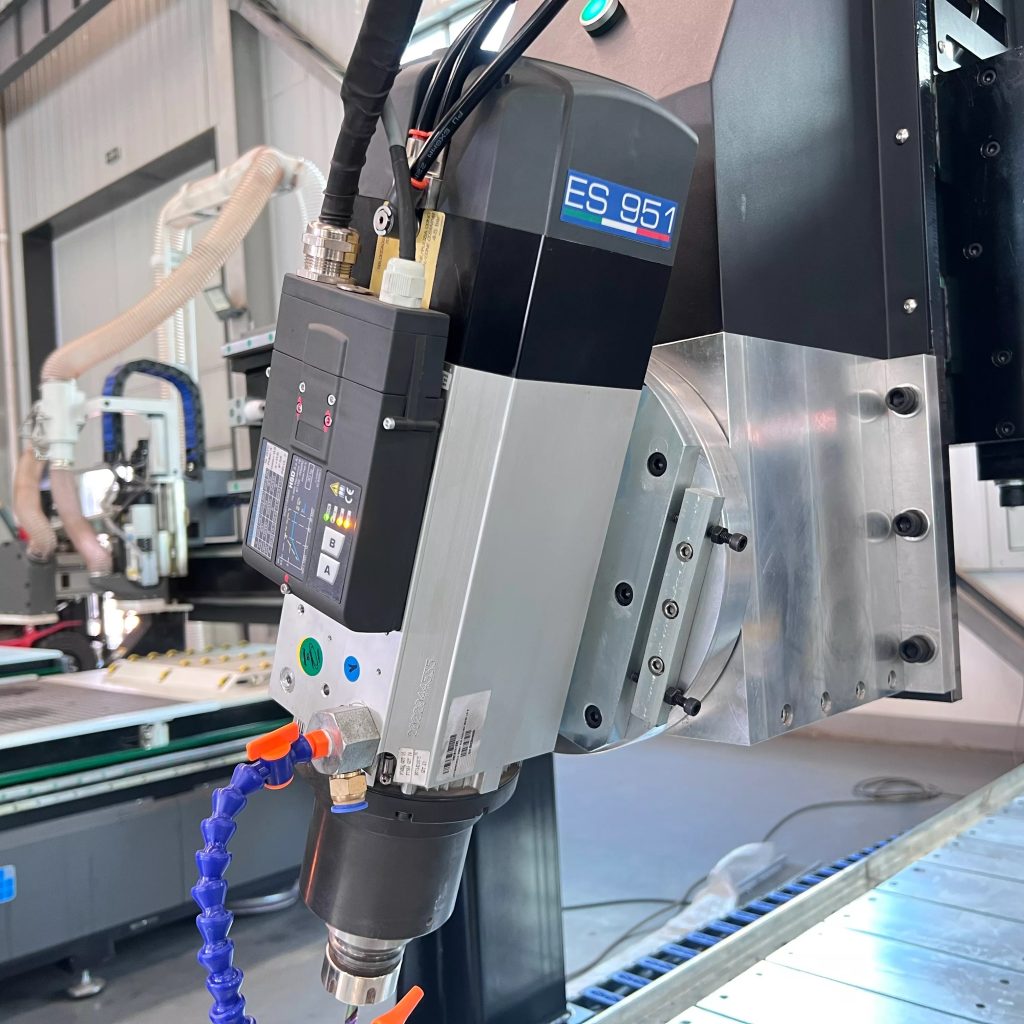

The swing head uses a famous Chinese brand. High strength and long lifetime using. It can rotate 180°. If you want to drill side holes. It is easy. It is multifunctional.
Controller System

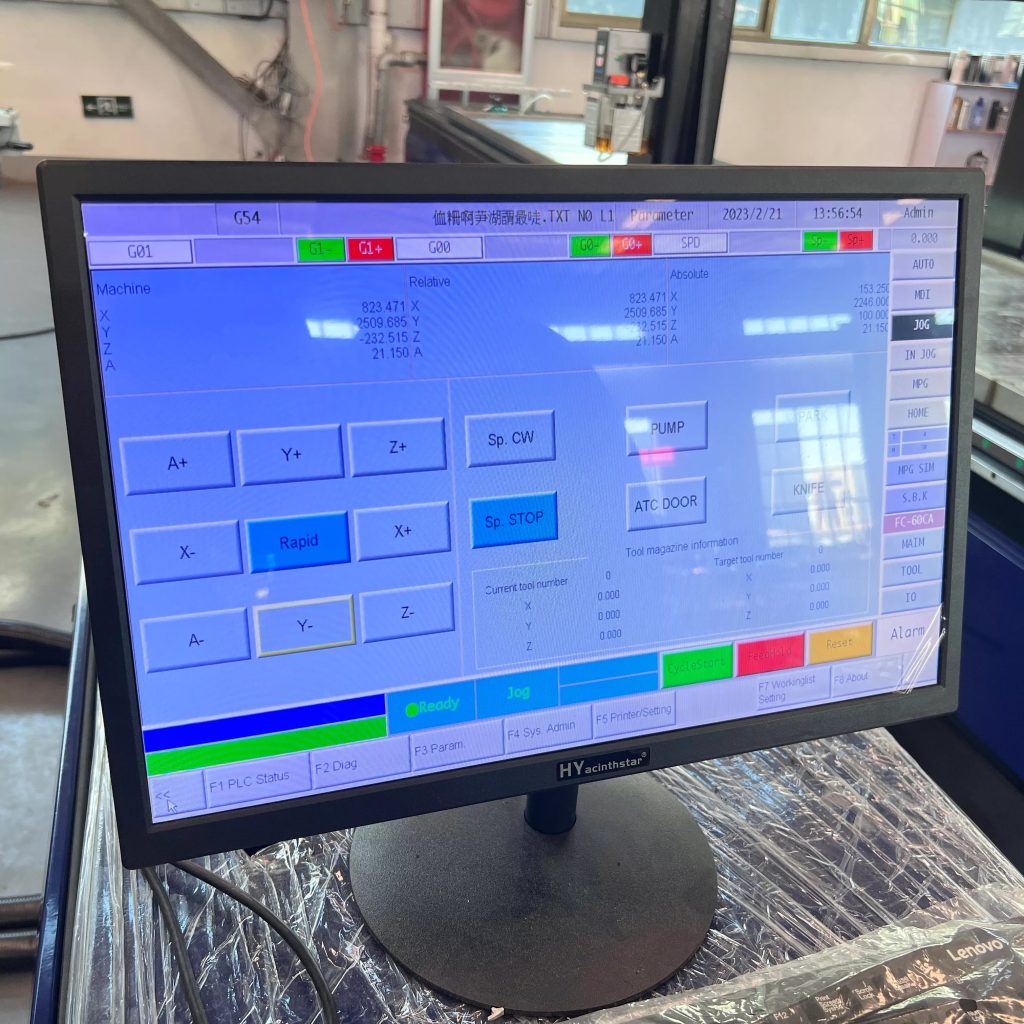

The TAIWAN LNC MW2600 controller is equipped with a 19LD SCREEN; you can process easily and set all data easily and clearly.

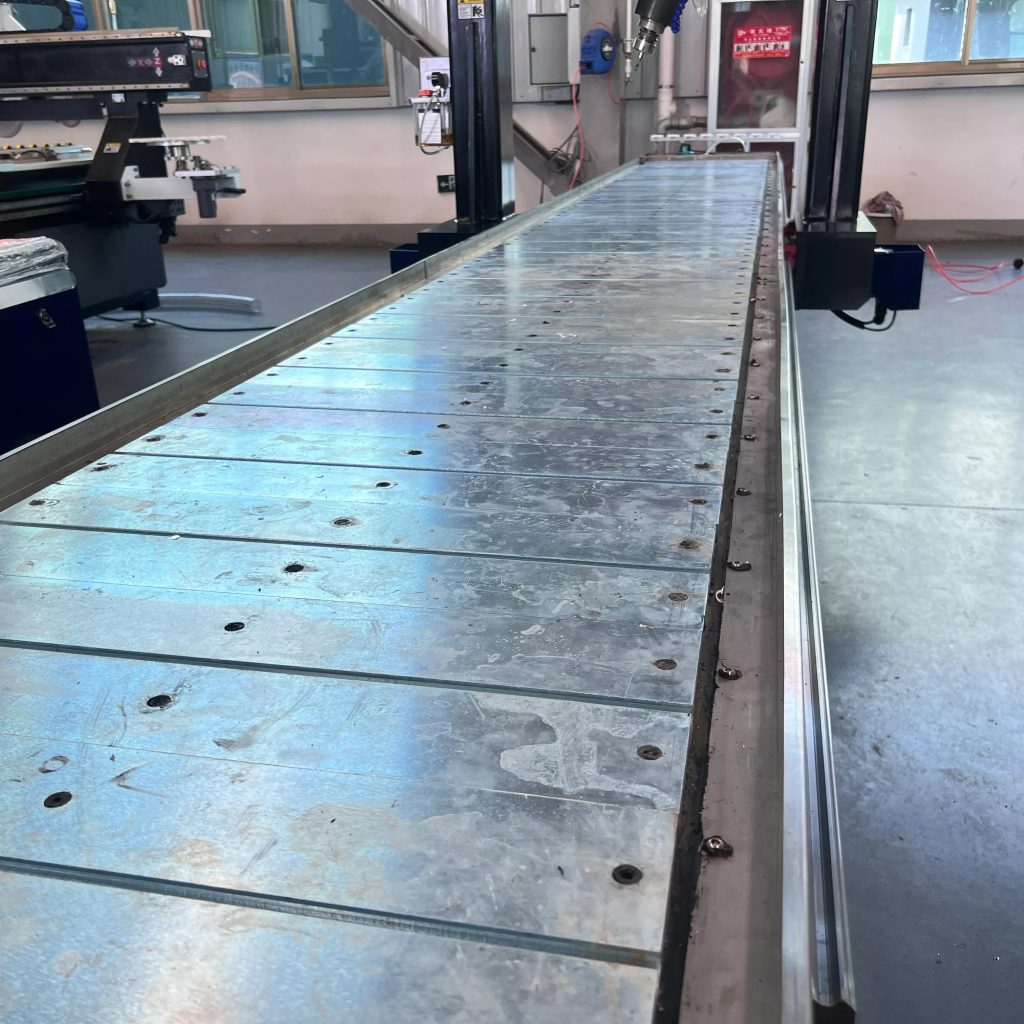

The table surface adopts an aluminum plate. Very strong and stable with our deformation. We also customize profile clamps for our customer.

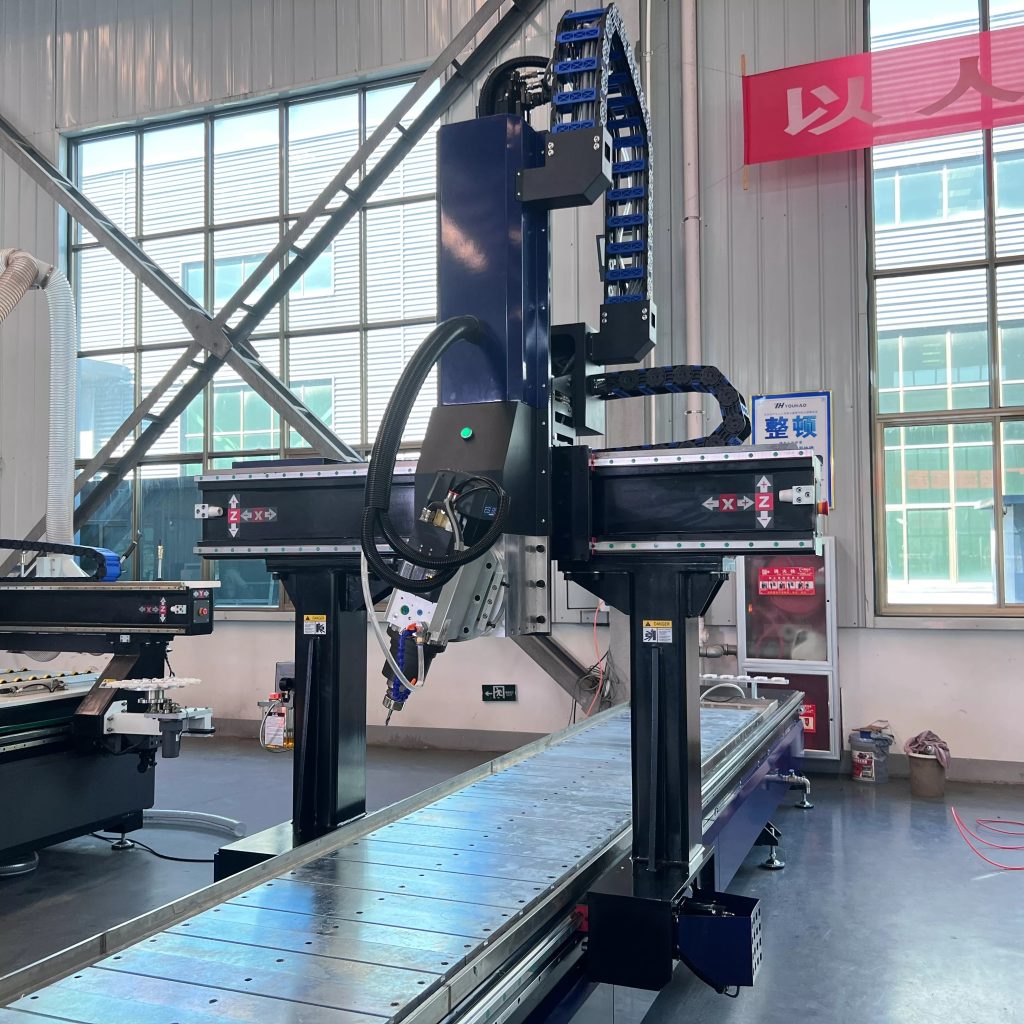

The feeding height is high; it is customized according to your profile height, but our design is reasonable. The gantry will not shake when the machine is processed at a high speed.

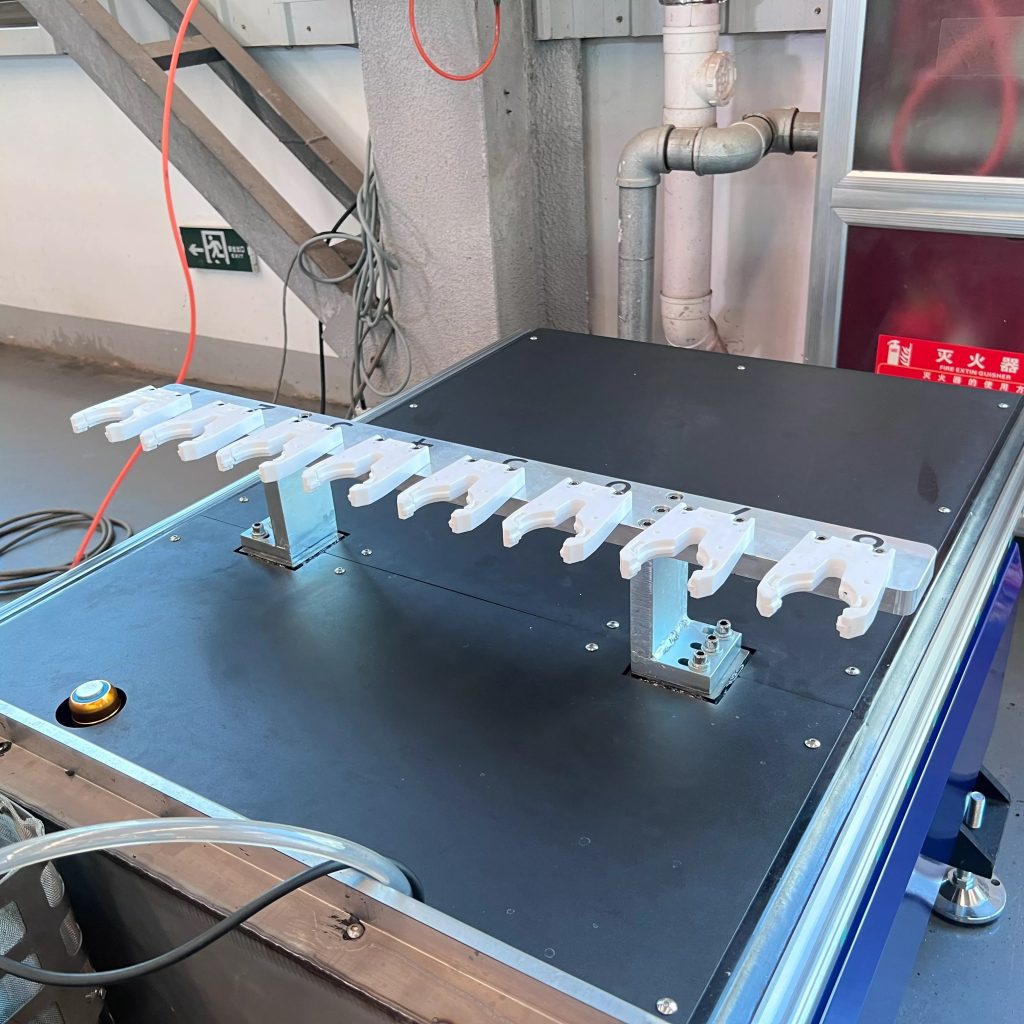

Linear tool magazine
8 automatic tool changer magazines. You don’t need to change tools frequently; you only need to set all the data in the system. So it is very easy.
