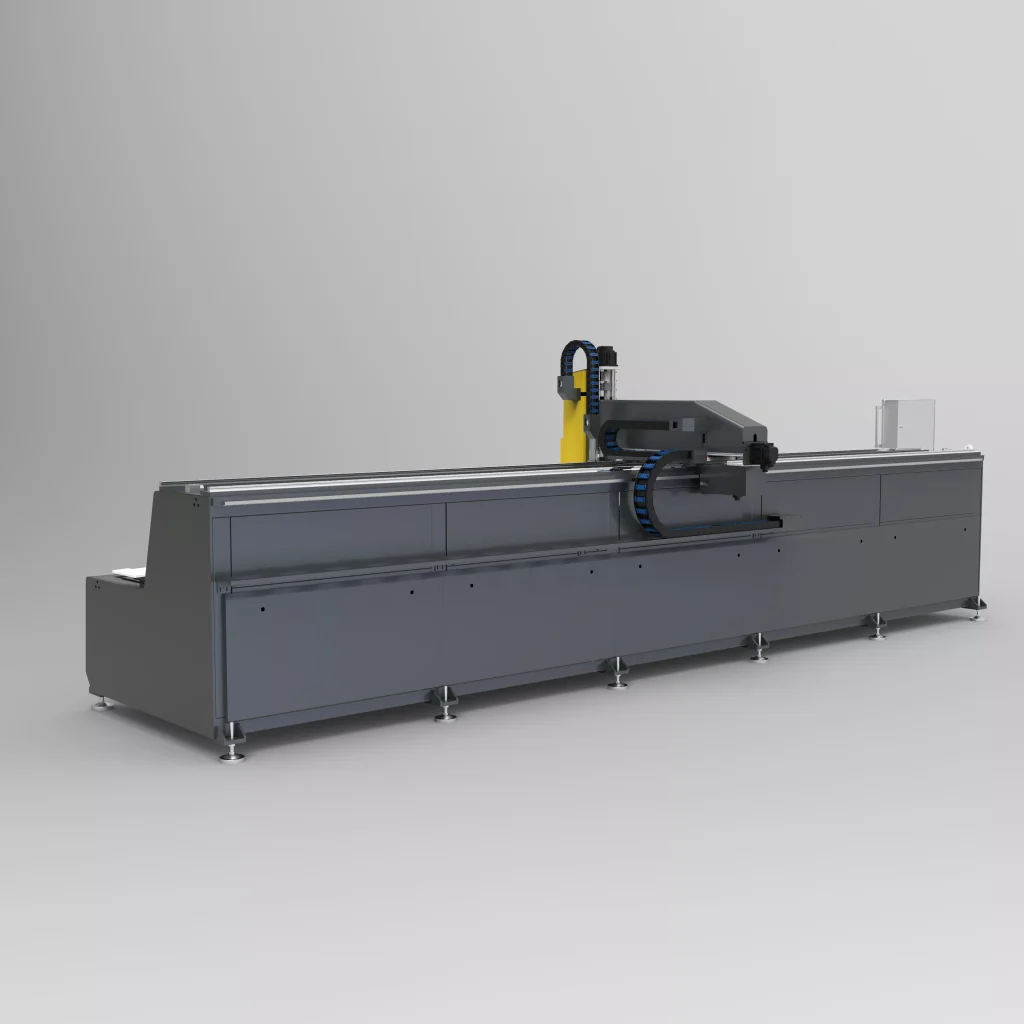

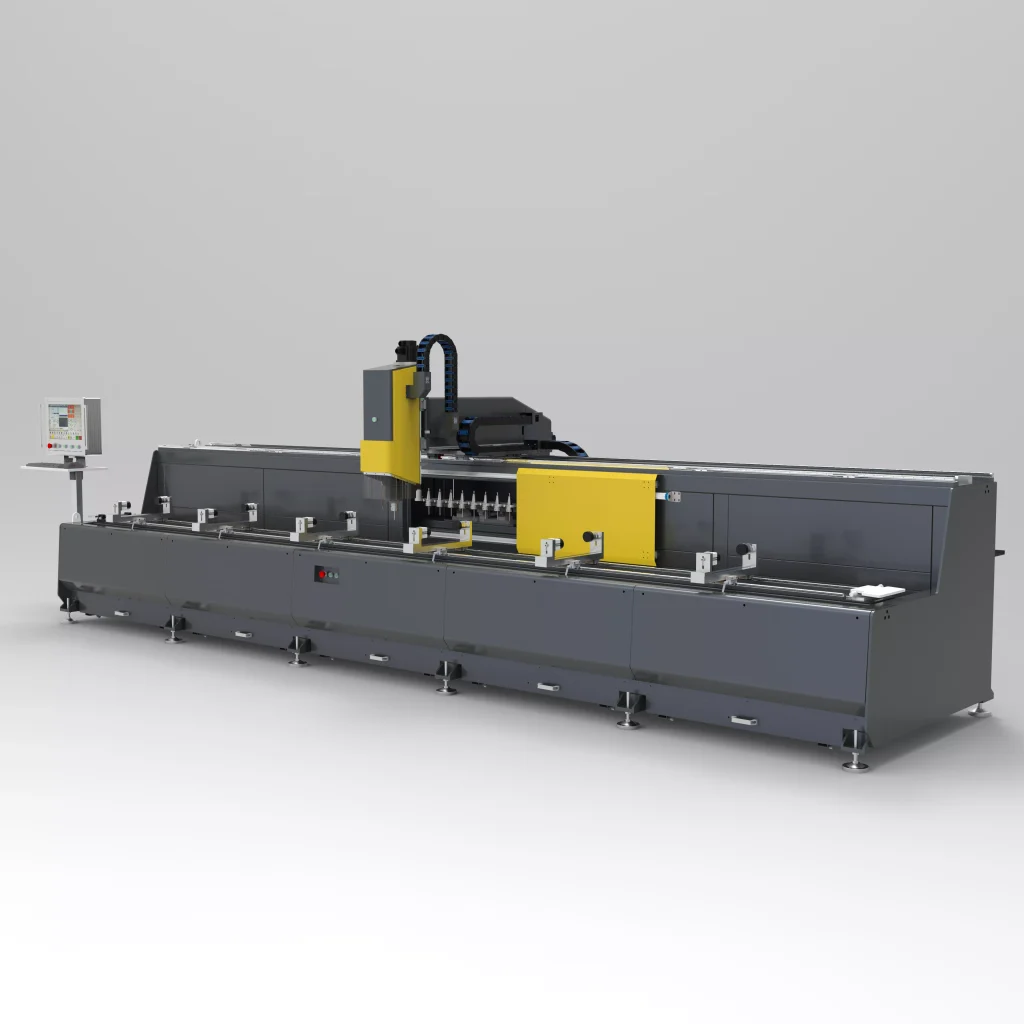

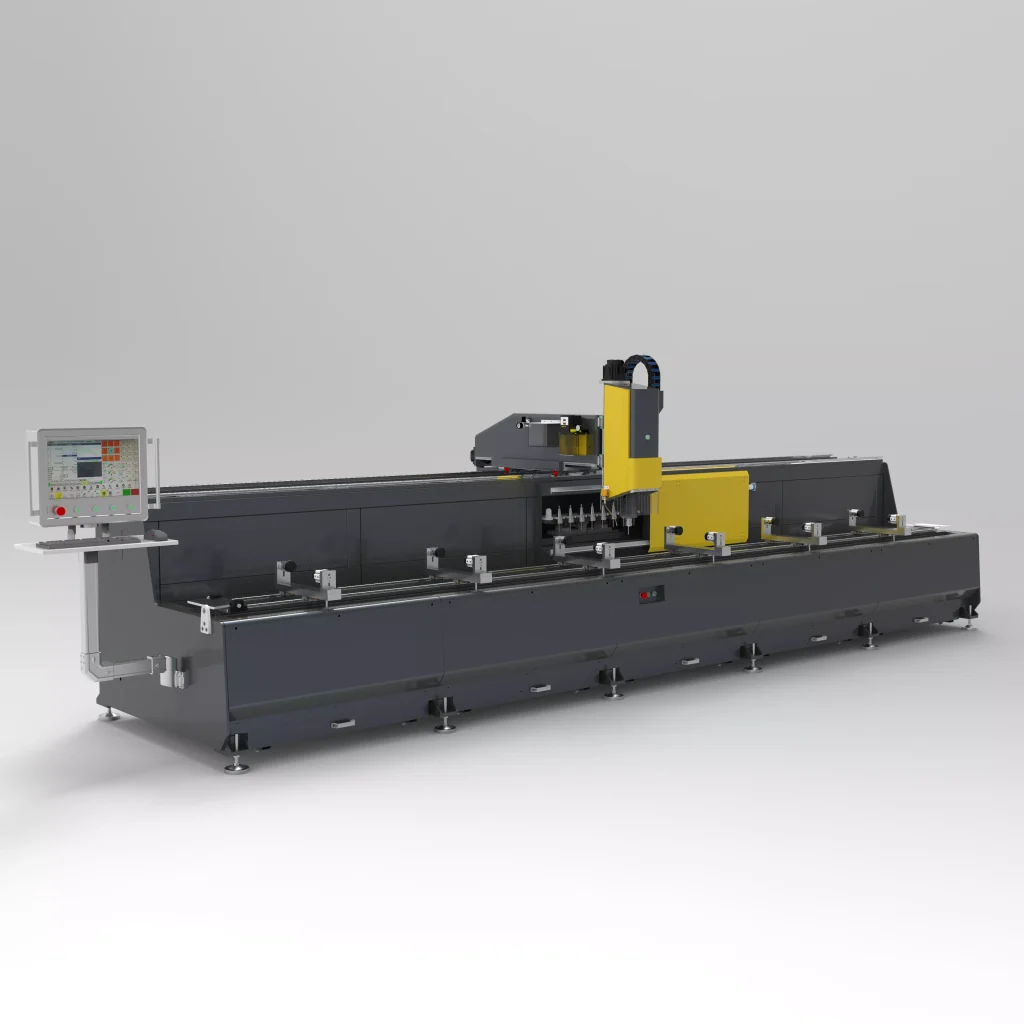

A9-6000 ATC Drilling and Milling with Tapping
– CE certification
-Pneumatic clamps to fix the materials 10 pcs
-6000*400*350mm
-SYNTEC control system
-9kw ATC air-cooling spindle, ISO30-Er32-24000rpm
-Machine with Tapping function
-WOLONG 11kw inverter
-LEADSHINE 1500W servo motor and driver
-Japan SHIMPO reducer
-Hidden linear auto tool change 8 slots
– HIWIN 30/25/25 square rails
-1.5M helical rack
– TAIWAN TBI 2505 ball screw
-M RICHEL oil Auto lubrication system
-Pneumatic positioning with manual brake
-Fully closed drag chain
-Autonics Auto tool sensor
-Heavy-duty, thicker machine bed
-Put the cabinet back of the machine
-Schneider Electric Cable by France
-Autonics homing and limited switches
-380V/3Ph/60Hz

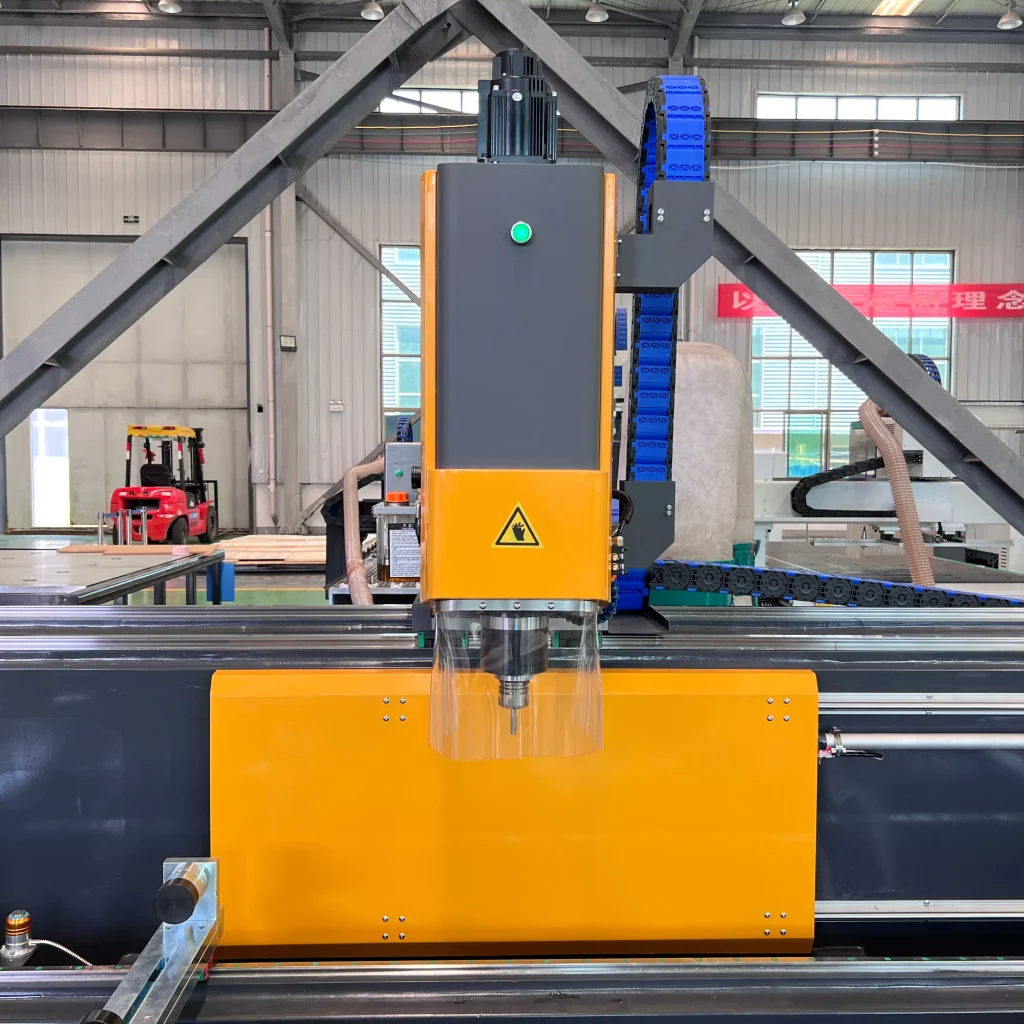

Constant Cooling Spindle
OLISPEED 9kw ATC air-cooling spindle, ISO30-Er32-24000rpm; the spindle is with a tapping function, which is sturdy and durable.

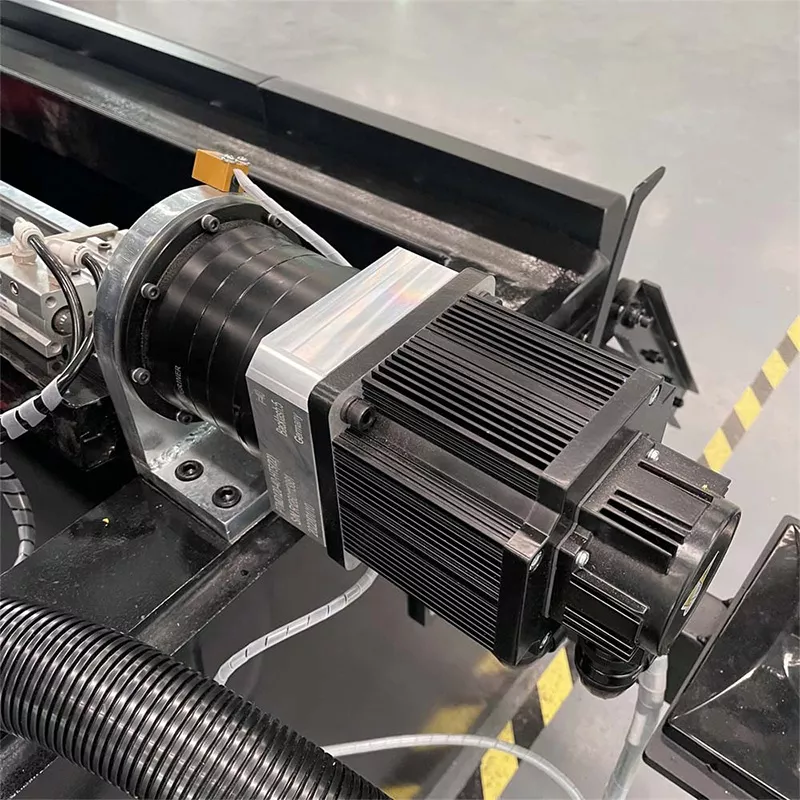

Servo Motor and Driver
Leadshine 1500W servo motor with Japanese Simpo reducer, the fourth axis harmonic. It has the characteristics of high speed, high precision, and high stability.

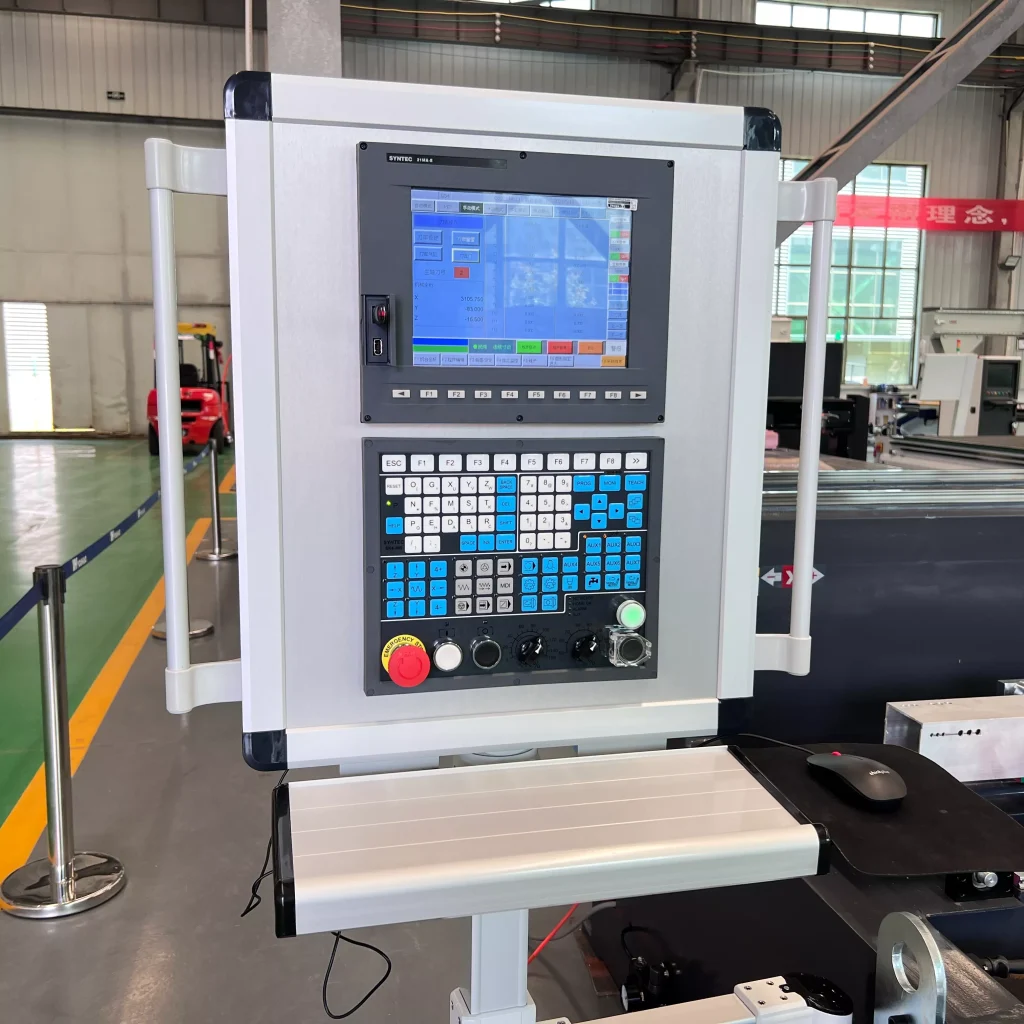

Controller System
Taiwan SYNTEC control system, The operation interface is relatively simple and easy to operate. It is convenient to call programs and edit parameters.
Working table
Pneumatic clamps to fix the materials (10 pcs) can clamp different aluminum profiles easily without manual adjustment, greatly saving time and providing high precision. We also can help you customize a rotated working table that can achieve three-sided processing.

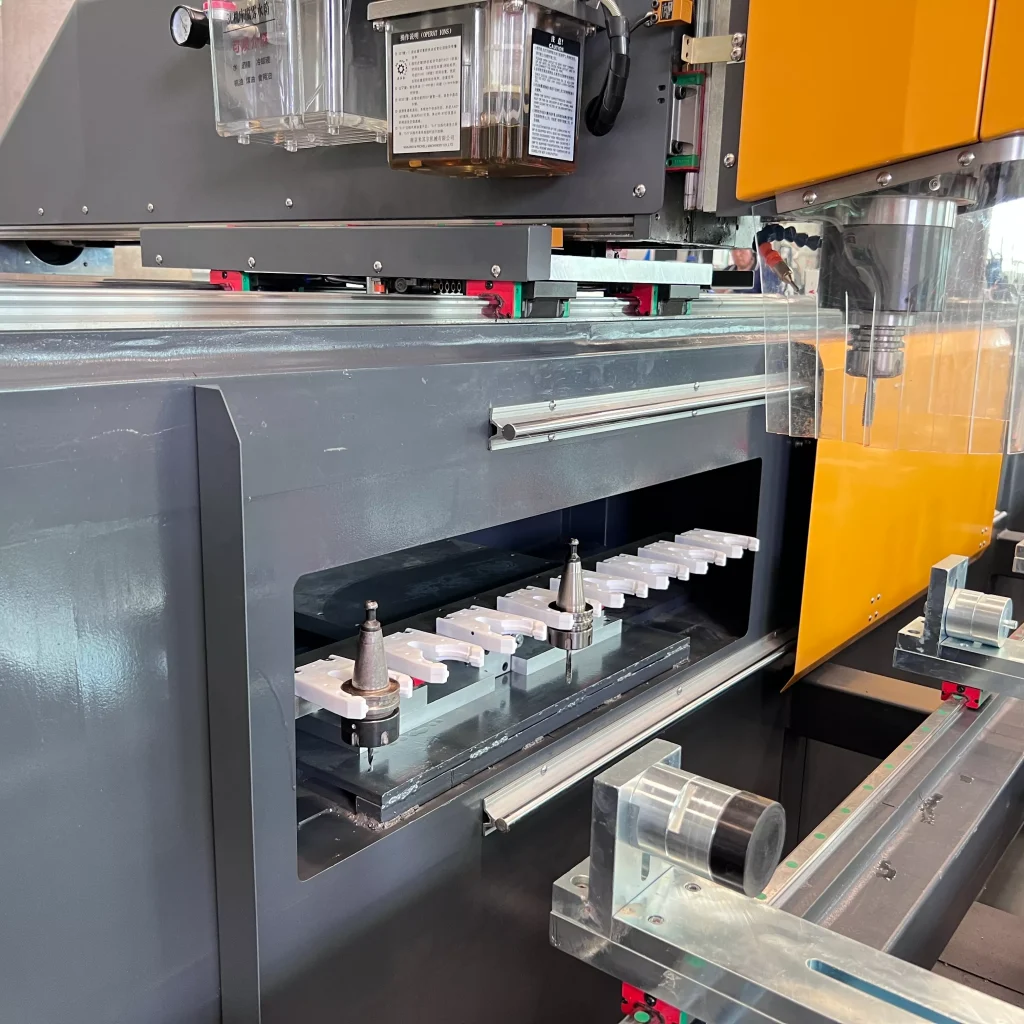

Linear Tool magazine
10-piece tool magazine. You don’t need to change tools frequently when processing different work.
